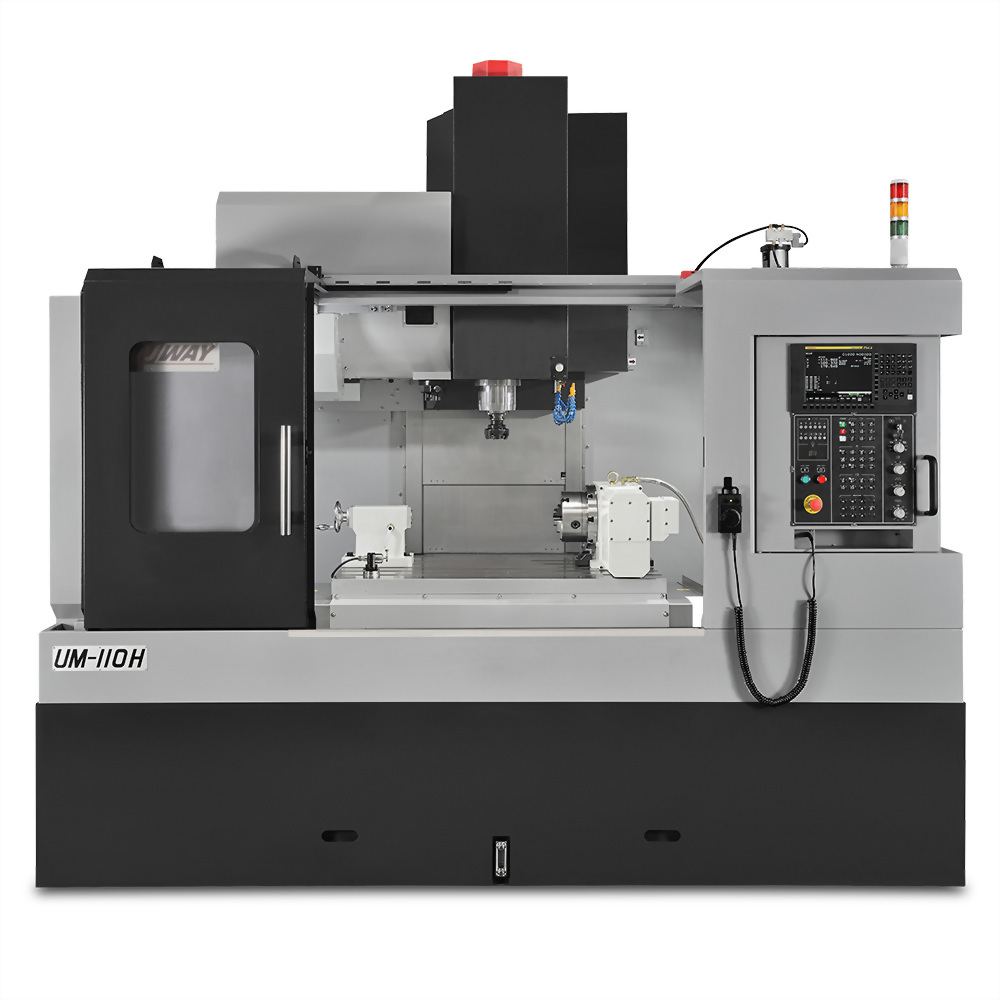

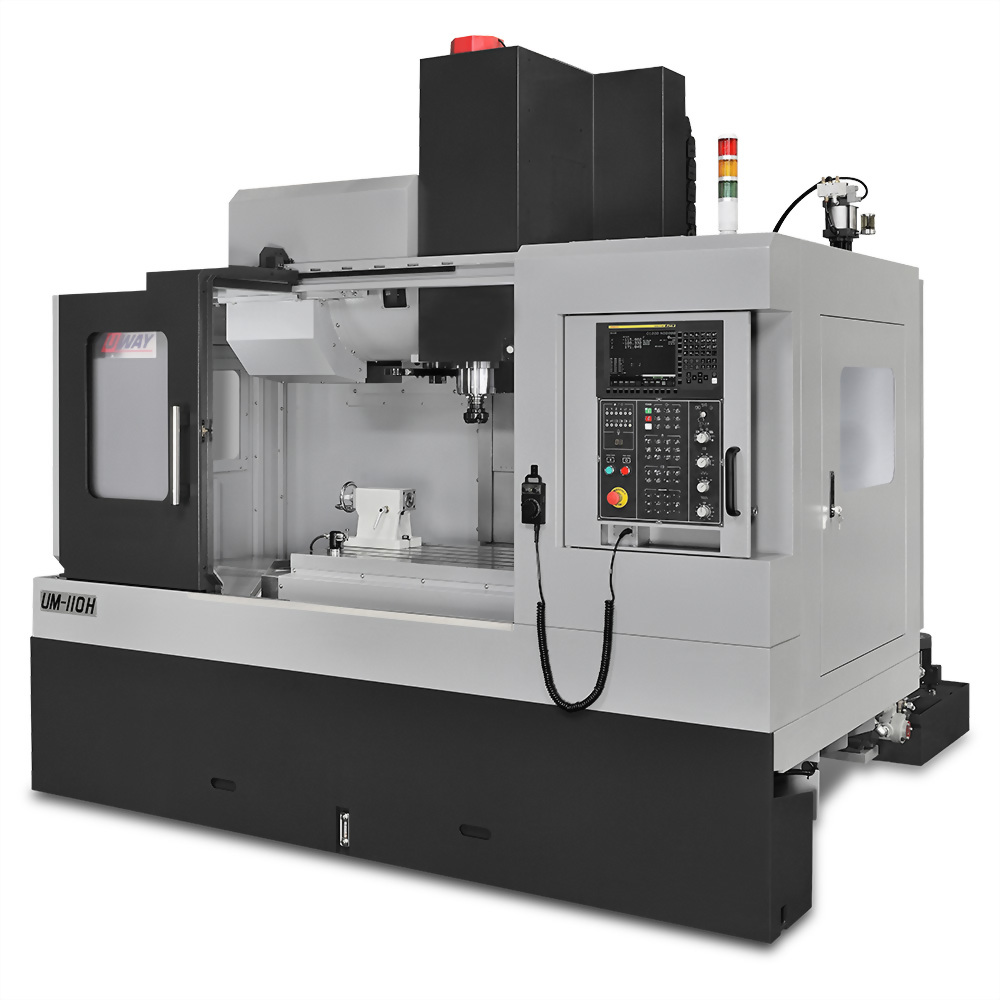

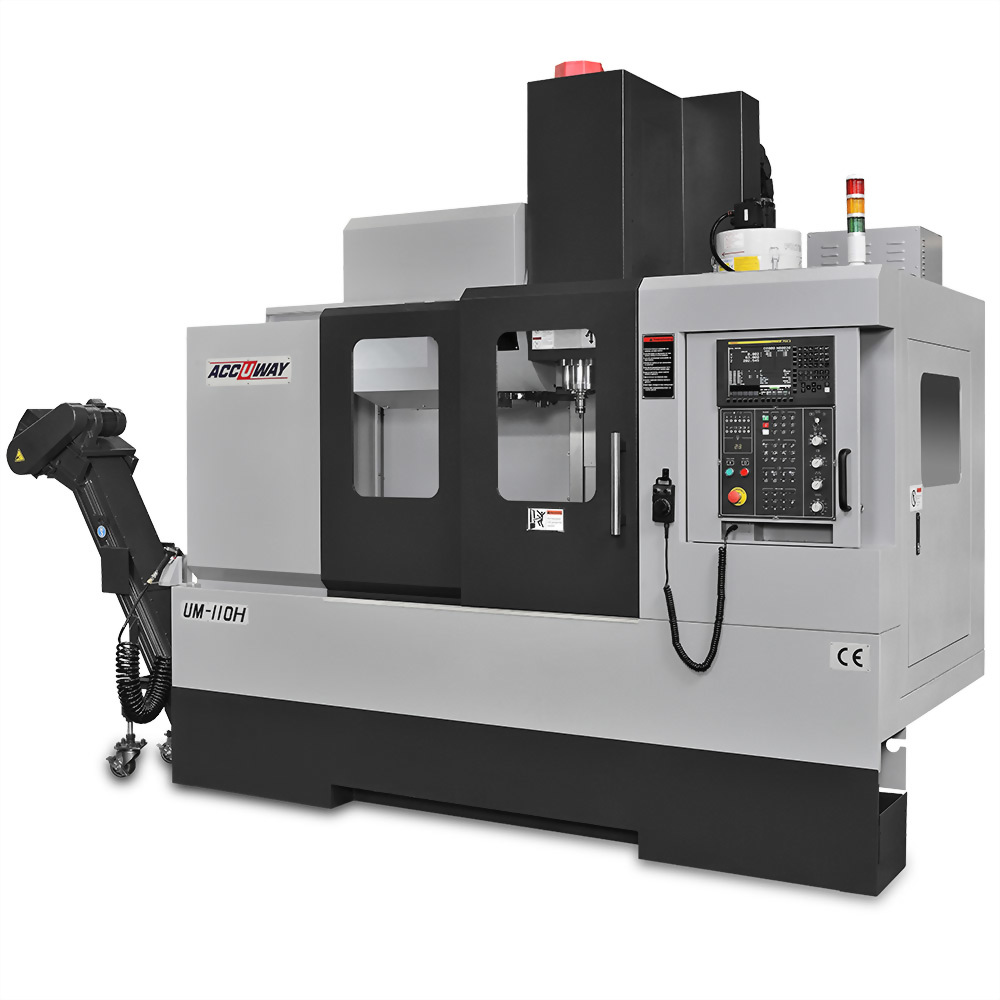

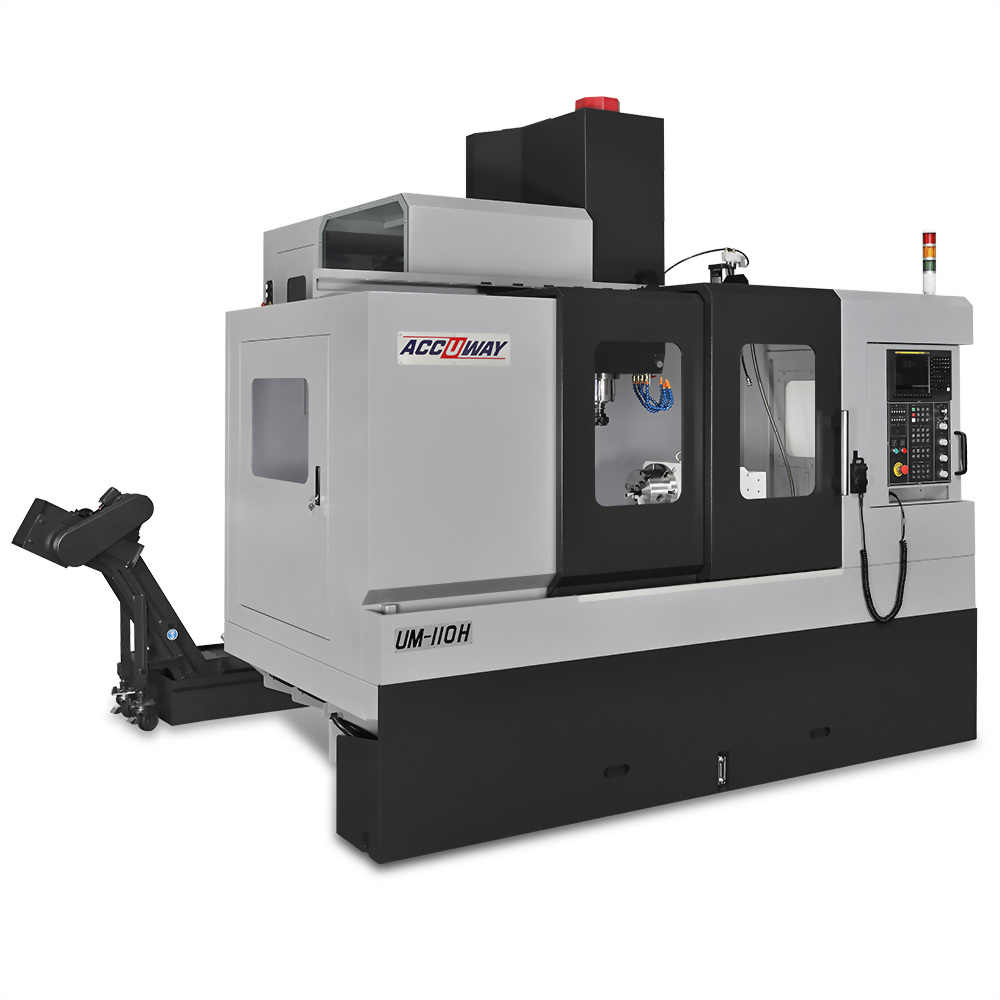

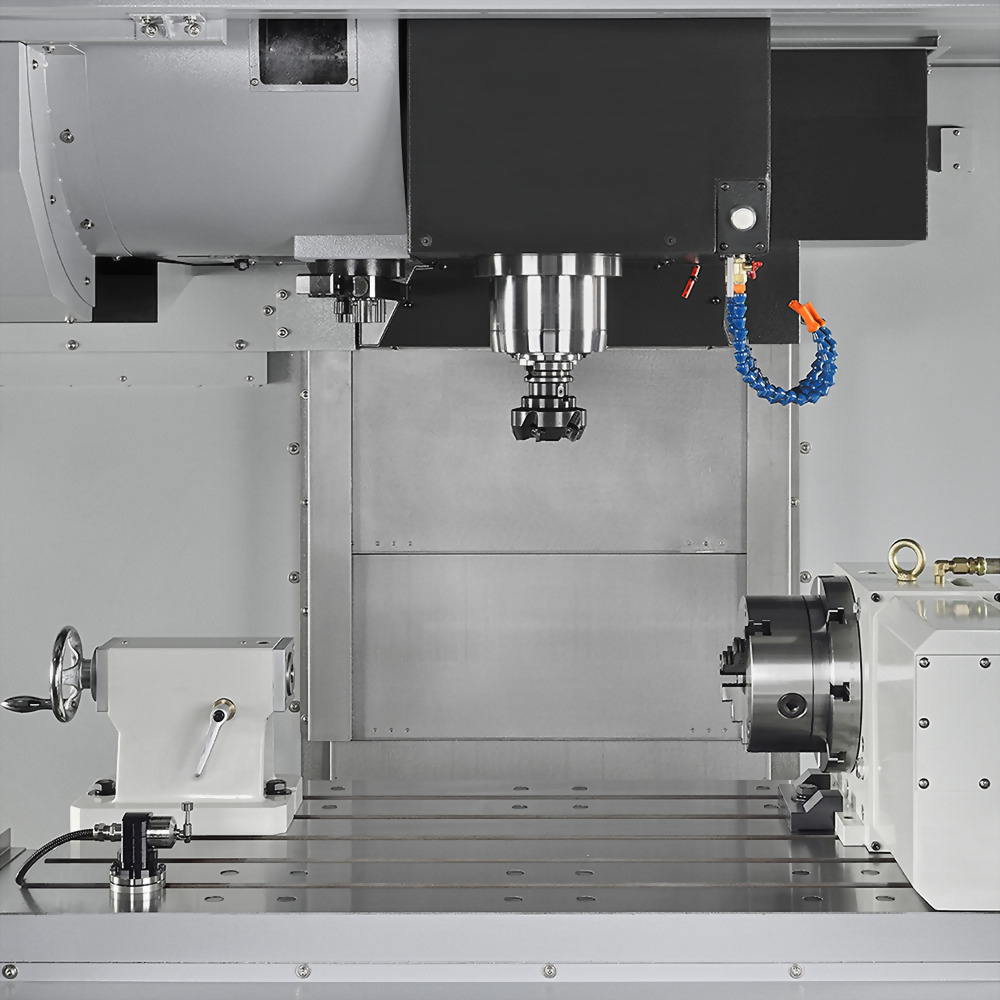

UM-110H
Vertical Machining Center
Vertical Machining Center
· 24-station, swing-arm automatic tool changer.
· Spindle speed 12000 / 15000 rpm
· Direct driven spindle design
· Table dimension: 1200 x 600 mm
· FANUC 0i-M controller with LCD monitor.
· Linear guides on all axis.
· 24-station, swing-arm automatic tool changer.
· Spindle speed 12000 / 15000 rpm
· Direct driven spindle design
· Table dimension: 1200 x 600 mm
· FANUC 0i-M controller with LCD monitor.
· Linear guides on all axis.
|
ITEM/MODEL | UM-110H | |
---|---|---|---|
|
Controller | FANUC 0i-M | |
|
SPINDLE | ||
|
Spindle speed | rpm | 12000(15000) |
|
Spindle nose taper | BT40 | |
|
Bearing inner diameter | mm | 70 |
|
Drive system | Direct | |
|
TRAVELS | ||
|
X-axis travel | mm | 1100 |
|
Y-axis travel | mm | 550 |
|
Z-axis travel | mm | 550 |
|
Spindle nose to table | mm | 150~700 |
|
TABLE | ||
|
Table dimension | mm | 1200 x 600 |
|
T-slot(No. of T-slot x width x pitch) | mm | 5 x 18 x 100 |
|
Max. weight on table | kg | 1200 |
|
FEED RATES | ||
|
X-axis Rapid Traverse Rate | m / min | 42 |
|
Y-axis Rapid Traverse Rate | m / min | 42 |
|
Z-axis Rapid Traverse Rate | m / min | 36 |
|
Cutting feed rate | m / min | 12 |
|
Ball screw diameter(X/Y/Z) | mm | 45/45/45 |
|
Guideway type | Roller | |
|
AUTOMATIC TOOL CHANGE SYSTEM | ||
|
Tool magazine capacity | pcs | 24(30/32) |
|
Max. tool weight | kg | 7 |
|
Max. tool diameter | mm | 80 |
|
Max. tool diameter without adjacent tools | mm | 150 |
|
Method of tool exchange | Arm type | |
|
Max. tool length | mm | 300 |
|
MOTOR | ||
|
AI contour control | AICC I (AICC II) | |
|
Spindle motor power(Cont./30min) | kW | 7.5/11(15/18.5) |
|
X/Y/Z feed motor | kW | 3/3/4 |
|
Coolant pump motor(50Hz/60Hz) | kW | 0.53+0.85/0.75+1.27 |
|
OTHERS | ||
|
Air supply | kg/cm² | 5.5 |
|
Machine dimension L x W x H | m | 3 x 2.2 x 3 |
|
Net weight | kg | 7500 |
|
|
|
|
|
|
|
|
|
NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
---|---|---|---|---|
|
1 | FANUC 0i-M controller +AICC I | 1 | Data server 2G |
|
2 | RS-232 interface | 2 | Linear scale (Heidenhain) |
|
3 | Rigid tapping | 3 | Contact tool setter |
|
4 | Heat exchanger for electric cabinet | 4 | Workpiece touch probe |
|
5 | 8.4" Colored LCD monitor | 5 | Air cooler for electric cabinet |
|
6 | Lubrication system | 6 | Spindle speed upgrading |
|
7 | 4-bar coolant system | 7 | Upgrade to 10.4" Colored LCD monitor |
|
8 | Cutter air blast | 8 | 20 bar coolant through spindle system |
|
9 | Spray gun | 9 | Oil-coolant skimmer |
|
10 | Three-color warning light | 10 | Oil mist collector |
|
11 | Spindle oil cooling system | 11 | 4th axis interface + FANUC motor & driver |
|
12 | 4th axis rotary table | ||
|
13 | Z-axis travel 740mm | ||
|
14 | 2-step gear box | ||
|
15 | Automatic door | ||
|
16 | Chain type chip conveyor + chip cart | ||
|
17 | Transformer | ||
|
18 | CE version | ||
|
19 | AICC II | ||
|
20 | Spindle air blow tube |
Super Rigid One-Piece Cast Bed
Accuway's UM line of Vertical Machining Centers are made of Meehanite castings with an upgraded tensile strength and dampening capacity.They are heat treated to eliminate internal stresses and resist creep or fatigue under various operating conditions and thereby maintain accuracy even under prolonged cutting of even the toughest production part materials and tolerances.
Exceptionally Heavy Ribbed Structure
The exceptionally heavy ribbing structure is geometrically symmetrical to balance the thermal and dynamic stresses ensuring the highest level of static and dynamic stability needed for constant precision cutting. This structure provides the optimal rigidity and torsional stiffness for high performance manufacturing.
Wide Guideway Span
The extra wide linear guide span minimizes the bending deflection of the structure and provides a massive monolith base and support for heavy loads while maintaining a high level of accuracy.This also provides a stable cutting platform.
Advanced Design FEA Analysis
With nearly 30 years of experience Accuway has amassed technical expertise and experienced engineers. They have developed the optimal machine structure design to provide the perfect balance of brute power stability and precision to build a compact machining center delivering high performance. With FEA analysis, years of client feedback and industry appraisal, Accuway has created the UM line with superb static and dynamic stability for constant precision cutting.
Precision Spindles
Our precision spindles come with P4 class super precision bearings for strong axial resistance to counter cutting forces. They are permanently greased and lubricated for maximum lifetime and maintenance free requirements. All machines come standard with belt driven or direct drive couplings. Only high torque A.C. Spindle motors are used for supreme power, accuracy and reliability.
Spindle Coolant Chiller
The large capacity spindle coolant chiller re-circulates cooling oil through the spindle cartridge and machine headstock casting to maintain consistent positioning accuracy over a wide ambient temperature range.
Coolant Through Spindle
For drilling and tapping small diameter deep precise holes we offer a coolant through spindle option. The coolant is dispersed directly at the machining point for eliminating ships that impact drill tip flutes and reduces broken tools.
Ball Screws on All Axes
Servo motors and ball screws are used on all axes and are direct coupled for virtually backlash free precise movement. With a low inertia and high efficiency output this combination offers excellent dynamic precision during contour machining.
Precision Guideways
UM machines all have precision guideways coupled with ball screws for short machining times and longer tool life. Also the heavy-duty precision linear guideways with extra wide rails and a larger contact surface for superior frame rigidity.
Automatic Tool Changer
This Machine comes standard with a 24 tool magazine with highly efficient and fast tool changes to keep your pace of production high. An optional 32 tool magazine is also available.
2-axis Trunnion Rotary Table
An optional 2-axis trunion rotary table provides 5-axis machining capability for complex parts. This capability reduces tolerance deterioration due to multiplw part transfer and jig change issues.
Tool Setter
This optional tool setting system can quickly check the tool length and diameter and gather compensation data for improving efficiency and reducing machine idle time.
