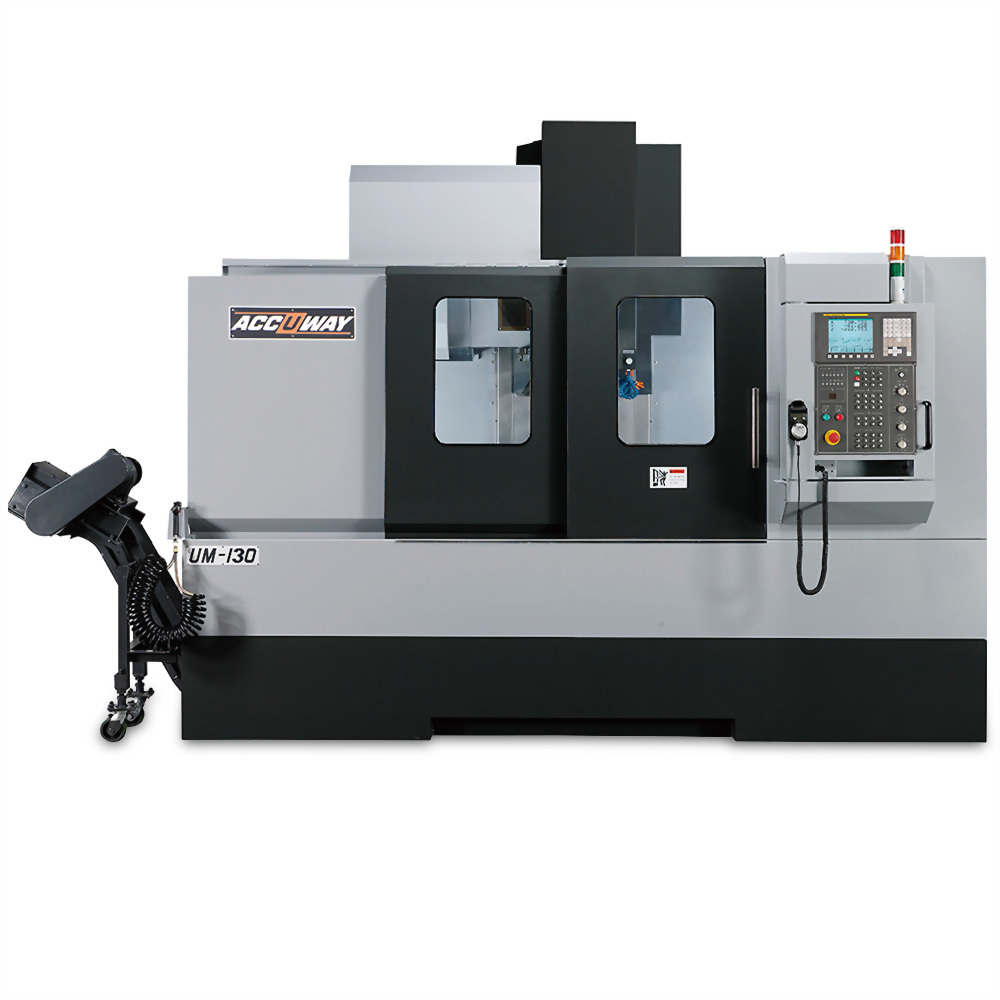

UM-130
Vertical Machining Center
| ITEM/MODEL | UM-130 | |
| Controller | FANUC 0i-M | |
| SPINDLE | ||
| Spindle speed | rpm | 10000(12000) |
| Spindle nose taper | BT40 | |
| Bearing inner diameter | mm | 70 |
| Drive system | Belt (Direct) | |
| TRAVELS | ||
| X-axis travel | mm | 1300 |
| Y-axis travel | mm | 650 |
| Z-axis travel | mm | 550 |
| Spindle nose to table | mm | 150~700 |
| TABLE | ||
| Table dimension | mm | 1500 x 650 |
| T-slot(No. of T-slot x width x pitch) | mm | 5 x 18 x 100 |
| Max. weight on table | kg | 1500 |
| FEED RATES | ||
| X-axis Rapid Traverse Rate | m / min | 30 |
| Y-axis Rapid Traverse Rate | m / min | 30 |
| Z-axis Rapid Traverse Rate | m / min | 30 |
| Cutting feed rate | m / min | 12 |
| Ball screw diameter (X/Y/Z) | mm | 45/45/45 |
| Guideway bearing type | Roller | |
| AUTOMATIC TOOL CHANGE SYSTEM | ||
| Tool magazine capacity | pcs | 24(30/32) |
| Max. tool weight | kg | 7 |
| Max. tool diameter | mm | 75 |
| Max. tool diameter without adjacent tools | mm | 150 |
| Method of tool exchange | Arm type | |
| Max. tool length | mm | 300 |
| MOTOR | ||
| AI contour control | AICC I (AICC II) | |
| Spindle motor power(Cont. / 30min) | kW | 15/18.5 |
| X/Y/Z feed motor | kW | 4/4/7 |
| Coolant pump motor(50Hz/60Hz) | kW | 0.53+0.85/0.75+1.27 |
| OTHER | ||
| Air supply | kg/cm² | 5.5 |
| Machine dimension L x W x H | m | 3.3 x 2.7 x 3 |
| Net weight | kg | 8000 |
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-M controller + AICC II | 1 | Data server 2G |
| 2 | RJ-45 interface | 2 | Linear scale (Heidenhain) |
| 3 | Rigid tapping | 3 | Contact tool setter |
| 4 | Heat exchanger for electric cabinet | 4 | Workpiece touch probe |
| 5 | 10.4" Colored LCD monitor | 5 | Roller type guide way |
| 6 | Lubrication system | 6 | Air cooler for electric cabinet |
| 7 | 4-bar coolant system | 7 | Spindle speed upgrading |
| 8 | Cutter air blast | 8 | Upgrade to 15" Colored LCD monitor |
| 9 | Spray gun | 9 | 20 bar coolant through spindle system |
| 10 | Three-color warning light | 10 | Oil-coolant skimmer |
| 11 | Spindle oil cooling system | 11 | Oil mist collector |
| 12 | 4th axis interface + FANUC motor & driver | ||
| 13 | 4th axis rotary table | ||
| 14 | Auto door | ||
| 15 | Chain type chip conveyor + chip cart | ||
| 16 | Transformer | ||
| 17 | CE version |
