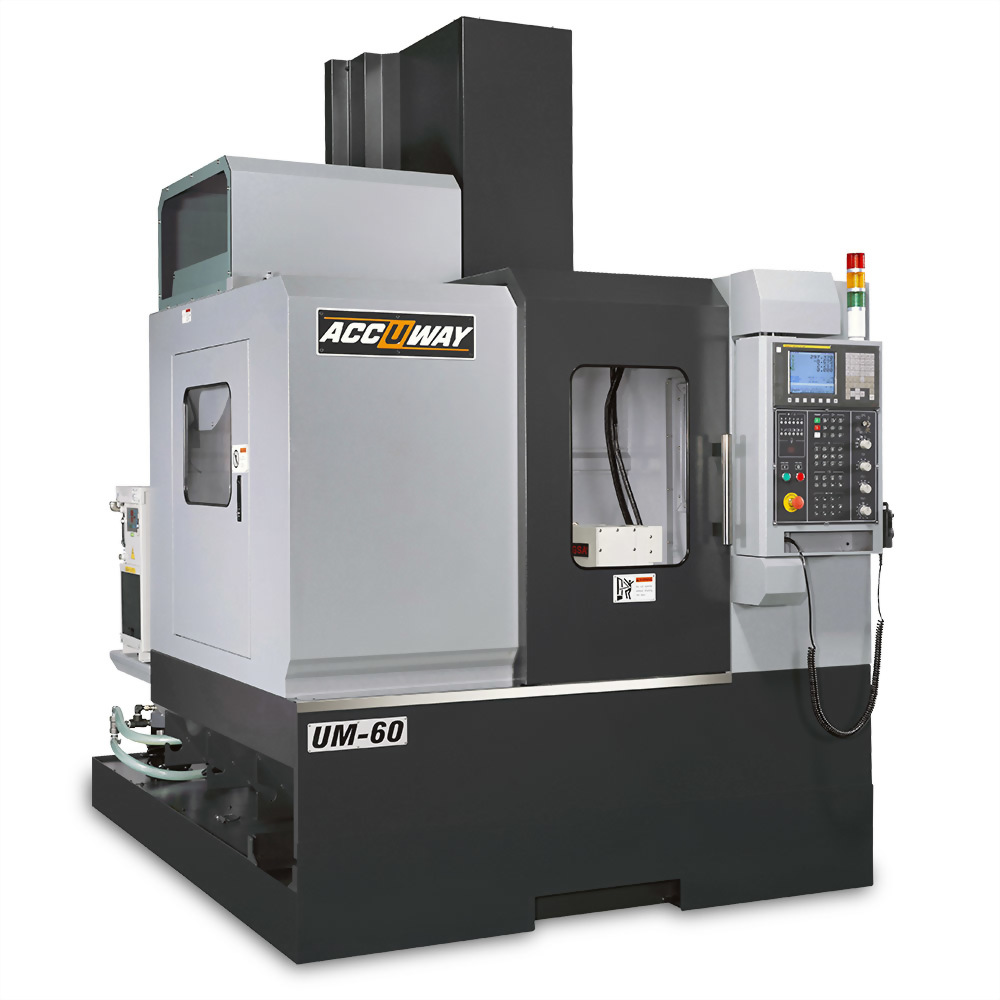

UM-60

Vertical Machining Center

Vertical Machining Center



· Best for machining small and precision dies and molds.

· 24-station, swing-arm automatic tool changer .

· Spindle speed 10000(12000) rpm

· Belt driven spindle design

· Table dimension: 750 x 560 mm

· FANUC 0i controller with LCD monitor.

· Linear guides on all axis.
ITEM/MODEL UM-60
Controller FANUC 0i-M
SPINDLE
Spindle speed rpm 10000(12000)
Spindle nose taper - BT40
Bearing inner diameter mm 70
Drive system - Belt(Direct)
TRAVELS
X-axis travel mm 600
Y-axis travel mm 510
Z-axis travel mm 510
Spindle nose to table mm 150~660
TABLE
Table dimension mm 750 x 560
T-slot(No. of T-slot x width x pitch) mm 5 x 18 x 100
Max. weight on table kg 750
FEED RATES
X-axis Rapid Traverse Rate m / min 36
Y-axis Rapid Traverse Rate m / min 36
Z-axis Rapid Traverse Rate m / min 30
Cutting feed rate m / min 12
Ball screw diameter(X/Y/Z) mm 40/40/40
Guideway type Ball
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity pcs 24
Max.tool weight kg 7
Max.tool diameter mm 80
Max.tool diameter without adjacent tools mm 150
Method of tool exchange - Arm type
Max. tool length mm 300
MOTOR
AI contour control AICC I (AICC II)
Spindle motor power(Cont. / 30min) kW 7.5 / 11
X/Y/Z feed motor kW 3/3/4
Coolant pump motor(50Hz/60Hz) kW 0.53+0.85/0.75+1.27
OTHERS
Air supply kg/cm² 5.5
Machine dimension L x W x H m 2 x 2.6 x 2.8
Net weight kg 5000


NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-M controller +AICC I 1 Data server 2G
2 RS-232 interface 2 Linear scale (Heidenhain)
3 Rigid tapping 3 Contact tool setter
4 Heat exchanger for electric cabinet 4 Workpiece touch probe
5 8.4" Colored LCD monitor 5 Roller type guide way
6 Lubrication system 6 Air cooler for electric cabinet
7 4-bar coolant system 7 Spindle speed upgrading
8 Cutter air blast 8 Upgrade to 10.4" Colored LCD monitor
9 Spray gun 9 20 bar coolant through spindle system
10 Three-color warning light 10 Oil-coolant skimmer
11 Spindle oil cooling system 11 Oil mist collector
12 4th axis interface + FANUC motor & driver
13 4th axis rotary table
14 Automatic door
15 Chain type chip conveyor + chip cart
16 Transformer
17 CE version
18 Spindle air blow tube
19 AICC II
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the
 machine without prior notice. All the specifications shown above are just for reference.
