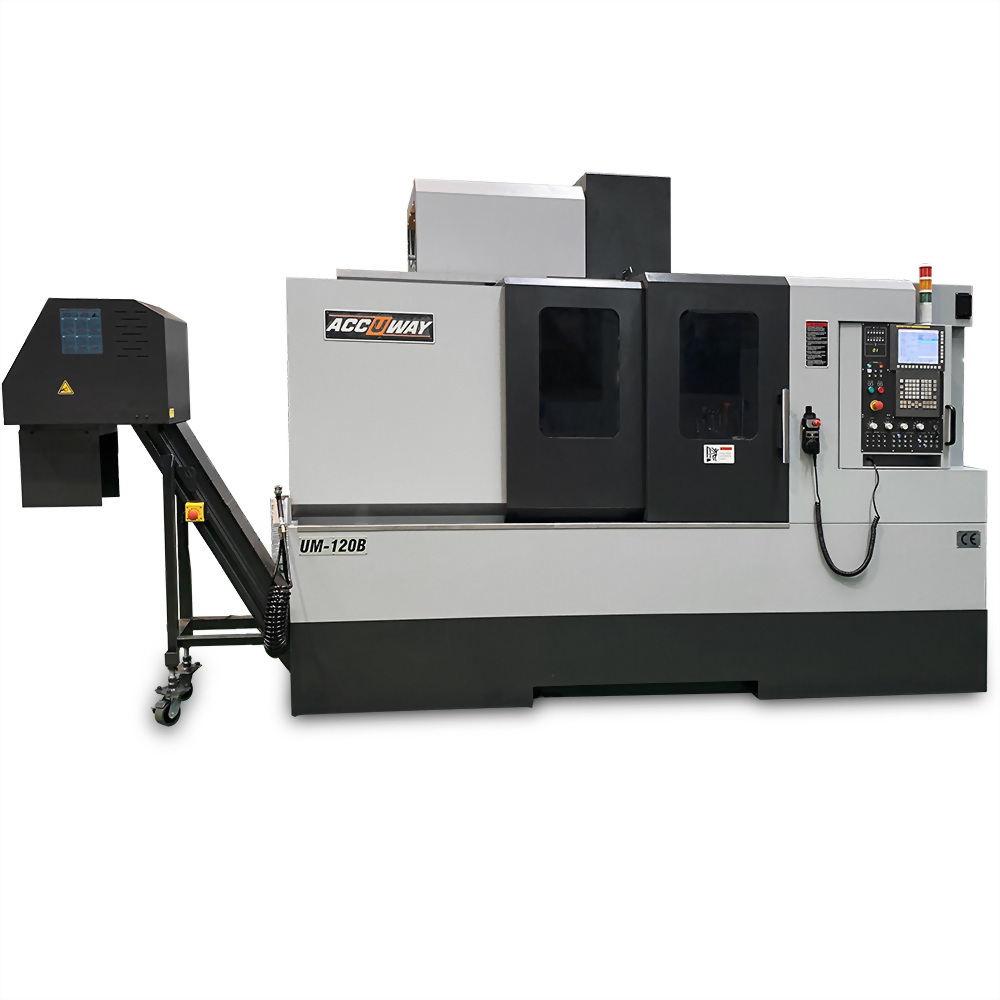

Vertical Machining Center

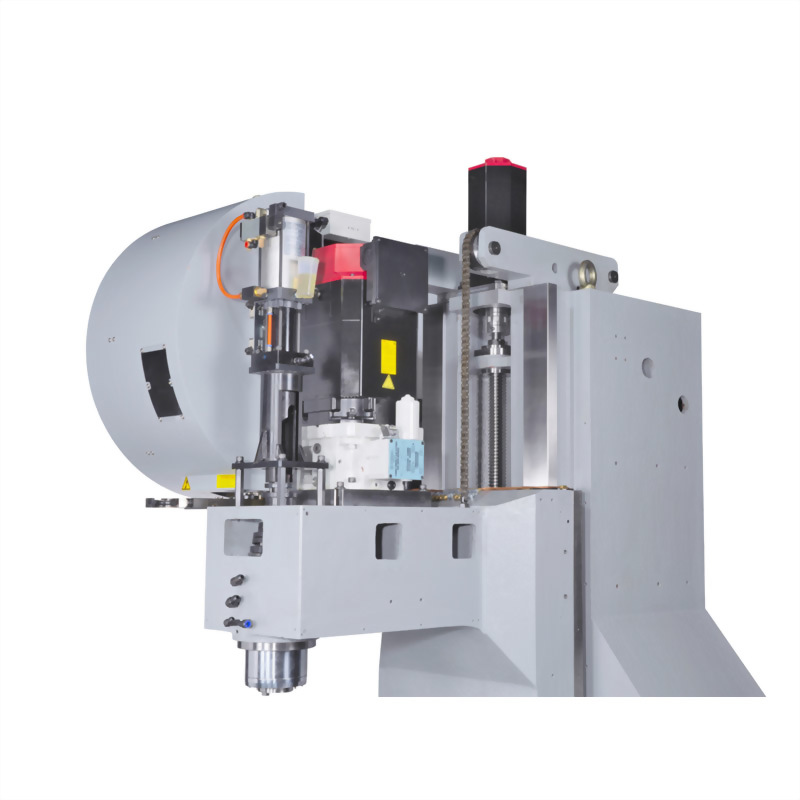

Vertical Machining Center


  • Increased capacity, improved capacity and better all around performance
  • 24-station, swing-arm automatic tool changer
  • Spindle speed 10000 (12000) rpm
  • Belt / Direct driven spindle design
  • Table dimension: 1200 x 600 mm
  • FANUC 0i-M controller with LCD monitor




ITEM/MODEL UM-120B
Controller FANUC 0i-M
SPINDLE
Spindle speed rpm 10000(12000)
Spindle nose taper BT40
Bearing inner diameter mm 70
Drive system Belt(Direct)
TRAVELS
X-axis travel mm 1200
Y-axis travel mm 650
Z-axis travel mm 600
Spindle nose to table mm 150~725
TABLE
Table dimension mm 1200 x 600
T-slot(No. of T-slot x width x pitch) mm 5 x 18 x 100
Max. weight on table kg 1200
FEED RATES
X-axis Rapid Traverse Rate m / min 24
Y-axis Rapid Traverse Rate m / min 24
Z-axis Rapid Traverse Rate m / min 24
Cutting feed rate m / min 12
Ball screw diameter (X/Y/Z) mm 45/45/45
Guideway type Box
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity units 24(30/32)
Max. tool weight kg 7
Max. tool diameter mm 80
Max. tool diameter without adjacent tools mm 150
Method of tool exchange Arm type
Max. tool length mm 300
MOTOR
AI contour control AICC I (AICC II)
Spindle motor power(Cont./30min) kW 7.5/11(15/18.5)
X/Y/Z feed motor X, (Y/Z) kW 3/3/4
Coolant pump motor(50Hz/60Hz) kW 0.75+1.27(1.01+1.73)
OTHERS
Air supply kg/cm² 5.5
Machine dimension L x W x H m 3.1 x 2.3 x 2.8
Net weight kg 7500


NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-M controller + AICC I  1 Data server 2G
2 RS-232 interface 2 Linear scale (Heidenhain)
3 Rigid tapping 3 Contact tool setter
4 Heat exchanger for electric cabinet 4 Workpiece touch probe
5 8.4" Colored LCD monitor 5 Air cooler for electric cabinet
6 Lubrication system 6 Spindle speed upgrading
7 4-bar coolant system 7 Upgrade to 10.4" Colored LCD monitor
8 Cutter air blast 8 20 bar coolant through spindle system
9 Spray gun 9 Oil-coolant skimmer
10 Three-color warning light 10 Oil mist collector
11 Spindle oil cooling system 11 4th axis interface + FANUC motor & driver
12 4th axis rotary table
13 Z-axis travel 740mm
14 2-step gear box
15 Automatic door
16 Chain type chip conveyor + chip cart
17 Transformer
18 CE version
19 Spindle air blow tube
20 AICC II
