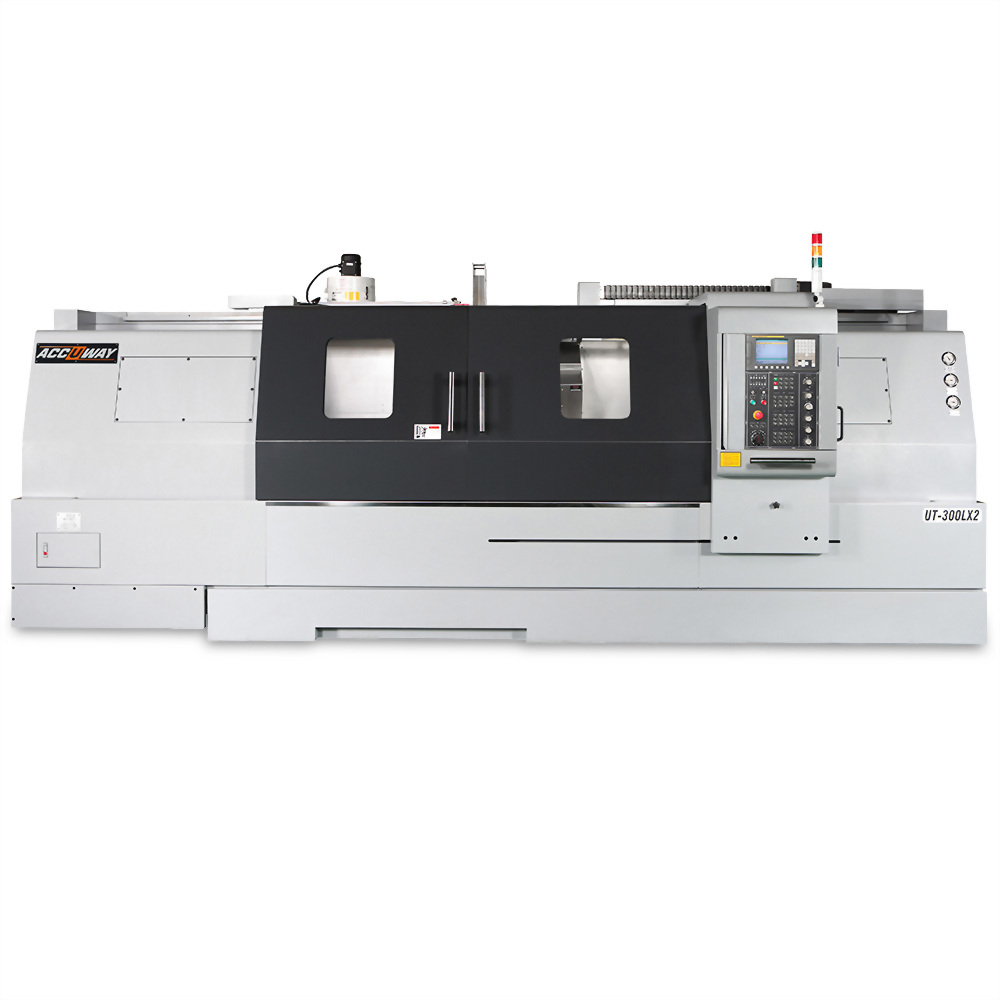

UT-300LX2
Slant Bed Turning Center
High Rigidity and High Precision Machining
· Cam-driven hydraulic/servo turret with 12 station
· One-piece bed, 30° slant-bed structural design
· Max. Swing: 612 mm
· Max. Length: 2200 mm
· Spindle: A2-8 in 3500 rpm
· Bar capacity: 75 mm
· 8.4"Fanuc 0i controller with color LCD monitor
· Cam-driven hydraulic/servo turret with 12 station
· One-piece bed, 30° slant-bed structural design
· Max. Swing: 612 mm
· Max. Length: 2200 mm
· Spindle: A2-8 in 3500 rpm
· Bar capacity: 75 mm
· 8.4"Fanuc 0i controller with color LCD monitor
|
|
ITEM/MODEL | UT-300LX2 |
|
|
|
||||
|---|---|---|---|---|---|---|---|---|---|
|
|
Controller | FANUC 0i-T | |||||||
|
|
CAPACITY | ||||||||
|
|
Swing over bed | mm | 612 | ||||||
|
|
Swing over saddle | mm | 400 | ||||||
|
|
Max. turning diameter | mm | 500 |
|
|||||
|
|
Max. turning length | mm | 2200 |
|
|||||
|
|
Bed slant angle | degree | 30 | ||||||
|
|
Guide way type | Box | |||||||
|
|
SPINDLE | ||||||||
|
|
Spindle nose taper | ASA | A2-8(A2-11) | ||||||
|
|
Spindle hole diameter | mm | 86(101/116) | ||||||
|
|
Chuck diameter | in | 10(12/15) | ||||||
|
|
Spindle speed | rpm | 3500(2700/2500) | ||||||
|
|
Spindle motor power(Cont. / 30min) | kW | 15/18.5 | ||||||
|
|
Bar capacity | mm | 75(90/105) | ||||||
|
|
TRAVELS | ||||||||
|
|
Z-axis travel | mm | 2250 | ||||||
|
|
X-axis travel | mm | 300 | ||||||
|
|
FEED RATES | ||||||||
|
|
Z-axis Rapid Traverse Rate | m/min | 15 |
|
|||||
|
|
X-axis Rapid Traverse Rate | m/min | 20 | ||||||
|
|
TURRET | ||||||||
|
|
Tooling system |
|
BOT |
|
|||||
|
|
Turret driven type | Hydraulic/Servo |
|
||||||
|
|
Number of tools |
stations |
12 | ||||||
|
|
Square tool shank size | mm | 25 | ||||||
|
|
Round tool shank size | mm | 40 | ||||||
|
|
Max. Rotary Tool Speed | rpm | - |
|
|||||
|
|
Rotary Tool Driver Power | kW | - | ||||||
|
|
TAILSTOCK | ||||||||
|
|
Tailstock body travel | mm | 2040 |
|
|||||
|
|
Quill travel | mm | 120 | ||||||
|
|
Quill diameter | mm | 85 | ||||||
|
|
Quill taper | MT# | 5 | ||||||
|
|
DIMENSION | ||||||||
|
|
Machine dimension L x W x H | m | 5.5 x 2.3 x 2.3 |
|
|||||
|
|
Net weight | kg | 9000 |
|
|||||
|
|
NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
|---|---|---|---|---|
|
|
1 | FANUC 0i-T controller | 1 | Upgrade to 10.4" Colored LCD monitor |
|
|
2 | RS-232 interface | 2 | Collet chuck |
|
|
3 | Rigid tapping | 3 | Tool setter |
|
|
4 | Heat exchanger for electric cabinet | 4 | Oil mist collector |
|
|
5 | 8.4" Colored LCD monitor | 5 | Oil-coolant skimmer |
|
|
6 | Lubrication system | 6 | Air cooler for electric cabinet |
|
|
7 | 4-bar coolant system | 7 | Steady rest |
|
|
8 | Cutter air blast | 8 | Transformer |
|
|
9 | Three-color warning light | 9 | CE version |
|
|
10 | Loader interface | ||
|
|
11 | Gantry loader system | ||
|
|
12 | Automatic door | ||
|
|
13 | Linear scale |
High Quality Meehanite Casting
A heavily ribbed and reinforced one piece Meehanite casting highly reduce the chances of bending and deformation. The UT-300 series has a 30° slant bed.
Designed for Stability
In order to achieve a high standard of machine stability and provide the best machining performance, the base in these machines is designed to have a low center of gravity.
Wide Hardened Boxways
Another high standard aspect is the unique process for induction-hardened and heat treated wide boxways . They are also precision ground to match stringent positioning and repetitive accuracy under various machining requirements.
Expert Hand Scraping
To get the most precise positioning and extend their service life to the maximum, all sliding surfaces are treated with extreme care and proficiency. First, they are coated with a layer of Turcite B and then hand-scraped to create the perfect lubricant retention.
During assembly, professional experts will constantly check and adjust the surfaces flatness, squareness, and straightness and make sure to deliver the best static geometrical accuracy.
Precision Assurance
Prior to assembly, all key components will go through a series of functional and dimensional checks using CMM system ensuring they are up to standards.
Rigid Shock Absorbing Headstock
To eliminate remaining internal stress arising from casting process, headstocks are naturally seasoned as well as heat treated and annealed twice before precision finishing grinding. They are specially designed to resist cutting force and withstand the extreme demands of continues heavy-duty and step cutting.
Headstock Performance
One of the best headstock design features is the symmetrically placed heat dissipating ribs. They allow the cooling process to take place smoothly and evenly. This minimizes thermal deformation and helps maintaining the circularity and concentricity to achieve the high precision that customers expect.
Precision In-house Spindle Assembly
Precision belt drive spindles are custom designed and assembled in-house to provide unsurpassed power, long term durability, and peak machining capability.
Each spindle undergoes a dynamic balancing operation to reduce the vibration increasing the machine performance and overall quality.
Ballscrew Drive Mechanism
State-of-the-art larger AC servo motors are equipped to provide powerful thrust for high feed rates and accurate cutting. Therefore, large diameter pre-tensioned precision ballscrews are directly connected to the drive mechanism for a backlash free movement.
Precision In-house Turret Assembly
All turrets are built in-house with care offering both cam-follower driven hydraulic and servo driven indexing mechanisms. BMT turret is provided as an option as well, covering a wider range of availabilities for clients.
Programmable Tailstock
The tailstocks in the UT series machines can be either manually or automatically controlled. They are located on the same one-piece cast guideway surface aligned with the headstock and main spindle. The UT-300 has a programmable tailstock as a standard option.
UT-300 Rack & Pinion Drive Mechanism
A rack and pinion mechanism drives the heavy duty tailstock in the UT-300 series using its high torque to deliver powerful positional locking.
