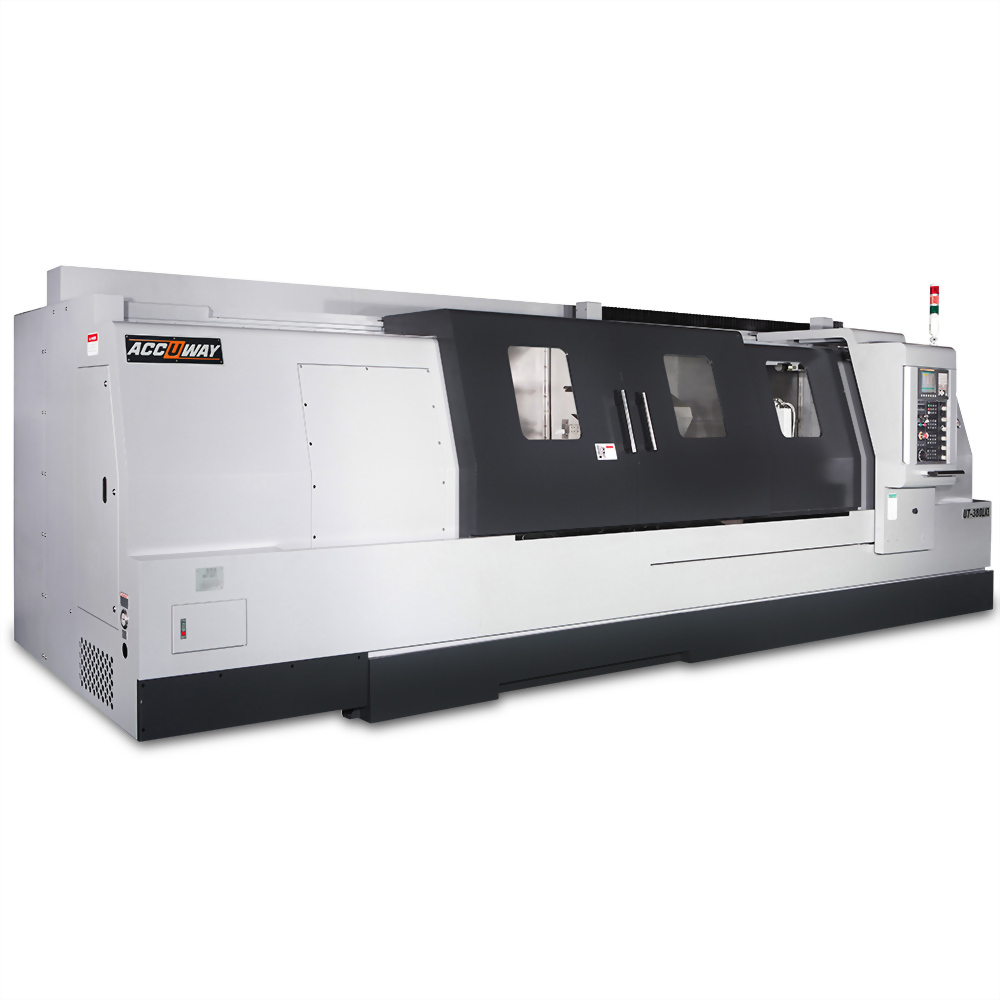

UT-380LX3
High Performance Turning Center
Heavy Duty and Cutting Machine Tool with High Precision MT-6 Tailstock
· Cam-driven hydraulic/servo turret with 12 station
· One-piece bed, 30° slant-bed structural design
· Max. Swing: 850 mm
· Max. Length: 3062 mm
· Spindle: A2-8 in 2700 rpm
· Bar capacity: 90 mm
· 8.4"Fanuc 0i controller with color LCD monitor
· Cam-driven hydraulic/servo turret with 12 station
· One-piece bed, 30° slant-bed structural design
· Max. Swing: 850 mm
· Max. Length: 3062 mm
· Spindle: A2-8 in 2700 rpm
· Bar capacity: 90 mm
· 8.4"Fanuc 0i controller with color LCD monitor
|
ITEM/MODEL | UT-380LX3 |
|
||||
---|---|---|---|---|---|---|---|
|
Controller | FANUC 0i-T | |||||
|
CAPACITY | ||||||
|
Swing over bed | mm | 850 | ||||
|
Swing over saddle | mm | 700 | ||||
|
Max.Spindle turning diameter | mm | 680 | ||||
|
Max. turning length | mm | 3062 | ||||
|
Guide way type | Box | |||||
|
SPINDLE | ||||||
|
Spindle Nose | ASA | A2-8(A2-11 / A2-15) | ||||
|
Chuck Diameter | inch | 12(15/18) | ||||
|
Spindle hole diameter | mm | 101(116/131/181) | ||||
|
Spindle Speed | rpm | 2700(2500/2000/1800) | ||||
|
Spindle Motor Power(Cont. /30min) | kW | 18.5/22(30/37)+ 2 speed gearbox | ||||
|
Bar Capacity | mm | 90(105/116.5/166.5) | ||||
|
TRAVELS | ||||||
|
X-axis Travel | mm | 370 |
|
|||
|
Z-axis Travel | mm | 3182 | ||||
|
FEED RATES | ||||||
|
X-axis Rapid Traverse Rate | m/min | 20 | ||||
|
Z-axis Rapid Traverse Rate | m/min | 10 | ||||
|
TURRET | ||||||
|
Tooling system | BOT | |||||
|
Turret driven type | Hydraulic/Servo | |||||
|
Number of tools | station | 12 | ||||
|
Square tool shank size | mm | 32 | ||||
|
Round tool shank size | mm | 50 | ||||
|
TAILSTOCK | ||||||
|
Tailstock body travel | 3040 | |||||
|
Quill travel | mm | 120 | ||||
|
Quill diameter | mm | 120 | ||||
|
Quill taper hole | MT# | 6 | ||||
|
DIMENSION | ||||||
|
Machine dimension L x W x H | m | 7.9 x 2.2 x 2.4 |
|
|||
|
Net weight | kg | 11000 |
|
NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
---|---|---|---|---|
|
1 | FANUC 0i-T controller | 1 | Upgrade to 10.4" Colored LCD monitor |
|
2 | RS-232 interface | 2 | Tool setter |
|
3 | Rigid tapping | 3 | Oil mist collector |
|
4 | Heat exchanger for electric cabinet | 4 | Oil-coolant skimmer |
|
5 | 8.4" Colored LCD monitor | 5 | Air cooler for electric cabinet |
|
6 | Lubrication system | 6 | APT50 12-station power turret |
|
7 | 4-bar coolant system | 7 | Steady rest |
|
8 | Three-color warning light | 8 | CE version |
|
9 | Gear box | 9 | Transformer |
|
10 | Linear scale |
machine without prior notice. All the specifications shown above are just for reference.
Heavy Duty and Cutting Machine Tool with High Precision MT-6 Tailstock
30-degree slant bed, 750 mm swing, and length from 630 mm to 3062 mm.
The heavily ribbed one-piece bed and box way casting is made of a fine-grain Meehanite that is heat treated and ground to attain the hardness of HRC53.Each sliding surface is coated with Turcite-B and hand scraped to provide maximum precision and rigidity.
The large 12 station heavy duty turret is designed with a large diameter Curvic coupling and hydraulic clamp force.
Precision in-house Turret Assembly
All turrets are built with care and we provide both hydraulic, servo and BMT-60/BMT-75 servo mechanical power turret to cover a wide range of needs including an optional BMT turret.
The high precision MT-6 Tailstock
A rack and pinion mechanism drives the heavy duty MT-6 tailstock on the UT-360/UT-380 series using its high torque to deliver powerful positional locking.
Steady rest
To prevent longitudinal deflection induced by work piece weight, hydraulic controlled automatic or manual steady rest is available as an option to maintain cutting precision for large and long workpiece.
