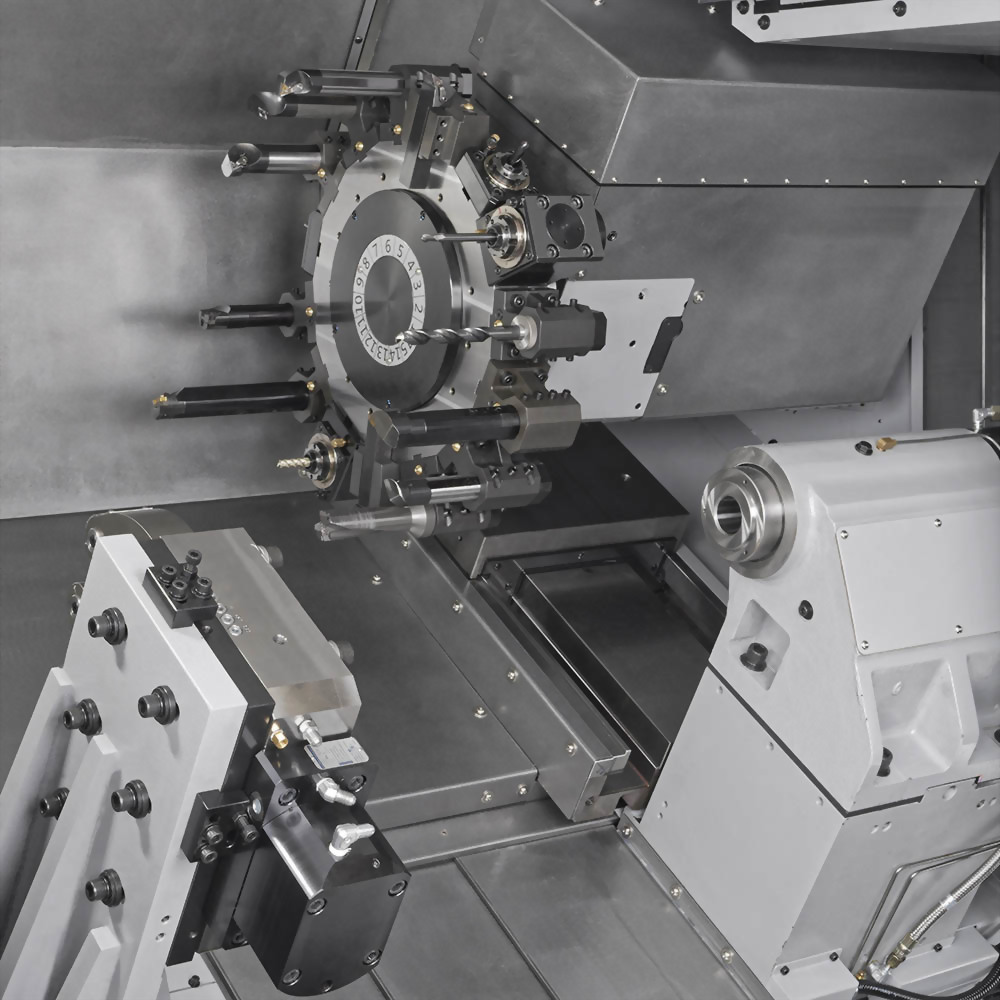

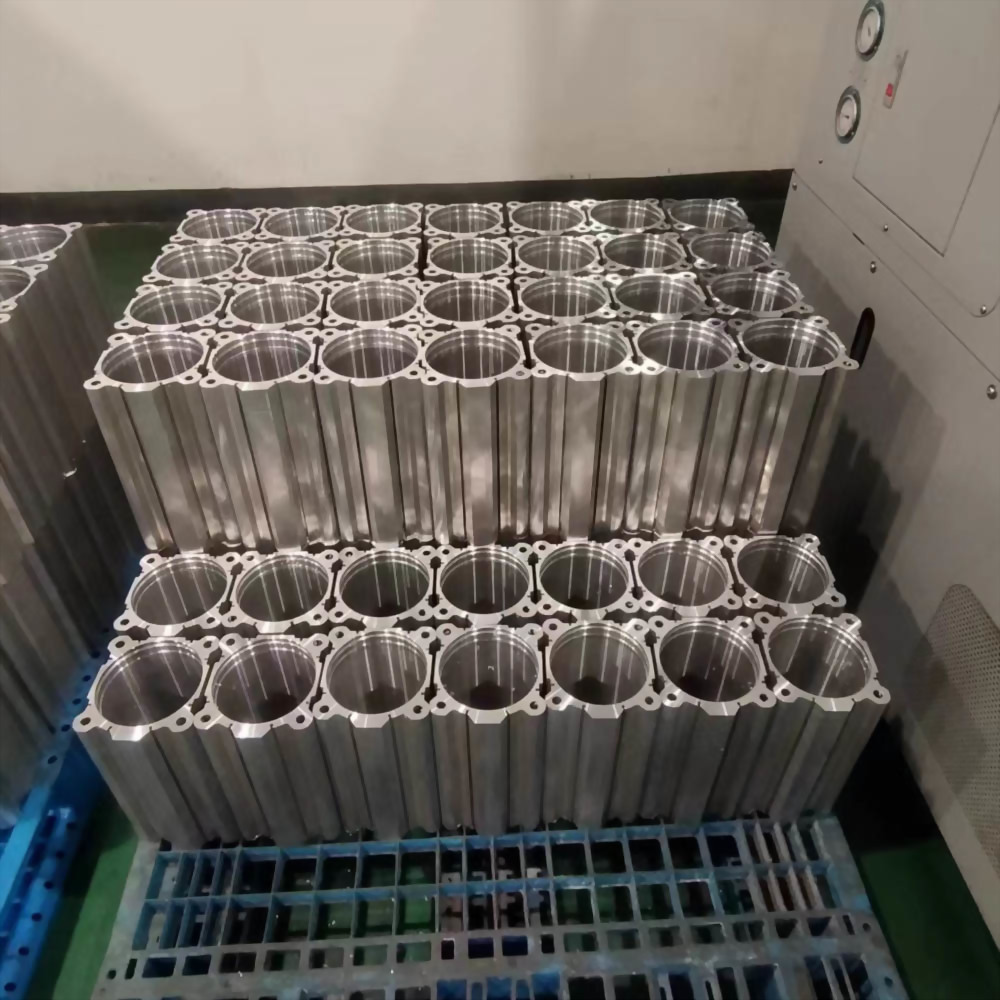

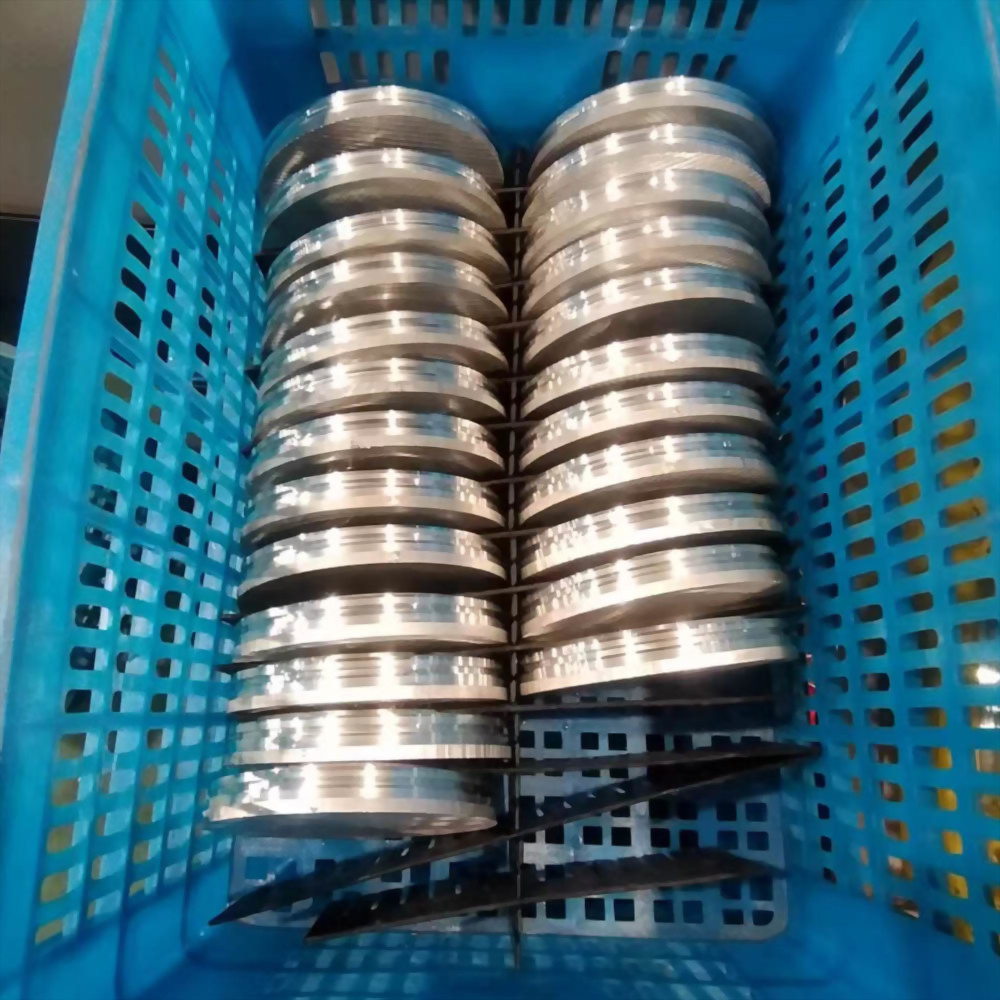

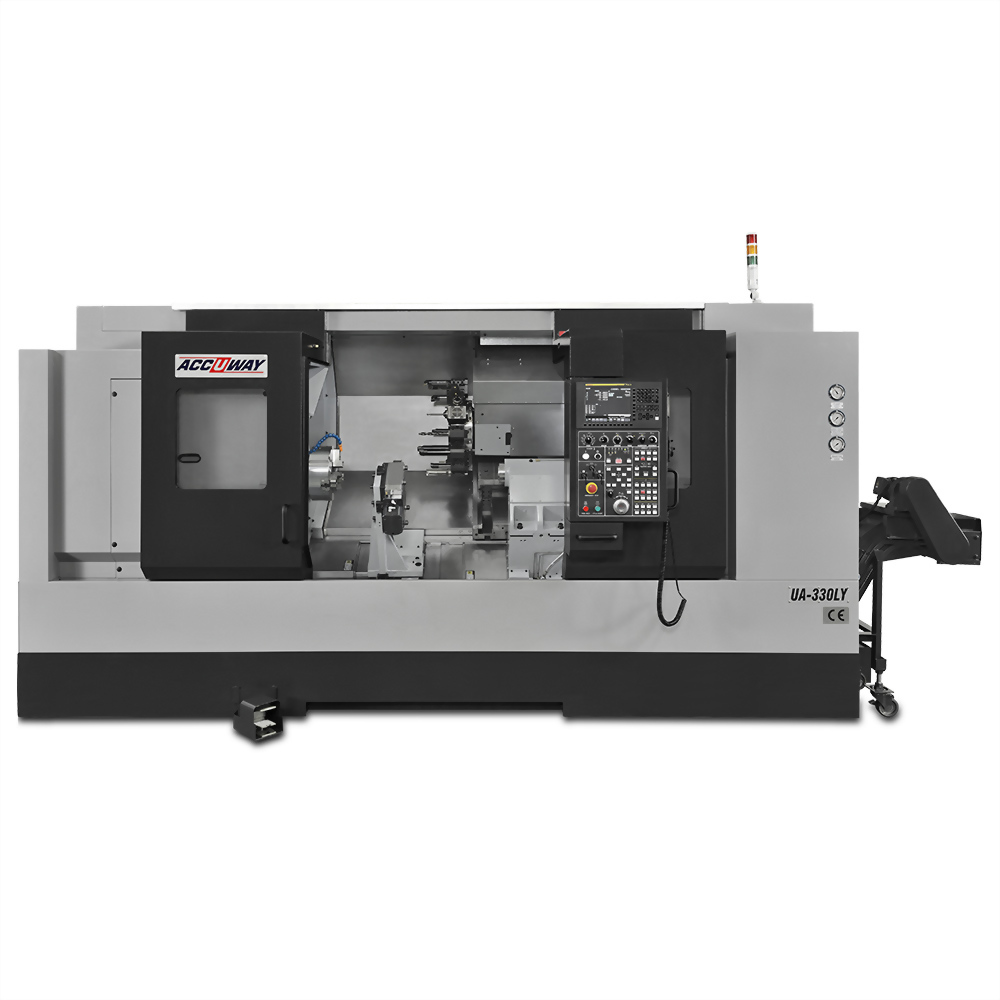

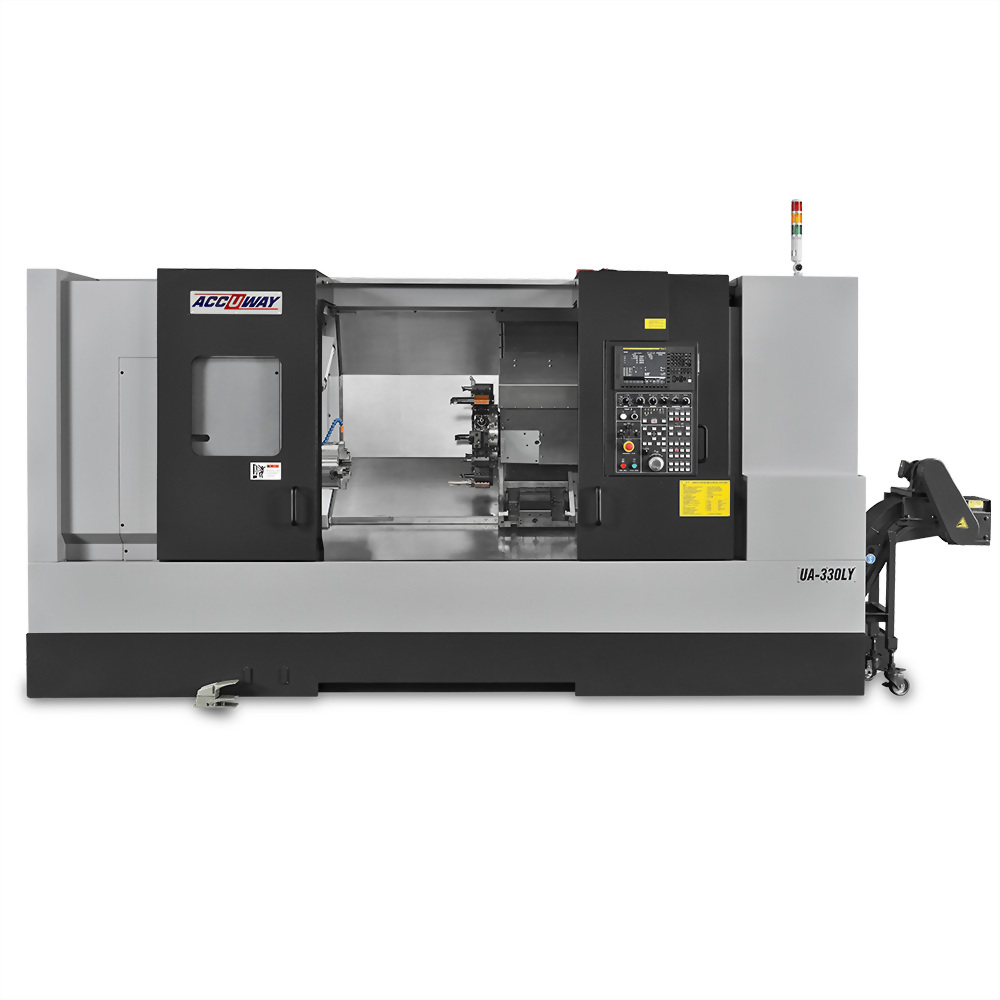

UA-330LY
Slant Bed Turning Center

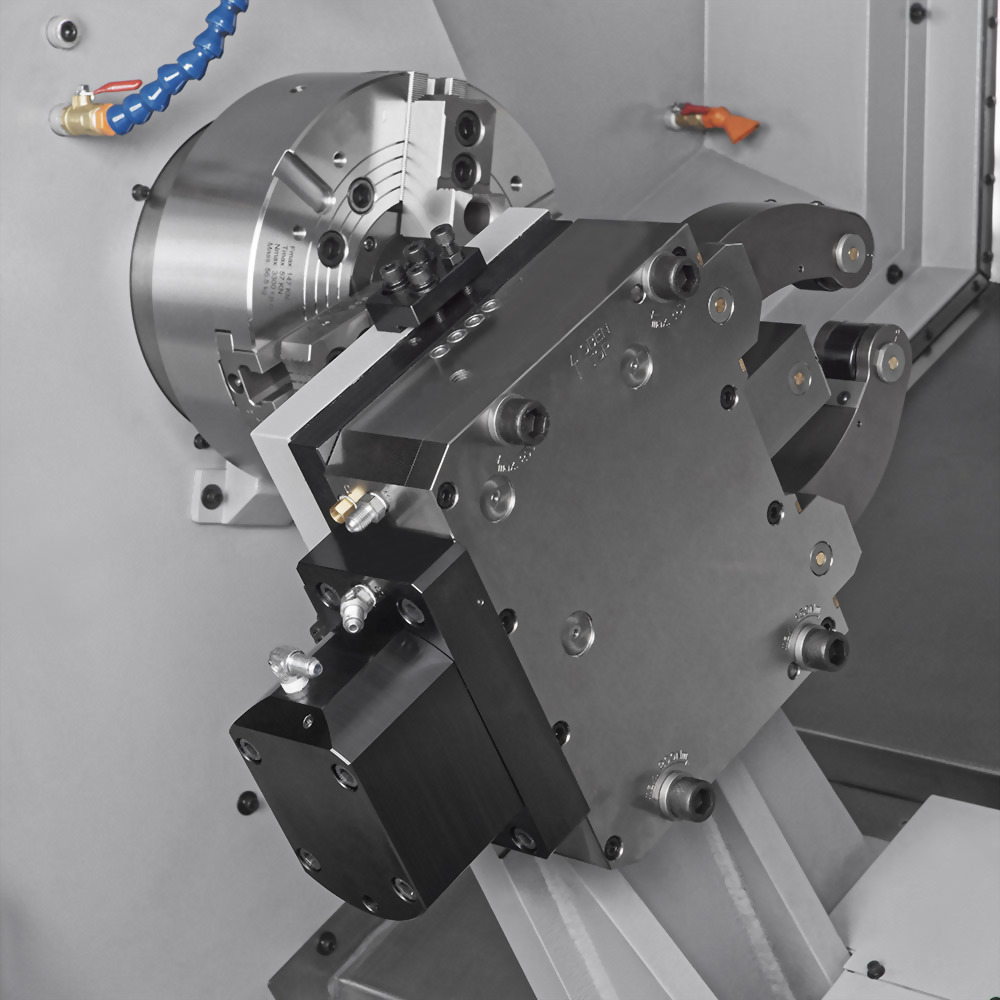

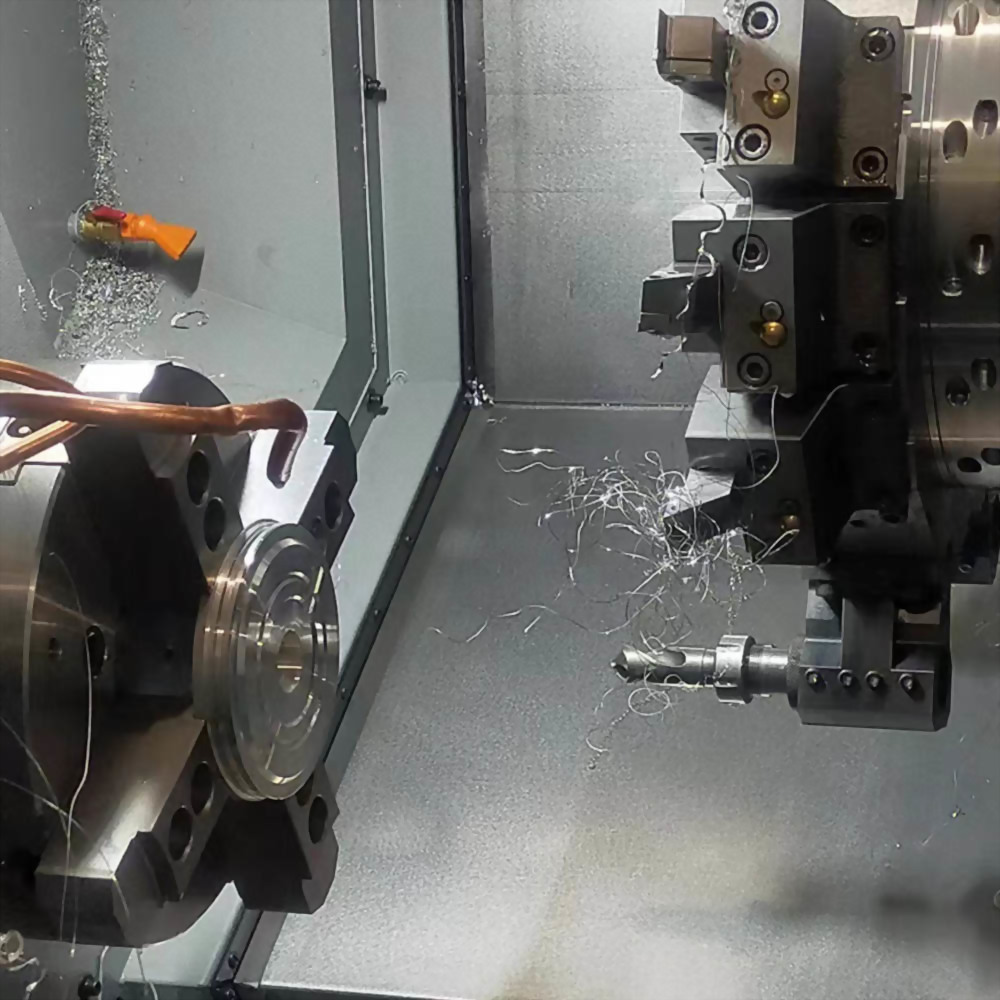

| ITEM/MODEL | UA-330LY | ||
| Controller | FANUC 0i-T | ||
| CAPACITY | |||
| Swing over bed | mm | 800 | |
| Swing over saddle | mm | 600 | |
| Max. turning diameter | mm | 350 | |
| Max. turning length | mm | 1140 | |
| Guide way type | Box Way | ||
| SPINDLE | |||
| Spindle nose taper | ASA | A2-8 | |
| Chuck diameter | inch | 12 | 10 |
| Bar capacity | mm | 75 | |
| Spindle speed | rpm | 2500 | 3500 |
| Spindle motor power(Cont. / 30min) | kW | 15/18.5 | |
| TRAVELS | |||
| X-axis Travel | mm | 290 | |
| Z-axis Travel | mm | 1250 | |
| Y-axis Travel | mm | ±50 | |
| FEED RATES | |||
| X-axis Rapid Traverse Rate | m/min | 20 | |
| Z-axis Rapid Traverse Rate | m/min | 24 | |
| Y-axis Rapid Traverse Rate | m/min | 10 | |
| TAILSTOCK | |||
| Tailstock body travel | mm | 1040 | |
| Quill travel | mm | 120 | |
| Quill diameter | mm | 110 | |
| Quill taper | MT# | 5 | |
| TURRET | |||
| Tooling system | BMT-55N | ||
| Turret driven type | Servo mechanical | ||
| Number of tools | station | 15 | |
| Square tool shank size | mm | 25 | |
| Round tool shank size | mm | 40 | |
| Max. Rotary Tool Speed | rpm | 6000 | |
| Rotary Tool power | kW | 3.7/5.5 | |
| DIMENSION | |||
| Machine dimension L x W x H | m | 4.9x 2.4 x 2.2 | |
| Net weight | kg | 7500 | |
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | RJ-45 interface | 2 | Collect chuck |
| 3 | Rigid tapping | 3 | Tool setter |
| 4 | Heat exchanger for electric cabinet | 4 | Parts catcher and parts conveyor |
| 5 | 10.4" Colored LCD monitor | 5 | Bar feeder interface (7 or 24 pins) |
| 6 | Lubrication system | 6 | Bar feeder |
| 7 | 4-bar coolant system | 7 | Oil mist collector |
| 8 | Three-color warning light | 8 | Oil-coolant skimmer |
| 9 | Air cooler for electric cabinet | ||
| 10 | Gear box | ||
| 11 | Transformer | ||
| 12 | CE version | ||
| 13 | Linear scale | ||
| 14 | 0 degree rotary tool holder | ||
| 15 | 90 degree rotary tool holder |
