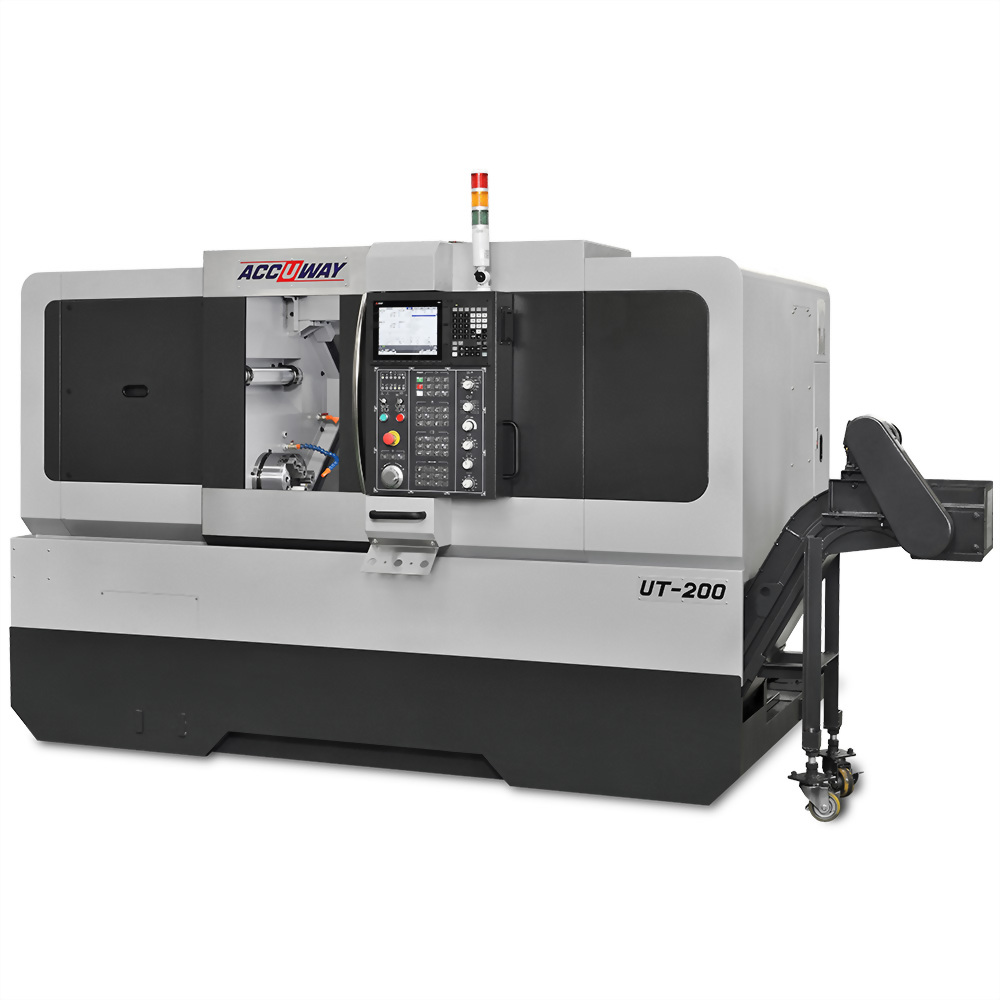

UT-200/UT-200M

Slant Bed Turning Center

ITEM/MODEL UT-200 UT-200M
Controller FANUC 0i-T
CAPACITY
Swing over bed mm 505 505
Swing over saddle mm 318 318
Max. turning diameter mm 300 260
Max. turning length mm 550 470 450 370
Guide way type Box
SPINDLE
Spindle nose taper ASA A2-5 A2-6 A2-8 A2-5 A2-6 A2-8
Chuck diameter inch 6 8 10 6 8 10
Bar capacity mm 44 52 65 75 44 52 65 75
Spindle speed rpm 6000 4500 4000 3500 6000 4500 4000 3500
Spindle motor power(Cont. / 30min kW 11/15(15/18.5) 11/15(15/18.5)
TRAVELS
X-axis Travel mm 220 220
Z-axis Travel mm 600 600
Y-axis Travel mm - -
FEED RATES
X-axis Rapid Traverse Rate m/min 20 20
Z-axis Rapid Traverse Rate m/min 20 20
Y-axis Rapid Traverse Rate m/min - -

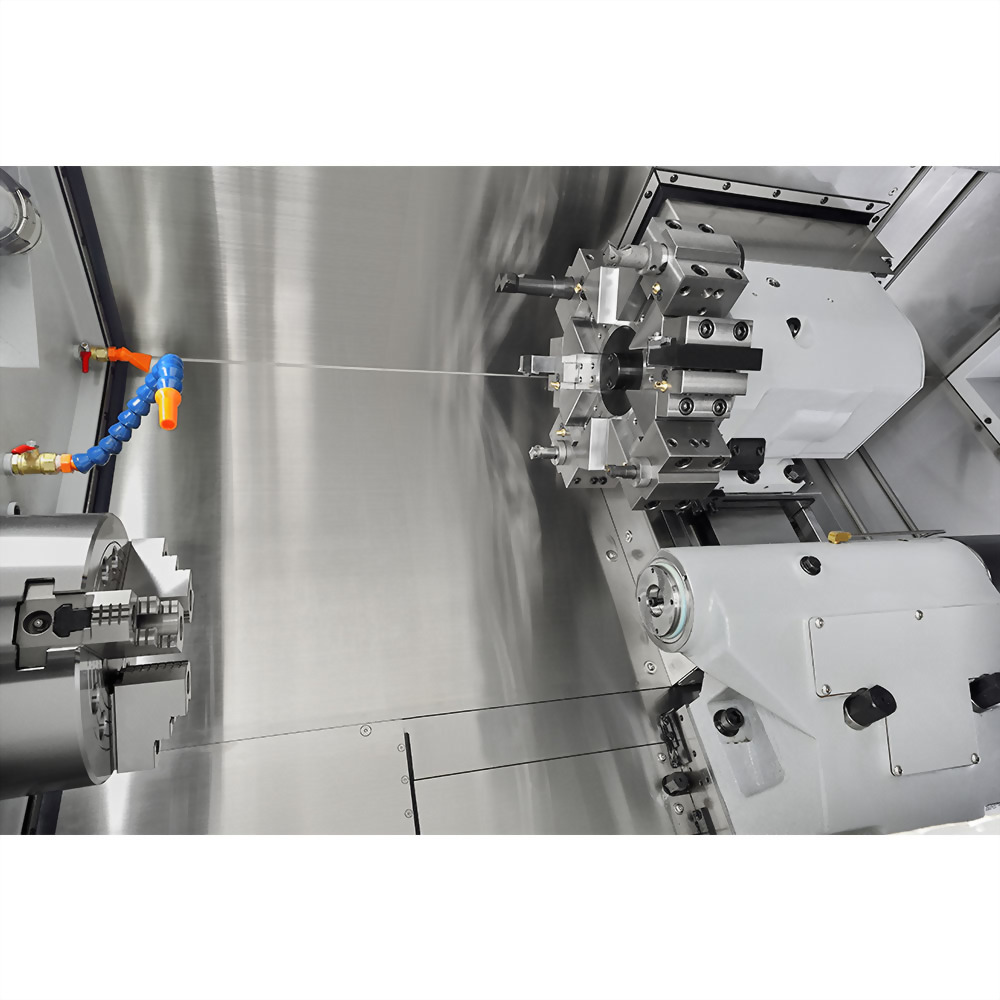

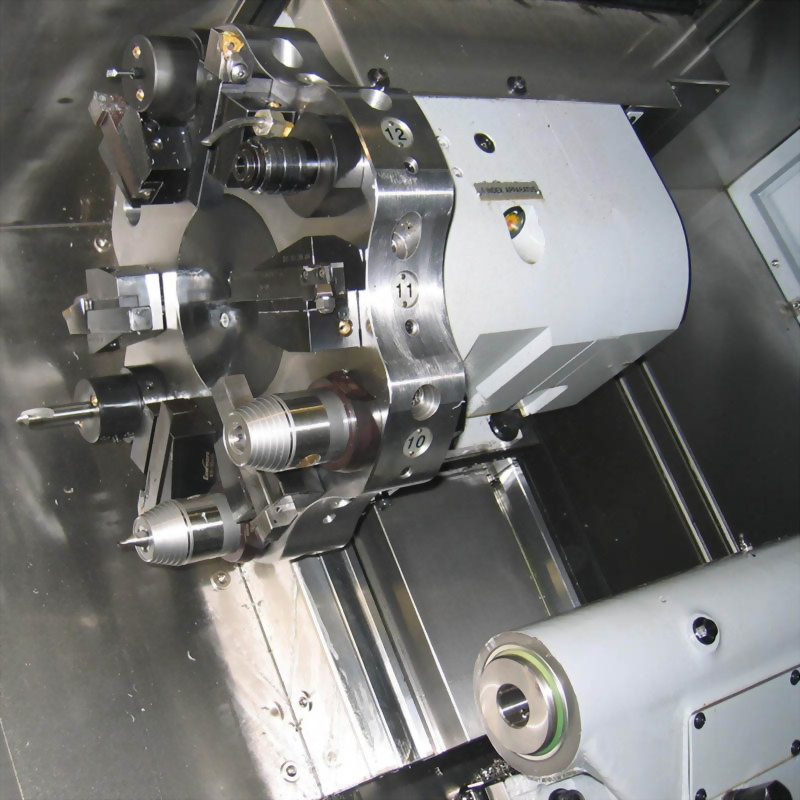

TURRET
Tooling system BOT -
Turret driven type Hydraulic/Servo Servo mechanical
Number of tools station 8 10 12 12
Square tool shank size mm 25 25 20 20
Round tool shank size mm 32 32
Max. Rotary Tool Speed rpm - 6000
Rotary Tool power kW - 4.5
TAILSTOCK
Tailstock body travel mm 545 545
Quill travel mm 80 80
Quill diameter mm 75 75
Quill taper MT# 4 4
DIMENSION
Machine dimension L x W x H m 2.9 x 1.6 x 1.8 2.9 x 1.6 x 1.9
Net weight kg 3600 3600




NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-T controller 1 Upgrade to 15" Colored LCD monitor
2 RJ-45 interface 2 Collet chuck
3 Rigid tapping 3 Tool setter
4 Heat exchanger for electric cabinet 4 Parts catcher and parts conveyor
5 10.4" Colored LCD monitor 5 Bar feeder interface (7 or 24 pins)
6 Lubrication system 6 Bar feeder
7 4-bar coolant system 7 Oil mist collector
8 Three-color warning light 8 Oil-coolant skimmer
9 Air cooler for electric cabinet
10 Transformer
11 CE version
12 Loader interface
13 Gantry loader system
14 Automatic door
15 Linear scale
