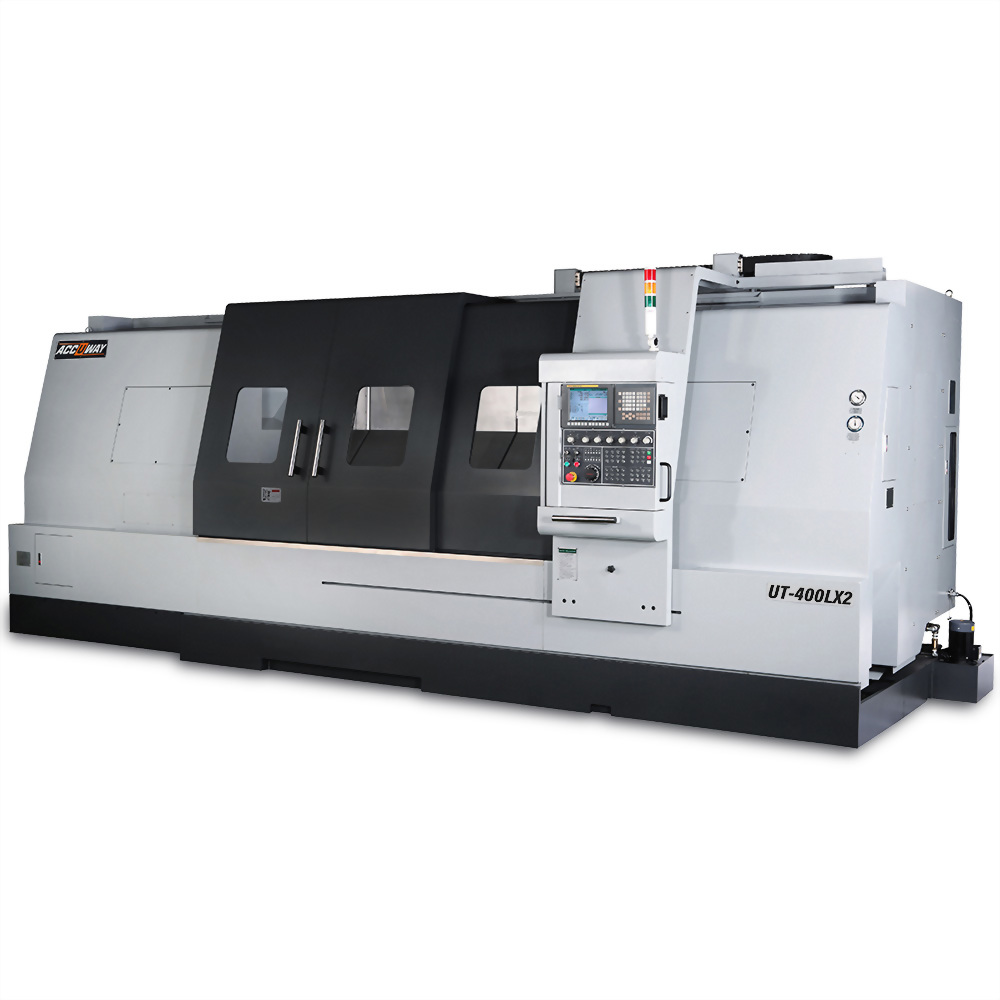

UT-400LX2
Super Heavy Duty Turning Center
| ITEM/MODEL | UT-400LX2 | ||||
| Controller | FANUC 0i-T | ||||
| CAPACITY | |||||
| Swing over bed | mm | 900 | |||
| Swing over saddle | mm | 745 | |||
| Max. turning diameter | mm | 700 | |||
| Max. turning length | mm | 2080 | |||
| Guide way type | Box | ||||
| SPINDLE | |||||
| Spindle nose taper | ASA | A2-11 | A2-15 | ||
| Chuck diameter | inch | 15 | 20 | 20 | 24 |
| Spindle hole diameter | mm | 131 | 205 | 235 | 258 |
| Spindle speed | rpm | 2000 | 1500 | 850 | 800 |
| Spindle motor power(Cont. / 30min) | kW | 30/37 (37/45)+2-step gearbox | |||
| TRAVELS | |||||
| X-axis Travel | mm | 380 | |||
| Z-axis Travel | mm | 2200 | |||
| Y-axis Travel | mm | - | |||
| FEED RATES | |||||
| X-axis Rapid Traverse Rate | m/min | 20 | |||
| Z-axis Rapid Traverse Rate | m/min | 15 | |||
| Y-axis Rapid Traverse Rate | m/min | - | |||
| TURRET | |||||
| Tooling system | BOT | ||||
| Turret driven type | Servo mechanical | ||||
| Number of tools | station | 12 | |||
| Square tool shank size | mm | 32 | |||
| Round tool shank size | mm | 50 | |||
| Max. Rotary Tool Speed | rpm | - | |||
| Rotary Tool power | kW | - | |||
| TAILSTOCK | |||||
| Tailstock body travel | mm | 2050 | |||
| Quill travel | mm | 150 | |||
| Quill diameter | mm | 160 | |||
| Quill taper | MT# | 6 | |||
| DIMENSION | |||||
| Machine dimension L x W x H | m | 6.9 x 2.8 x 2.7 | |||
| Net weight | kg | 17500 | |||
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | RJ-45 interface | 2 | Tool setter |
| 3 | Rigid tapping | 3 | Oil mist collector |
| 4 | Heat exchanger for electric cabinet | 4 | Oil-coolant skimmer |
| 5 | 10.4" Colored LCD monitor | 5 | Air cooler for electric cabinet |
| 6 | Lubrication system | 6 | A2-15 spindle headstock and 205 mm spindle through hole |
| 7 | 4-bar coolant system | 7 | A2-15 spindle headstock and 235 mm spindle through hole |
| 8 | Three-color warning light | 8 | A2-15 spindle headstock and 258 mm spindle through hole |
| 9 | Gear box | 9 | APT 60 power turret + CS contouring control |
| 10 | APT 60 power turret + CF Axis Control | ||
| 11 | Steady rest | ||
| 12 | Transformer | ||
| 13 | CE version | ||
| 14 | Auto door | ||
| 15 | Linear scale |
