UZ-2000T2Y

Multi-Axis Machine for Mass Production

Multi-axis Machine for Mass Production
Increase Your Working Range and Large Working Area with Y-axis on Upper & Lower Turrets



· Gear-driven BMT live tool turret

· Opposed two-spindle, 2-turret construction

· Y-axis on upper turrets 110 <+65mm, -45mm>

· 16+16 tools number of tool station

· One-piece bed, 45° slant-bed structural design

· Distance between spindles 1,150mm

· Max. Swing:  660  mm

· Max. Length:  810  mm

· Spindle:  A2-5 in  5000 (Built-in), 3500 / 2500(Belt) rpm

· Bar capacity:  52 mm

· Main spindle motor 11/15kW(Built-in) or 15/18.5kW(Belt)、Sub spindle motor 11/15kW(Built-in)
ITEM/MODEL UZ-2000T2Y

Controller FANUC 0i-T
Swing over bed mm 660
Swing over saddle mm 620
Max. Turning Diameter(Main-Spindle) mm 320

Max. Turning Diameter(Sub-Spindle)
mm 320
Max. turning length mm 810
MAIN SPINDLE
Spindle Nose ASA A2-5(A2-8 / A2-11)
Chuck Diameter inch 6(10 / 15)
Spindle Speed rpm 5000(Built-in), 3500 / 2500(Belt)
Spindle Motor Power(Cont. /30min) kW 11 / 15 (15 / 18.5)
Bar Capacity mm 52(78 / 105)
SUB SPINDLE
Spindle Nose ASA A2-5(A2-6)
Chuck Diameter inch 6(8)
Spindle Speed rpm 5000 / 4500
Spindle Motor Power(Cont. /30min) kW 11/15
Bar Capacity mm 52(65)
TRAVELS
X-axis Travel mm X1/X2:210
Z-axis Travel mm Z1/Z2 :840
Y-axis Travel mm -45/+60
B-axis Travel mm 920
FEEDS
X-axis Rapid Traverse Rate m/min 24
Z-axis Rapid Traverse Rate m/min 40
Y-axis Rapid Traverse Rate m/min 20
Tooling system BMT 40
Turret driven type Servo mechanical
Number of tools station 16+16
Square tool shank size mm 20
Round tool shank size mm 32
Rotary tool spindle power kW 4.5
Rotary tool spindle speed rpm 6000

DIMENSION


Machine dimension L x W x H m 4.7 x 2.4 x 2.3
Net weight kg 11000



NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES

1 FANUC 0i-T controller 1 Unloader & conveyor for finished parts
2 RS-232 interface 2 Upgrade to 10.4" Colored LCD monitor
3 Rigid tapping 3 Collet chuck
4 Heat exchanger for electric cabinet 4 Tool setter
5 8.4" Colored LCD monitor 5 Parts catcher and parts conveyor
6 Lubrication system 6 Bar feeder interface (7 or 24 pins)
7 4-bar coolant system 7 Bar feeder
8 Three-color warning light 8 Oil mist collector

9 Oil-coolant skimmer
10 Air cooler for electric cabinet
11 Transformer
12 CE version
13 Loader interface
14 Gantry loader system
15 Automatic door
16 Axial rotary tool holder
17 Radial rotary tool holder
18 Linear scale
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Twin Spindle Twin Turret

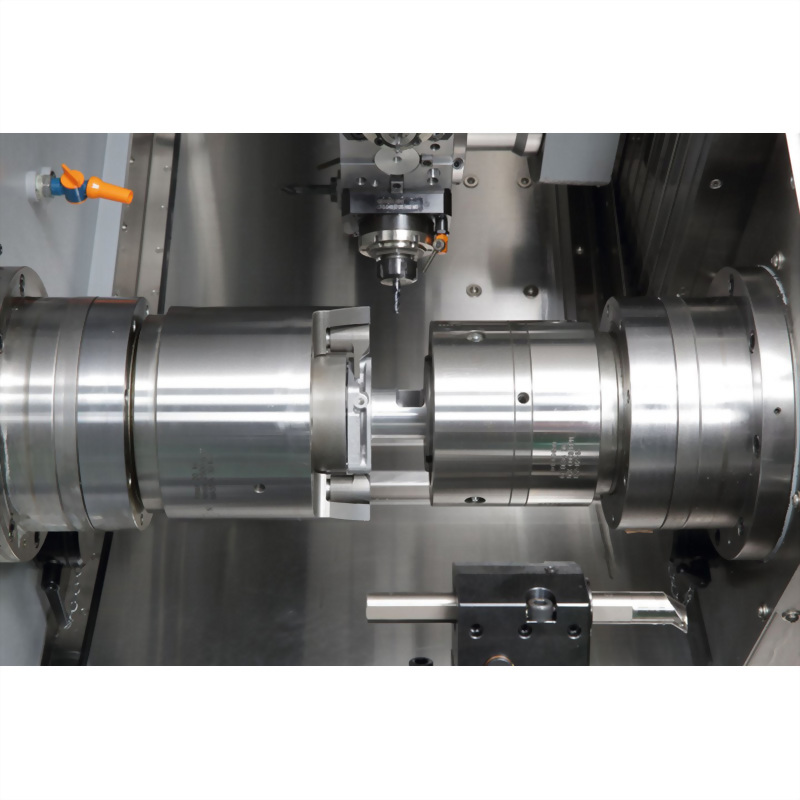

This machine offers multi-axis machining of complex parts with twin 16 tool power turrets. Twin turrets and a shared Y-axis allow you to produce complex parts with high precision without having to transfer the part. Higher productivity coupled with high accuracy equates to higher throughput and profit potential for today's competitive machine shops.

Y-Axis Machining

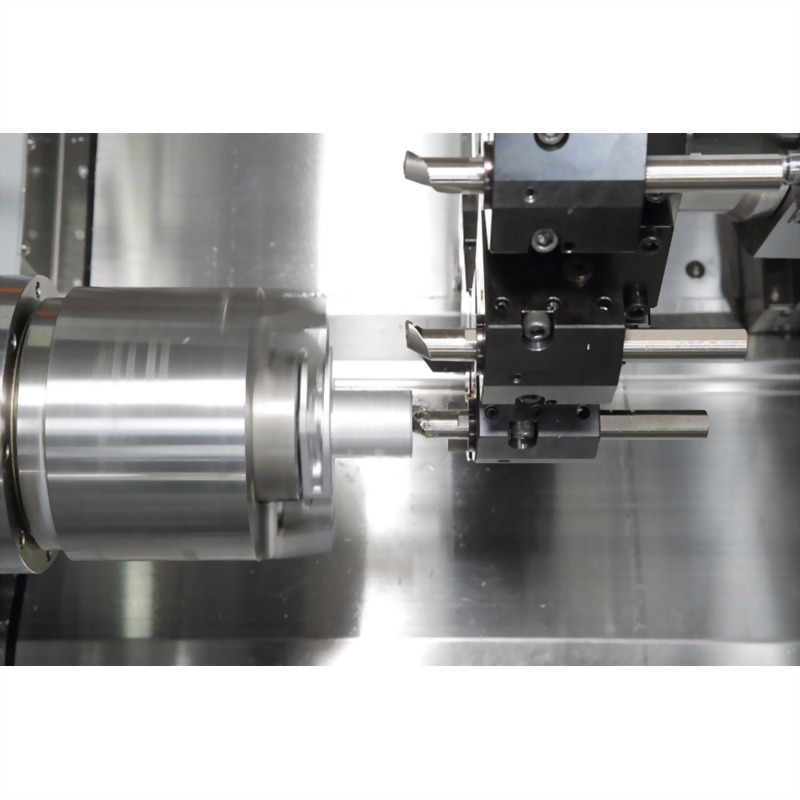

The Y-axis control and simultaneous machining capability produces a significant advantage over standard machines to cover a wide range of complex precision parts.

Milling Flats on Circumference with Y Axis Control
With the Y-axis control flats can now be machined on the circumference without any concavity.

With Y-Axis Control
Flats can be machined with precision since there is Y-axis control to precisly position the cutting tool.

With C-Axis Control
Flats cannot be machined if there is no Y-axis control to precisly position the cutting tool in the correct orientation on the inner circumference.
