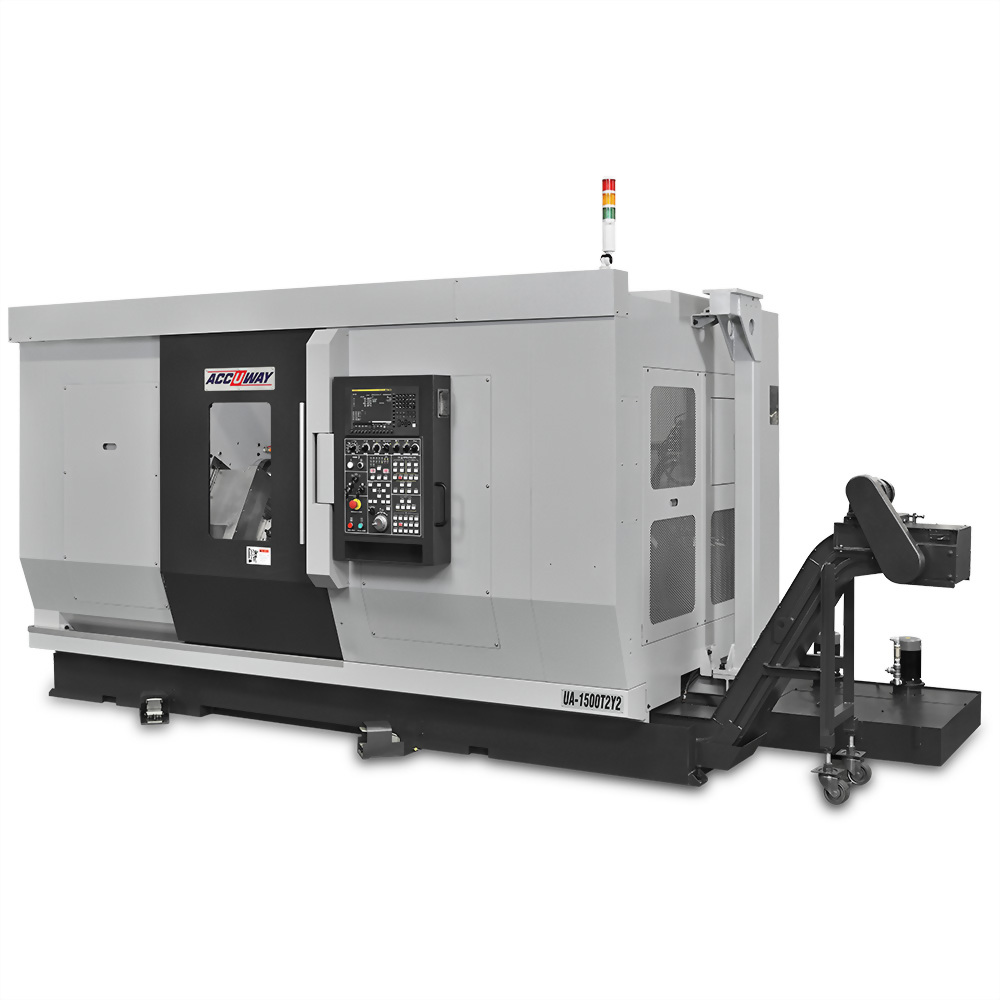

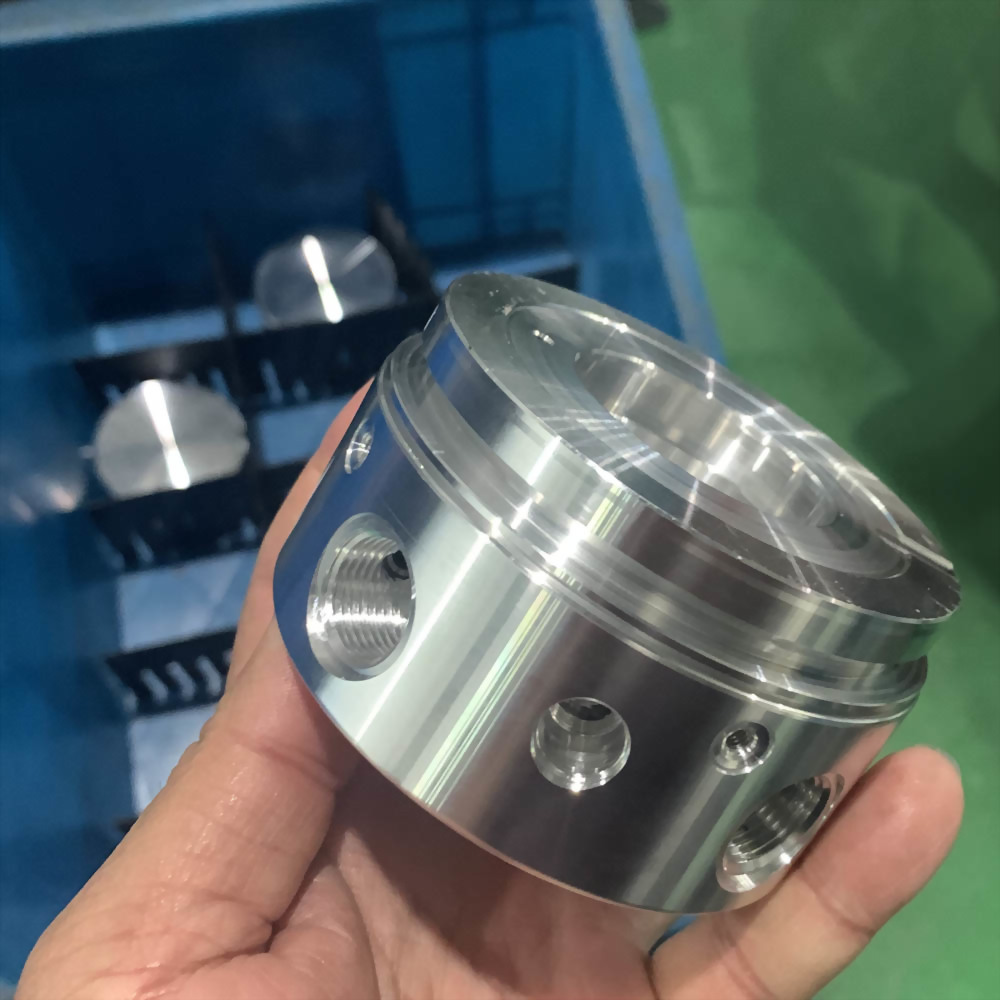

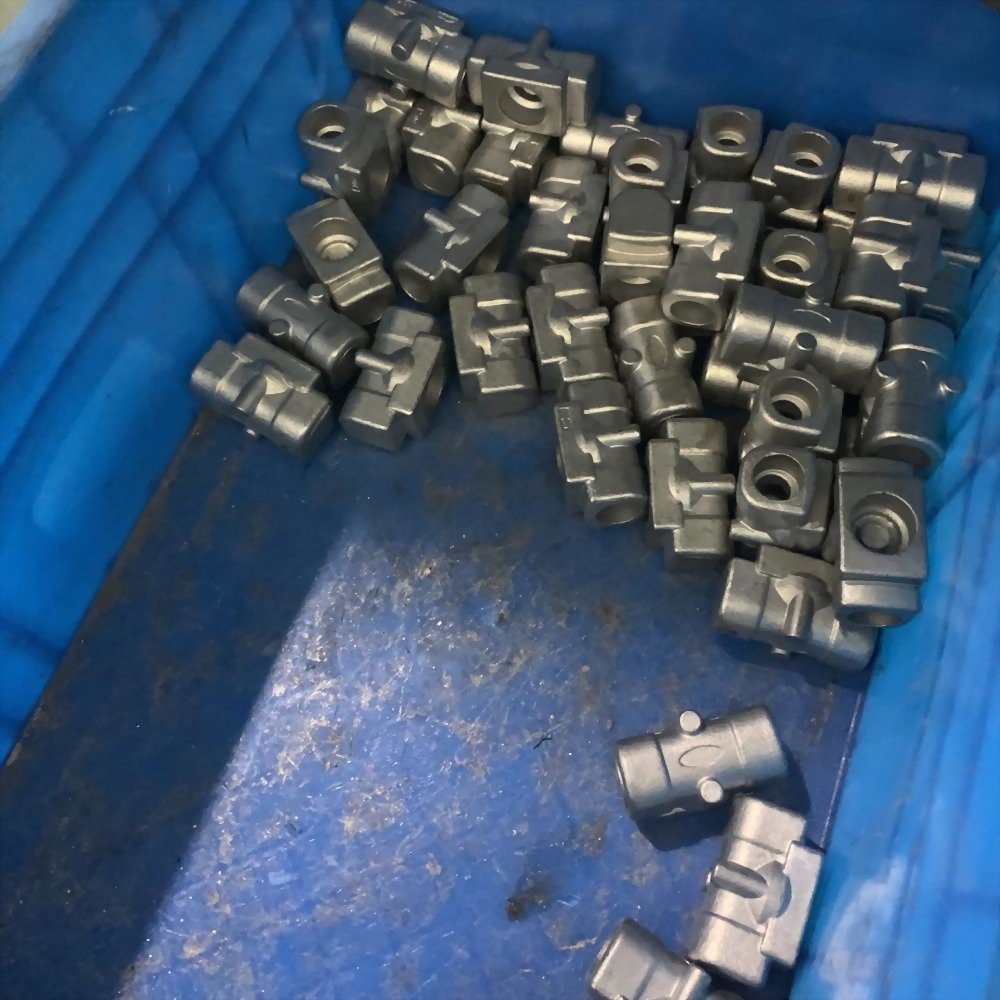

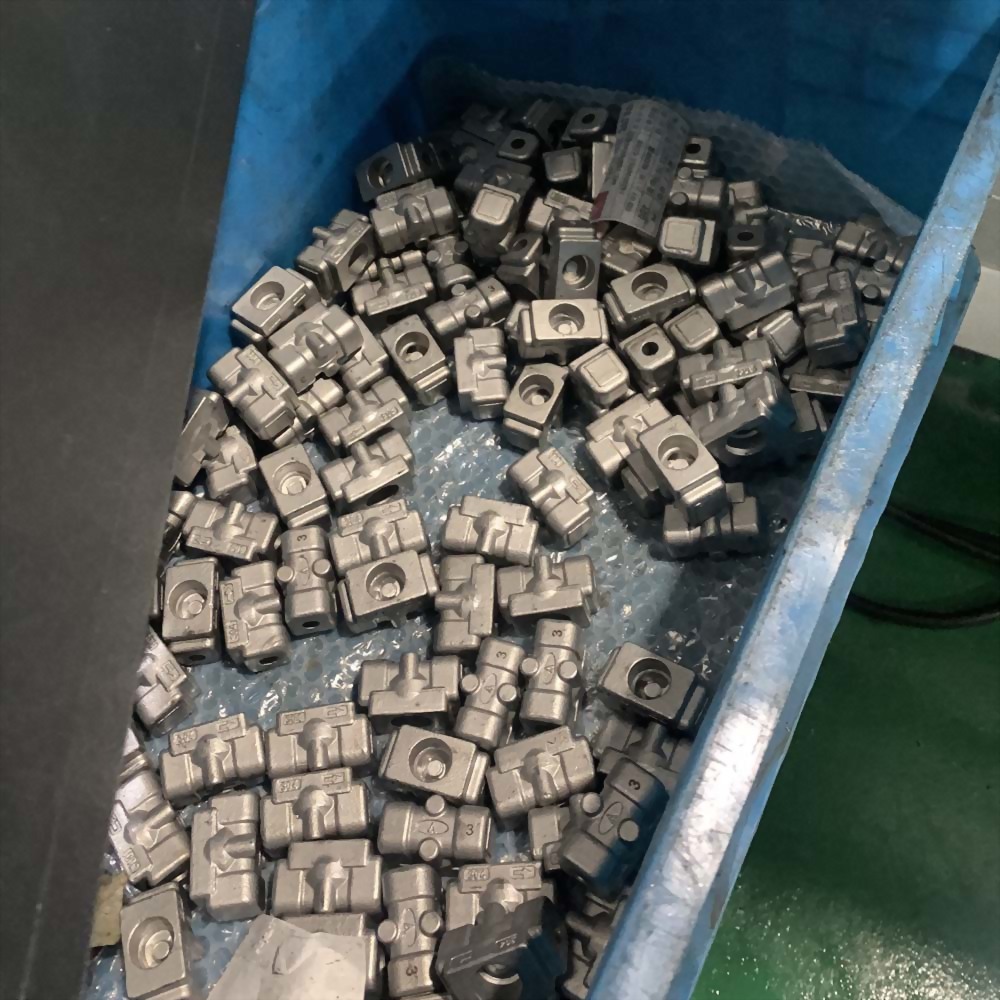

UA-1500T2Y2
Multi-Axis Machine for Mass Production
| ITEM/MODEL | UA-1500T2Y2 | ||
| Controller | FANUC 0i-T | ||
| CAPACITY | |||
| Swing over bed | mm | 460 | |
| Swing over saddle | mm | 400 | |
| Max. Turning Diameter (SP1) | mm | 200 | |
| Max. Turning Diameter (SP2) | mm | 200 | |
| Max. turning length | mm | 500 | |
| Guide way type | Linear + Box | ||
| SPINDLE 1 | |||
| Spindle Nose | ASA | A2-6 | |
| Chuck Diameter | inch | 6 | 8 |
| Bar Capacity | mm | 52 | |
| Spindle Speed | rpm | 4500 | |
| Spindle Motor Power(Cont. /30min) | kW | 11/15 | |
| SPINDLE 2 | |||
| Spindle Nose | ASA | A2-6 | |
| Chuck Diameter | inch | 6 | 8 |
| Bar Capacity | mm | 52 | |
| Spindle Speed | rpm | 4500 | |
| Spindle Motor Power(Cont. /30min) | kW | 7.5/11 | |
| TRAVELS | |||
| X-axis Travel | mm | X1/X2 : 160.5 | |
| Z-axis Travel | mm | Z1/Z2 : 565 | |
| Y-axis Travel | mm | Y1: ±50 / Y2:±35 | |
| B-axis Travel | mm | 650 | |
| FEED RATES | |||
| X-axis Rapid Traverse Rate | m/min | 20 | |
| Z-axis Rapid Traverse Rate | m/min | 36 | |
| Y-axis Rapid Traverse Rate | m/min | 12 | |
| B-axis Rapid Traverse Rate | m/min | 40 | |
| TURRET | |||
| Tooling system | BMT-55N | ||
| Turret driven type | Servo mechanical | ||
| Number of tools | station | 15+15 | |
| Square tool shank size | mm | 20(25) | |
| Round tool shank size | mm | 25(32) | |
| Max. Rotary Tool Speed | rpm | 6000 | |
| Rotary Tool power | kW | 3.7/5.5 | |
| DIMENSION | |||
| Machine dimension L x W x H | m | 4 x 2.4 x 2.4 | |
| Net weight | kg | 10500 | |
