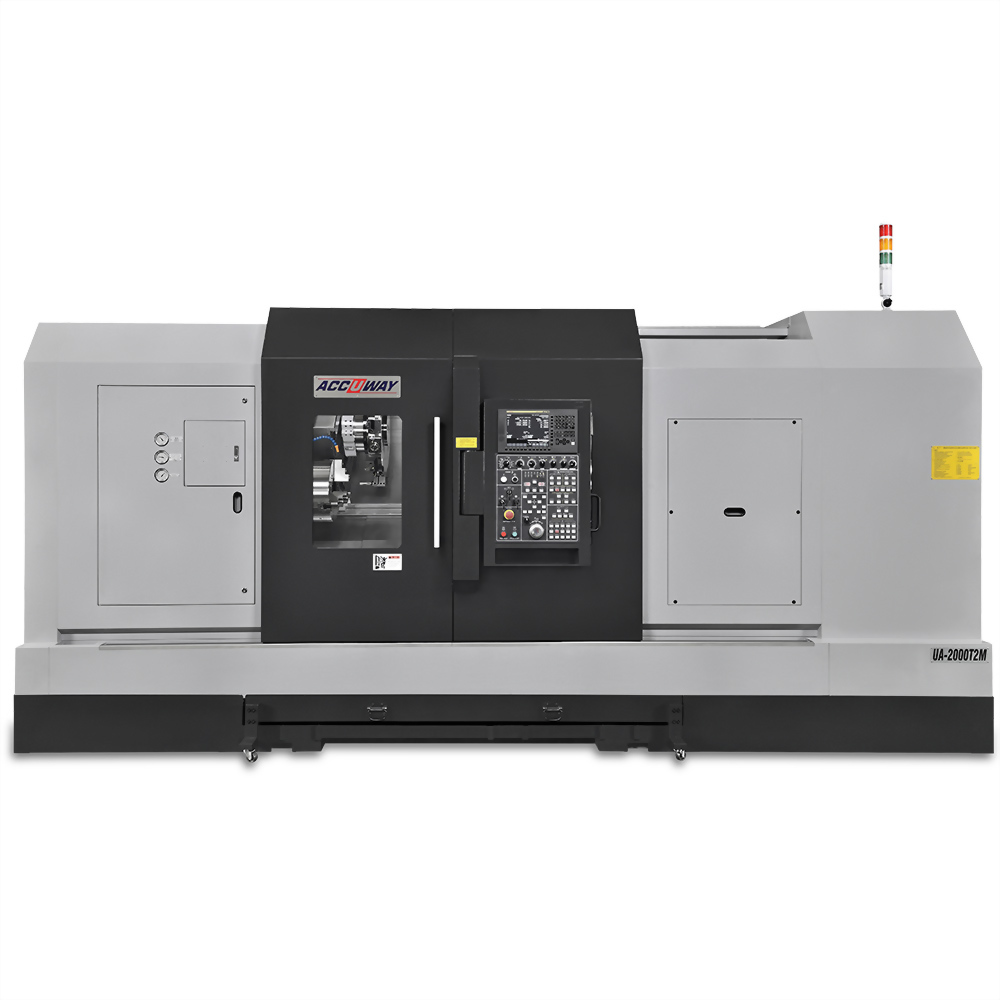

UA-2000T2M / UA-2000T2MB

Multi-Axis Machine for Mass Production

ITEM/MODEL UA-2000T2M UA-2000T2MB
Controller FANUC 0i-T
CAPACITY
Swing over bed mm 660 660
Swing over saddle mm 620 620
Max. Turning Diameter (SP1) mm 340 340
Max. Turning Diameter (SP2) mm 340 340
Max. turning length mm 510 440
Guide way type Linear + Box
SPINDLE 1
Spindle Nose ASA A2-8 A2-11
Chuck Diameter inch 8 12 15
Bar Capacity mm 75 75 105
Spindle Speed rpm 3500(3 jaw) 2500(3 jaw) 2500(3 jaw)
Spindle Motor Power(Cont. /30min) kW 15/18.5 15/18.5
SPINDLE 2
Spindle Nose ASA A2-8 A2-11
Chuck Diameter inch 8 12 15
Bar Capacity mm 75 75 105
Spindle Speed rpm 3500(3 jaw) 2500(3 jaw) 2500(3 jaw)
Spindle Motor Power(Cont. /30min) kW 11/15 15/18.5
TRAVELS
X-axis Travel mm X1/X2: 210 X1/X2: 210
Z-axis Travel mm Z1/Z2: 550 Z1/Z2: 450
Y-axis Travel mm - -
B-axis Travel mm 1400 1200
FEED RATES
X-axis Rapid Traverse Rate m/min 20 20
Z-axis Rapid Traverse Rate m/min 30 30
Y-axis Rapid Traverse Rate m/min - -
B-axis Rapid Traverse Rate m/min 30 30
TURRET
Tooling system BMT-55N
Turret driven type Servo mechanical
Number of tools station 16+16 16+16
Square tool shank size mm 20 20
Round tool shank size mm 32 32
Max. Rotary Tool Speed rpm 6000 6000
Rotary Tool power kW 3.7/5.5 3.7/5.5
DIMENSION
Machine dimension L x W xH m 6.0 x 2.4 x 2.4 6.0 x 2.4 x 2.4
Net weight kg 11500 13000
