JL-51T2Y

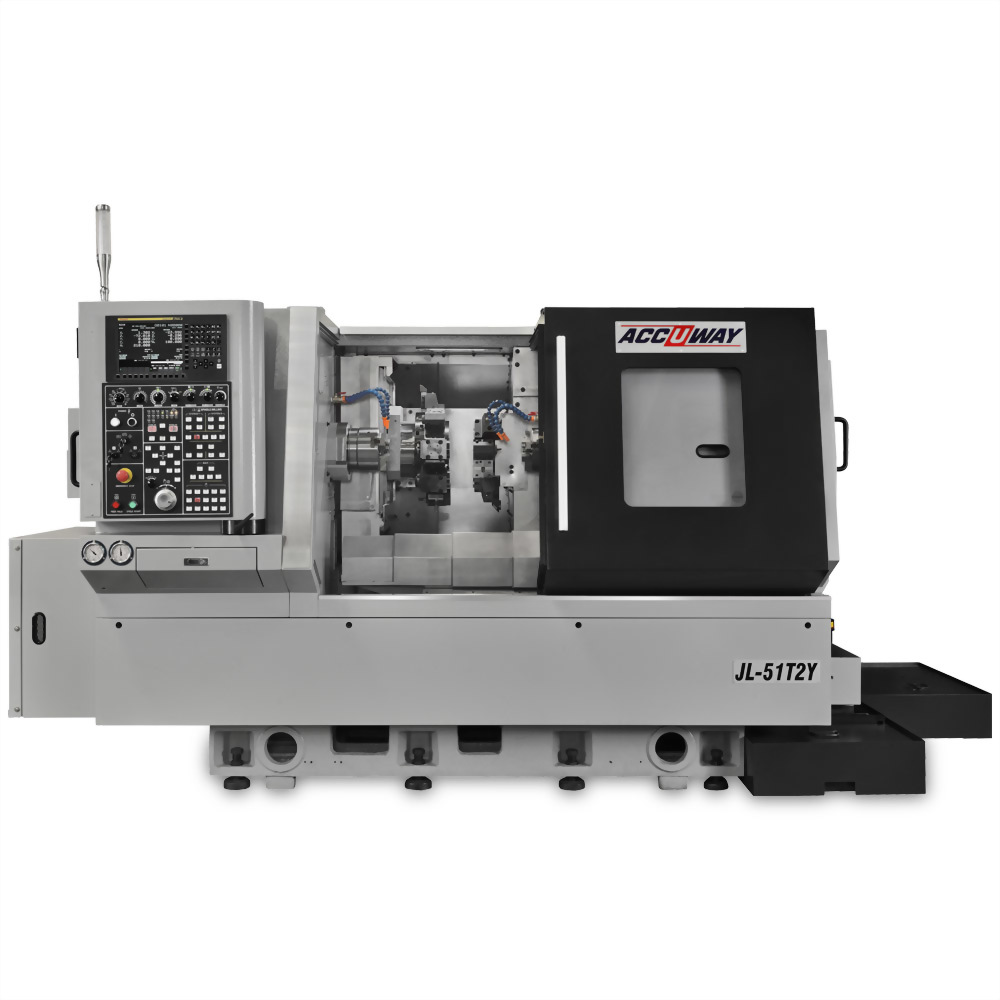

Compact Multi-Axis Turn-Mill Complex Center
| ITEM/MODEL | JL-51T2Y | ||
| Controller | FANUC 0i-T | ||
| CAPACITY | |||
| Max. Turning Diameter(SP1) | mm | 160 | |
| Max. Turning Diameter(SP2) | mm | 100 | |
| Max. turning length | mm | 170 | |
| Guide way type | Linear + Box | ||
| SPINDLE 1 | |||
| Spindle Nose | ASA | A2-6 | |
| Chuck Diameter | inch | 6 | 8 |
| Bar Capacity | mm | 52 | |
| Spindle Speed | rpm | 5000 | |
| Spindle Motor Power(Cont. /30min) | kW | 11/15 | |
| SPINDLE 2 | |||
| Spindle Nose | ASA | A2-5 | |
| Chuck Diameter | inch | 6 | 8 |
| Bar Capacity | mm | 44 | |
| Spindle Speed | rpm | 6000 | |
| Spindle Motor Power(Cont. /30min) | kW | 7.5/11 | |
| TRAVELS | |||
| X1/X2 axis Travel | mm | 165/85 | |
| Z1/Z2 axis Travel | mm | 220/590 | |
| Y-axis Travel | mm | ±40 | |
| FEED RATES | |||
| X1/X2 axis Rapid Traverse Rate | m/min | 20 | |
| Z1/Z2 axis Rapid Traverse Rate | m/min | 30 | |
| Y-axis Rapid Traverse Rate | m/min | 12 | |
| TURRET | |||
| Tooling system | BMT-55N power+servo | ||
| Number of tools | station | 12+8 | |
| Square tool shank size | mm | 25 | |
| Round tool shank size | mm | 32 | |
| Max. Rotary Tool Speed | rpm | 6000 | |
| Rotary Tool power | kW | 2.2/3.7 | |
| DIMENSION | |||
| Machine dimension L x W xH | m | 2.9 x 1.8 x 1.7 | |
| Net weight | kg | 6500 | |
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Unloader & conveyor for finished parts |
| 2 | RJ-45 interface | 2 | Upgrade to 15" Colored LCD monitor |
| 3 | Rigid tapping | 3 | Collet chuck |
| 4 | Heat exchanger for electric cabinet | 4 | Tool setter |
| 5 | 10.4" Colored LCD monitor | 5 | Bar feeder interface (7 or 24 pins) |
| 6 | 4-bar coolant system | 6 | Bar feeder |
| 7 | Lubrication system | 7 | Oil mist collector |
| 8 | Three-color warning light | 8 | Oil-coolant skimmer |
| 9 | Air cooler for electric cabinet | ||
| 10 | Transformer | ||
| 11 | CE version | ||
| 12 | Loader interface | ||
| 13 | Gantry loader system | ||
| 14 | Automatic door | ||
| 15 | Axial rotary tool holder | ||
| 16 | Radial rotary tool holder | ||
| 17 | Linear scale |
