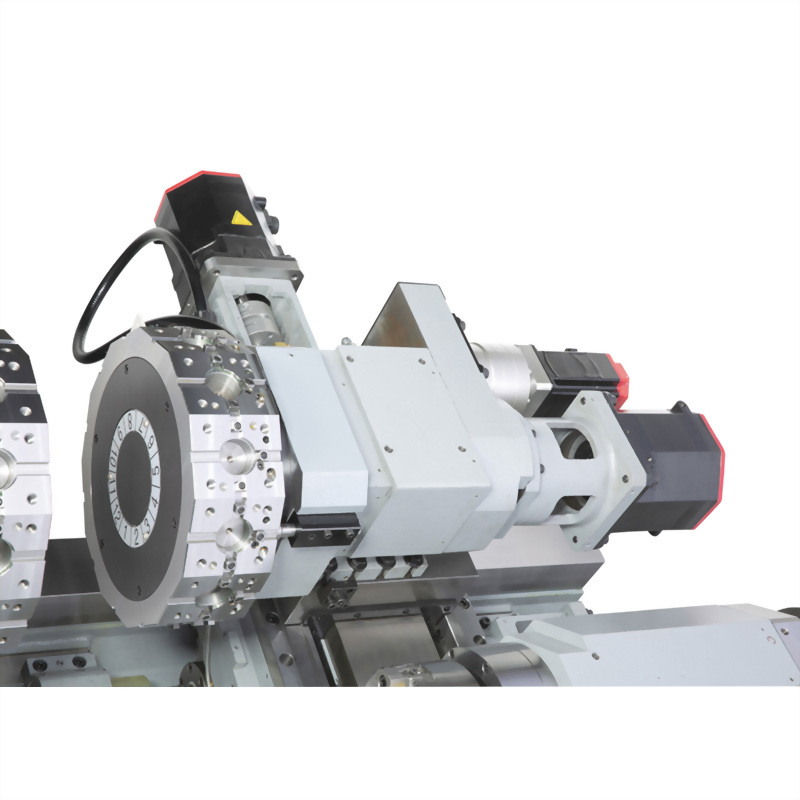

UT-2000T2M
Slant Bed Turning Center
| ITEM/MODEL | UT-2000T2M | |
| Controller | FANUC 0i-T | |
| CAPACITY | ||
| Swing over bed | mm | 600 |
| Swing over saddle | mm | 260 |
| Max. Turning Diameter (SP1) | mm | 220 |
| Max. Turning Diameter (SP2) | mm | 220 |
| Max. turning length (SP1) | mm | 240 |
| Max. turning length (SP2) | mm | 350 |
| Guide way type | Box | |
| SPINDLE 1 | ||
| Spindle Nose | ASA | A2-6 |
| Chuck Diameter | inch | 8 |
| Bar Capacity | mm | 52 |
| Spindle Speed | rpm | 4500 |
| Spindle Motor Power(Cont. /30min) | kW | 11/15 |
| SPINDLE 2 | ||
| Spindle Nose | ASA | A2-5 |
| Chuck Diameter | inch | 6 |
| Bar Capacity | mm | 44 |
| Spindle Speed | rpm | 6000 |
| Spindle Motor Power(Cont. /30min) | kW | 5.5/7.5 |
| TRAVELS | ||
| X-axis Travel | mm | X1/X2 : 220 |
| Z-axis Travel | mm | Z1/Z2 : 350 |
| Y-axis Travel | mm | - |
| B-axis Travel | mm | 850 |
| FEED RATES | ||
| X-axis Rapid Traverse Rate | m/min | 20 |
| Z-axis Rapid Traverse Rate | m/min | 20 |
| Y-axis Rapid Traverse Rate | m/min | - |
| B-axis Rapid Traverse Rate | m/min | 20 |
| TURRET | ||
| Tooling system | BMT-40 | |
| Turret driven type | Servo mechanical | |
| Number of tools | station | 12+12 |
| Square tool shank size | mm | 20 |
| Round tool shank size | mm | 32 |
| Max. Rotary Tool Speed | rpm | 6000 |
| Rotary Tool power | kW | 3.7/5.5 |
| DIMENSION | ||
| Machine dimension L x W x H | m | 4.7 x 2.1 x 2 |
| Net weight | kg | 7000 |
