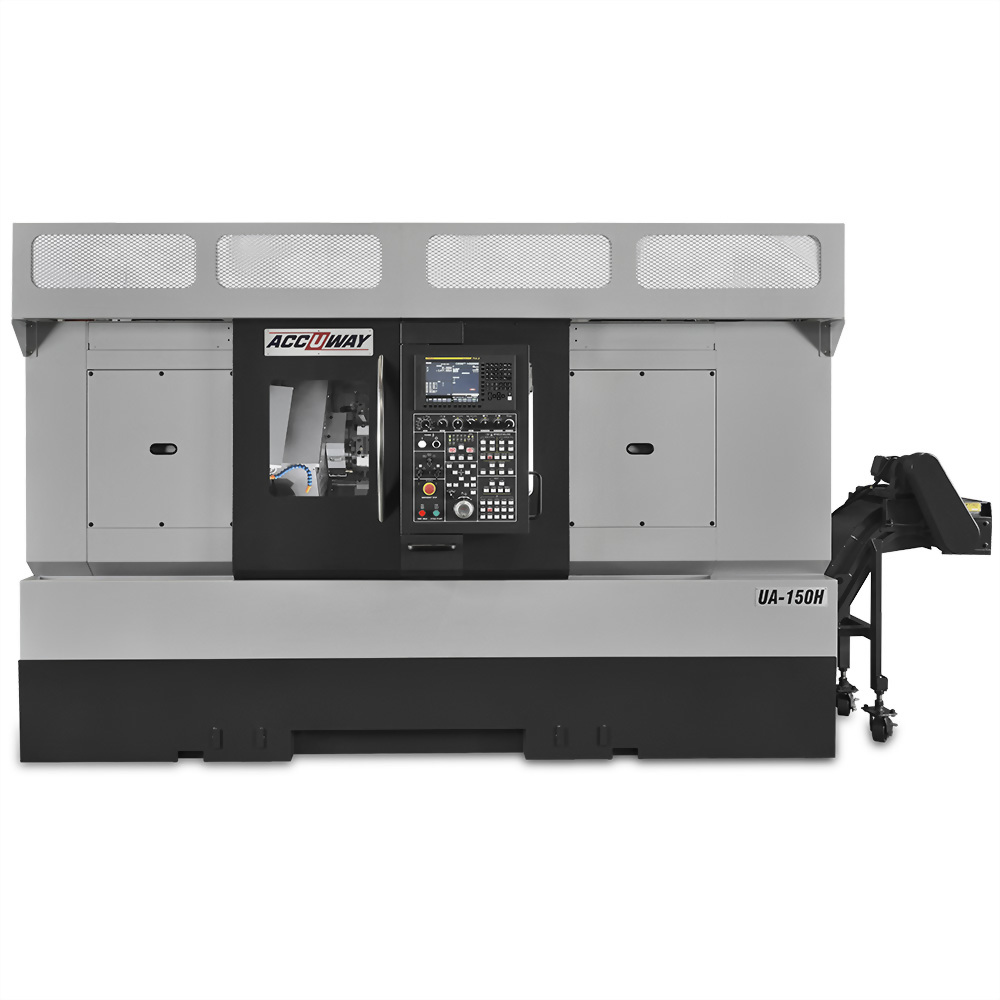

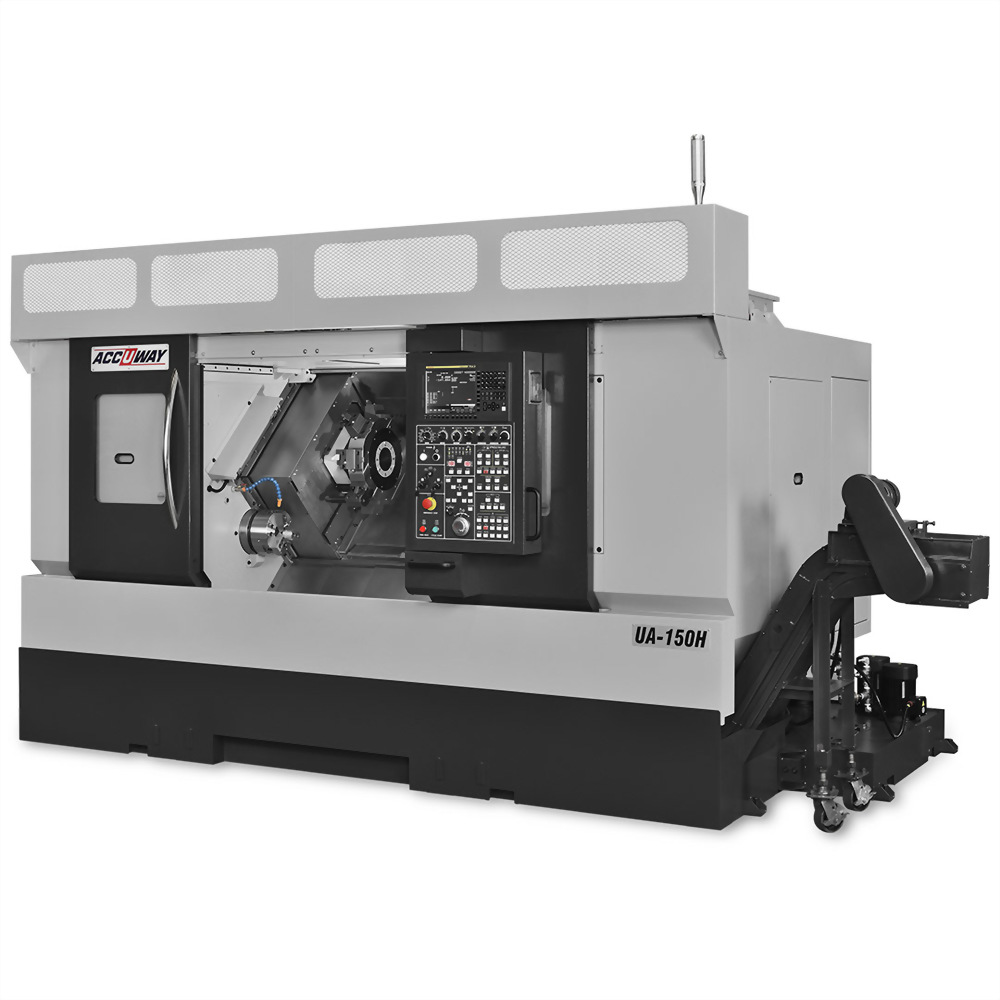

UA-150H
Multi-axis Slant Bed Turning Center
| ITEM/MODEL | UA-150H | |
| Controller | FANUC 0i-TF | |
| CAPACITY | ||
| Swing over bed | mm | 600 |
| Swing over saddle | mm | 260 |
| Max. Turning Diameter (SP1) | mm | 250 |
| Max. Turning Diameter (SP2) | mm | 250 |
| Max. turning length | mm | 240 |
| Guide way type | Box | |
| SPINDLE 1 | ||
| Spindle Nose | ASA | A2-6 |
| Chuck Diameter | inch | 6 |
| Bar Capacity | mm | 52 |
| Spindle Speed | rpm | 4500 |
| Spindle Motor Power(Cont. /30min) | kW | 11/15 |
| SPINDLE 2 | ||
| Spindle Nose | ASA | A2-6 |
| Chuck Diameter | inch | 6 |
| Bar Capacity | mm | 52 |
| Spindle Speed | rpm | 4500 |
| Spindle Motor Power(Cont. /30min) | kW | 7.5/11 |
| TRAVELS | ||
| X1/X2 axis Travel | mm | 220 |
| Z1/Z2 axis Travel | mm | 350 |
| Y-axis Travel | mm | - |
| B-axis Travel | mm | 900 |
| FEED RATES | ||
| X-axis Rapid Traverse Rate | m/min | 20 |
| Z-axis Rapid Traverse Rate | m/min | 24 |
| Y-axis Rapid Traverse Rate | m/min | - |
| B-axis Rapid Traverse Rate | m/min | 20 |

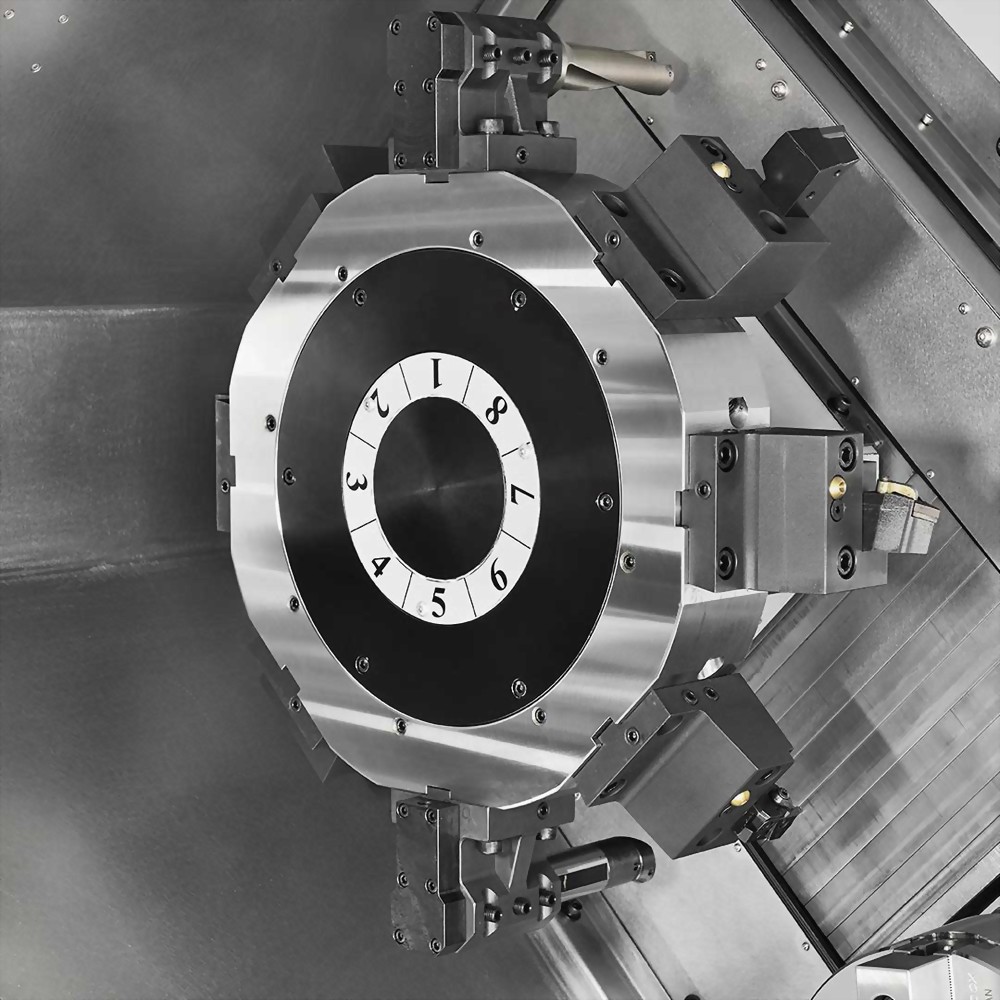

| TURRET | ||
| Tooling system | BMT-55N Servo | |
| Turret driven type | Servo mechanical | |
| Number of tools | station | 12+12 |
| Square tool shank size | mm | 25 |
| Round tool shank size | mm | 32 |
| Max. Rotary Tool Speed | rpm | - |
| Rotary Tool power | kW | - |
| DIMENSION | ||
| Machine dimension L x W xH | m | 3.9 x 2.1 x1.9 |
| Net weight | kg | 8000 |
