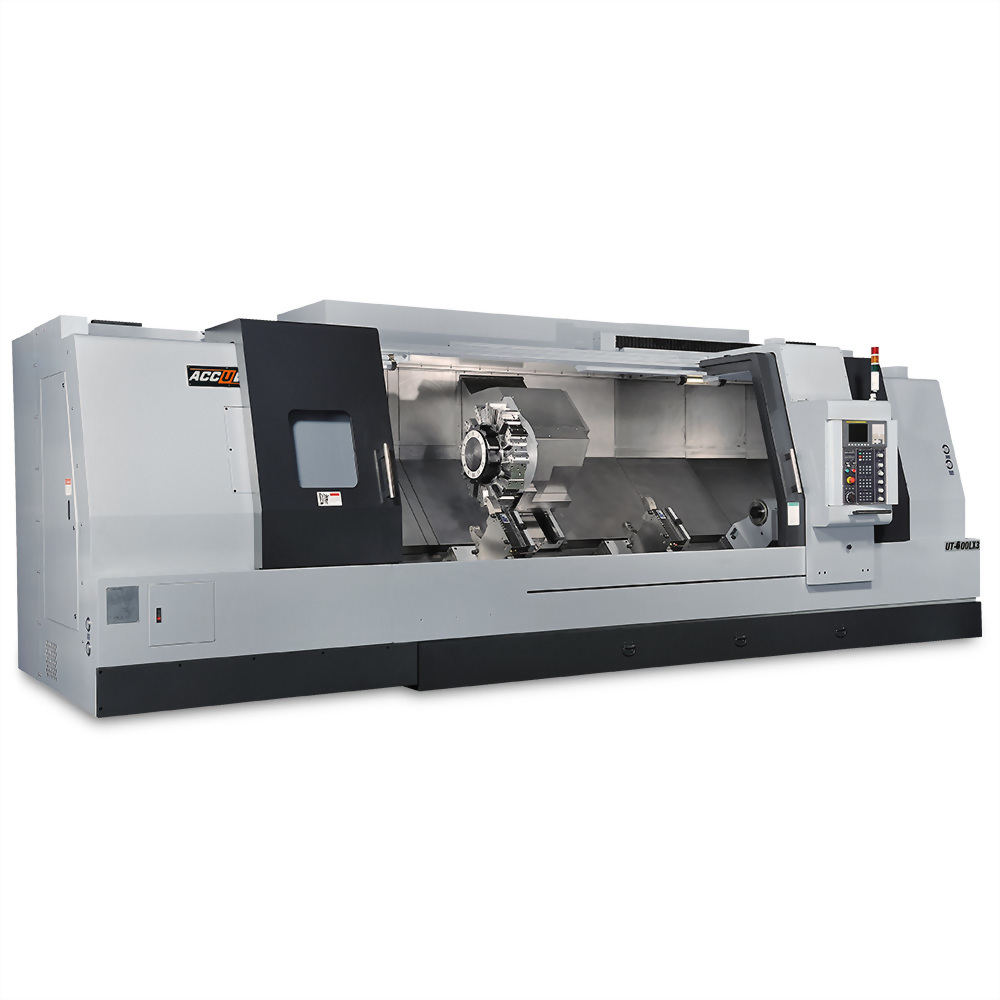

UT-600LX3
Super Heavy Duty Turning Center
| ITEM/MODEL | UT-600LX3 | |||||
| Controller | FANUC 0i-T | |||||
| CAPACITY | ||||||
| Swing over bed | mm | 1030 | ||||
| Swing over saddle | mm | 950 | ||||
| Max. turning diameter | mm | 900 | ||||
| Max. turning length | mm | 2900 | ||||
| Guide way type | Box | |||||
| SPINDLE | ||||||
| Spindle nose taper | ASA | A2-15 | A2-20 | |||
| Chuck diameter | inch | 20 | 20 | 24 | 32 | 32 |
| Spindle hole diameter | mm | 205 | 235 | 258 | 320 | 375 |
| Spindle speed | rpm | 1500 | 850 | 800 | 400 | 300 |
| Spindle motor power(Cont. / 30min) | kW | 30/37 (37/45)+2-step gearbox | ||||
| TRAVELS | ||||||
| X-axis Travel | mm | 495 | ||||
| Z-axis Travel | mm | 3100 | ||||
| Y-axis Travel | mm | - | ||||
| FEED RATES | ||||||
| X-axis Rapid Traverse Rate | m/min | 20 | ||||
| Z-axis Rapid Traverse Rate | m/min | 10 | ||||
| Y-axis Rapid Traverse Rate | m/min | - | ||||
| TURRET | ||||||
| Tooling system | BOT | |||||
| Turret driven type | Servo mechanical | |||||
| Number of tools | station | 12 | ||||
| Square tool shank size | mm | 32 | ||||
| Round tool shank size | mm | 50 | ||||
| Max. Rotary Tool Speed | rpm | - | ||||
| Rotary Tool power | kW | - | ||||
| TAILSTOCK | ||||||
| Tailstock body travel | mm | 2950 | ||||
| Quill travel | mm | 150 | ||||
| Quill diameter | mm | 160 | ||||
| Quill taper | MT# | 6 | ||||
| DIMENSION | ||||||
| Machine dimension L x W x H | m | 8 x 2.9 x 3 | ||||
| Net weight | kg | 21450 | ||||
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | RJ-45 interface | 2 | Tool setter |
| 3 | Rigid tapping | 3 | Oil mist collector |
| 4 | Heat exchanger for electric cabinet | 4 | Oil-coolant skimmer |
| 5 | 10.4" Colored LCD monitor | 5 | Air cooler for electric cabinet |
| 6 | Lubrication system | 6 | A2-15 spindle headstock and 235 mm spindle through hole |
| 7 | 4-bar coolant system | 7 | A2-15 spindle headstock and 258 mm spindle through hole |
| 8 | Three-color warning light | 8 | APT 60 power turret + CS contouring control |
| 9 | Gear box | 9 | APT 60 power turret + CF Axis Control |
| 10 | Steady rest | ||
| 11 | Transformer | ||
| 12 | CE version | ||
| 13 | Linear scale | ||
| 14 | Auto door |
