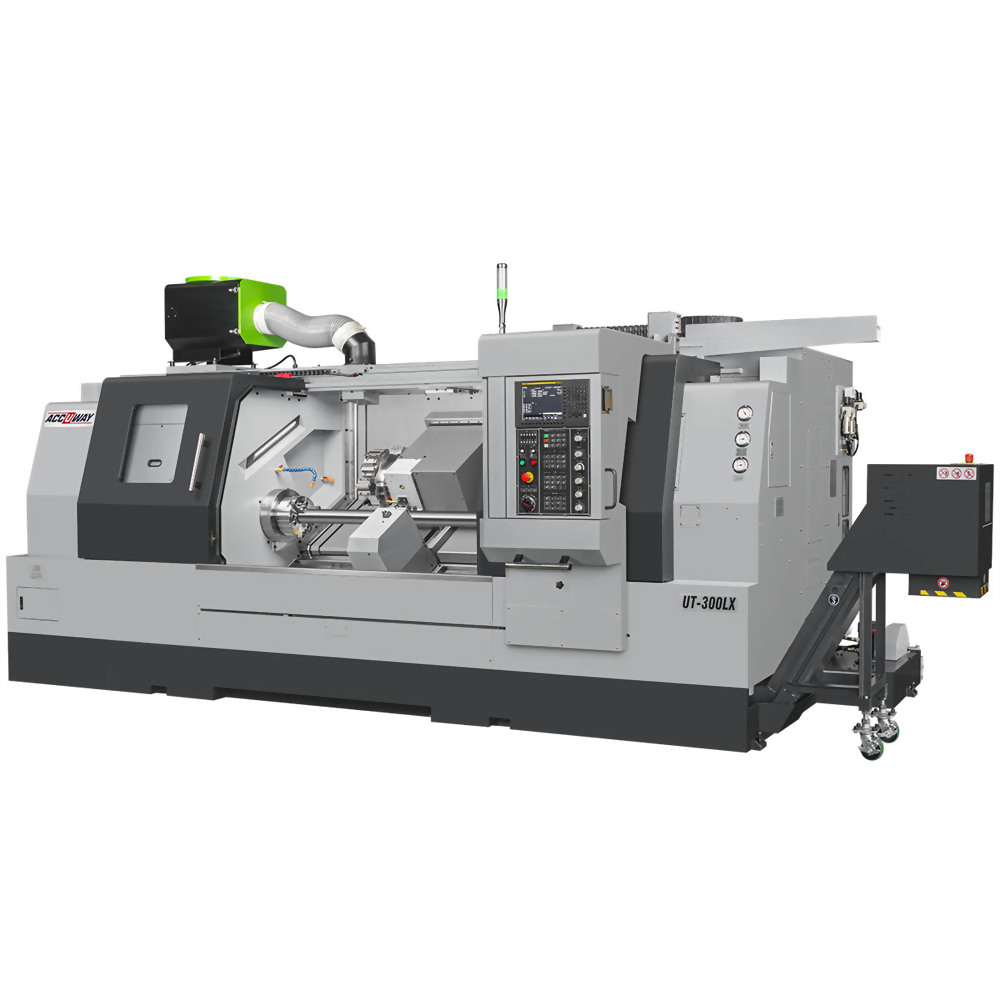

UT-300LX

Slant Bed Turning Center

ITEM/MODEL UT-300LX
Controller FANUC 0i-T
CAPACITY
Swing over bed mm 612
Swing over saddle mm 400
Max. turning diameter mm 500
Max. turning length mm 1680 1600
Guide way type Box
SPINDLE
Spindle nose taper ASA A2-8 A2-11
Chuck diameter inch 10 12 15
Bar capacity mm 75 90 105 116.5
Spindle speed rpm 3500 2700 2500 2000
Spindle motor power(Cont. / 30min) kW 15/18.5 (18.5/22)
TRAVELS
X-axis Travel mm 300
Z-axis Travel mm 1750
Y-axis Travel mm -
FEED RATES
X-axis Rapid Traverse Rate m/min 20
Z-axis Rapid Traverse Rate m/min 24
Y-axis Rapid Traverse Rate m/min -
TURRET
Tooling system BOT
Turret driven type Hydraulic/Servo
Number of tools station 12
Square tool shank size mm 25
Round tool shank size mm 40
Max. Rotary Tool Speed rpm -
Rotary Tool power kW -
TAILSTOCK
Tailstock body travel mm 1540
Quill travel mm 120
Quill diameter mm 85
Quill taper MT# 5
DIMENSION
Machine dimension L x W x H m 5.2x2.3x2.3
Net weight kg 7500




NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-T controller 1 Upgrade to 15" Colored LCD monitor
2 RJ-45 interface 2 Collet chuck
3 Rigid tapping 3 Tool setter
4 Heat exchanger for electric cabinet 4 Oil mist collector
5 10.4" Colored LCD monitor 5 Oil-coolant skimmer
6 Lubrication system 6 Air cooler for electric cabinet
7 4-bar coolant system 7 Transformer
8 Three-color warning light 8 CE version
9 Loader interface
10 Gantry loader system
11 Automatic door
12 Steady rest
13 Linear scale
