UV-75EC

Vertical Turning Center

Heavy Duty Cutting Spindle Design on Vertical Turning Center



· Gear-driven BMT/VDI live tool turret with 12 station

· Robust and rigid structural design

· Linear guide way type or box way type

· Max. Swing:  850 mm

· Max. Length:  700  mm

· Spindle:  A2-11 in  1600 rpm

· 8.4"Fanuc 0i controller with color LCD monitor

ITEM/MODEL UV-75EC
Controller FANUC 0i-T
CAPACITY
Swing over bed mm 850
Max. turning diameter mm 750
Max. turning length mm 700
SPINDLE
Spindle Speed rpm 1600(630)
Spindle bearing diameter mm 160
Spindle drive system belt
Spindle nose taper ASA A2-11
Chuck diameter inch 24(32)
Spindle Motor Power(Cont. /30min) kW 18.5/22
TRAVELS
X-axis Travel mm 501
Z-axis Travel mm 800
X-axis ballscrew diameter mm 50
Z-axis ballscrew diameter mm 50
Guide way type Linear(Box)
FEEDS
X-axis Rapid Traverse Rate m/min 20
Z-axis Rapid Traverse Rate m/min 24
TURRET
Tooling system BMT/VDI
Turret driven type
Servo mechanical
Number of tools station 12
Square tool shank size mm 32
Round tool shank size mm 50
Rotary tool speed rpm -
MOTOR
X-axis motor power kW 3
Z-axis motor power kW 4
Hydraulic motor power kW 2.2
Coolant pump motor power kW 0.5+1
Rotary tool power kW -
DIMENSION
Machine dimension L x W x H m 3.5 x 2.4 x 4
Net weight kg 15000



NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-T controller 1 Upgrade to 10.4" Colored LCD monitor
2 RS-232 interface 2 Tool setter
3 Heat exchanger for electric cabinet 3 Automatic door
4 8.4" Colored LCD monitor 4 Oil mist collector
5 Hydraulic power supply unit 5 Oil-coolant skimmer
6 Lubrication system 6 Air cooler for electric cabinet
7 4-bar coolant system 7 Gearbox
8 Three-color warning light 8 Upgrade to non-through hole 3-jaw 32" (40") hydraulic chuck & cylinder
9 Single chain type chip conveyor + chip cart 9 0 degree rotary tool holder
10 Tool kit 10 90 degree rotary tool holder
11 Transformer
12 CE version

Related Products

Vertical Turning Center

UV-100ATC

Vertical Turning Center

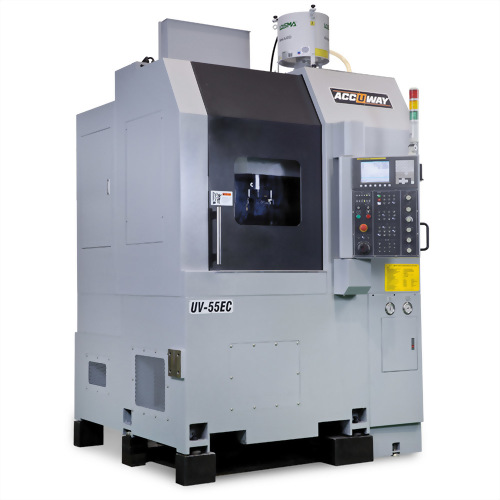

UV-55EC

Vertical Turning Center

UV-100ATCC

Vertical Turning Center

UV-75ATC

Vertical Turning Center

UV-100EC

Vertical Turning Center

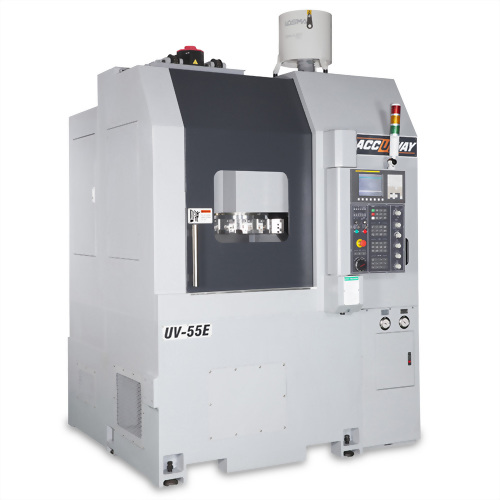

UV-55E
