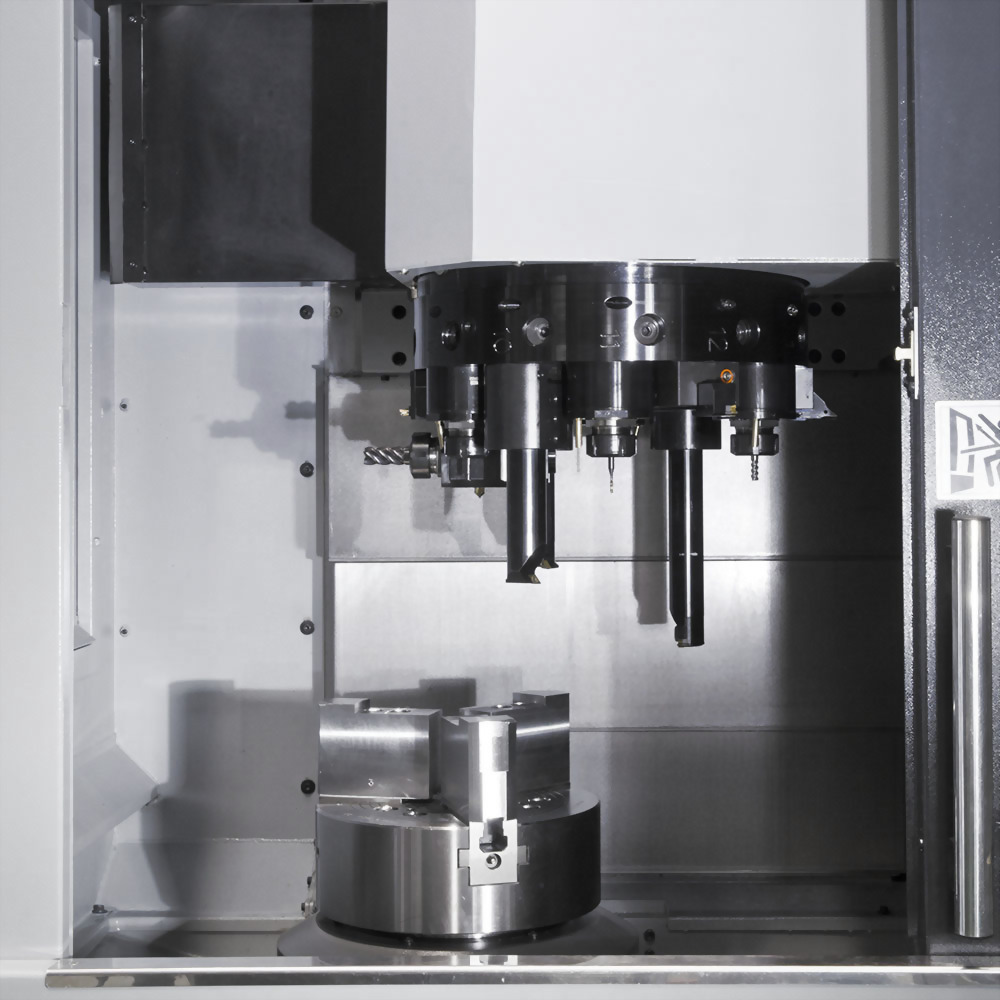

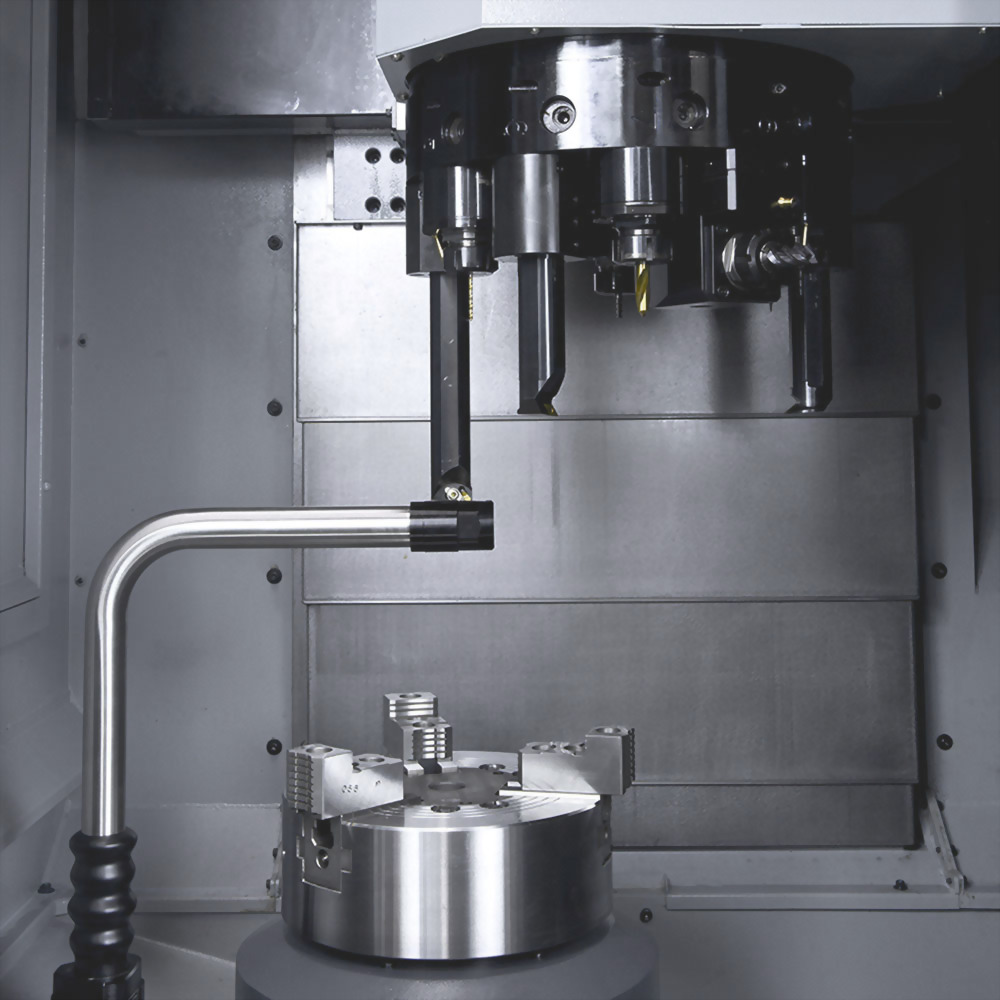

UV-55EC
Vertical Turning Center
Heavy Duty Cutting Spindle Design on Vertical Turning Center
|
|
ITEM/MODEL | UV-55EC |
|
|
|---|---|---|---|---|
|
|
Controller | FANUC 0i-T | ||
|
|
CAPACITY | |||
|
|
Swing over bed | mm | 750 | |
|
|
Max. turning diameter | mm | 550 | |
|
|
Max. turning length | mm | 550 | |
|
|
Guide way type | Linear | ||
|
|
SPINDLE | |||
|
|
Spindle Speed | rpm | 2500 | |
|
|
Spindle bearing diameter | mm | 130 | |
|
|
Spindle nose taper | ASA | A2-8 | |
|
|
Chuck diameter | inch | 12(15) | |
|
|
Spindle Motor Power(Cont. /30min) | kW | 15/18.5 | |
|
|
TRAVELS | |||
|
|
X-axis Travel | mm | 295 | |
|
|
Z-axis Travel | mm | 550 | |
|
|
FEEDS | |||
|
|
X-axis Rapid Traverse Rate | m/min | 20 | |
|
|
Z-axis Rapid Traverse Rate | m/min | 24 | |
|
|
TURRET | |||
|
|
Tooling system | BMT(VDI) | ||
|
|
Turret driven type |
Servo mechanical |
|
|
|
|
Number of tools | station | 12 | |
|
|
Square tool shank size | mm | 25 | |
|
|
Round tool shank size | mm | 40 | |
|
|
MOTOR | |||
|
|
Rotary tool spindle power | kW | 3.7/5.5 |
|
|
|
X-axis motor power | kW | 3 | |
|
|
Z-axis motor power | kW | 3 | |
|
|
Hydraulic motor power | kW | 2.2 | |
|
|
Coolant pump motor power | kW | 0.5+1 | |
|
|
DIMENSION | |||
|
|
Machine dimension L x W x H | m | 1.9 x 3 x 3.1 | |
|
|
Net weight | kg | 5300 | |
|
|
UV-55EC | |||
|---|---|---|---|---|
|
|
NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
|
|
1 | FANUC 0i-T controller | 1 | Upgrade to 10.4" Colored LCD monitor |
|
|
2 | RS-232 interface | 2 | Tool setter |
|
|
3 | Heat exchanger for electric cabinet | 3 | Automatic door |
|
|
4 | 8.4" Colored LCD monitor | 4 | Oil mist collector |
|
|
5 | Hydraulic power supply unit | 5 | Oil-coolant skimmer |
|
|
6 | Lubrication system | 6 | Air cooler for electric cabinet |
|
|
7 | 4-bar coolant system | 7 | Gearbox |
|
|
8 | Three-color warning light | 8 |
Upgrade to non-through hole 3-jaw 15" hydraulic chuck & cylinder
|
|
|
9 | Single chain type chip conveyor + chip cart | 9 | 0 degree rotary tool holder |
|
|
10 | Tool kit | 10 | 90 degree rotary tool holder |
|
|
11 | Transformer | ||
|
|
12 | CE version | ||
