UT-200L/UT-200LM

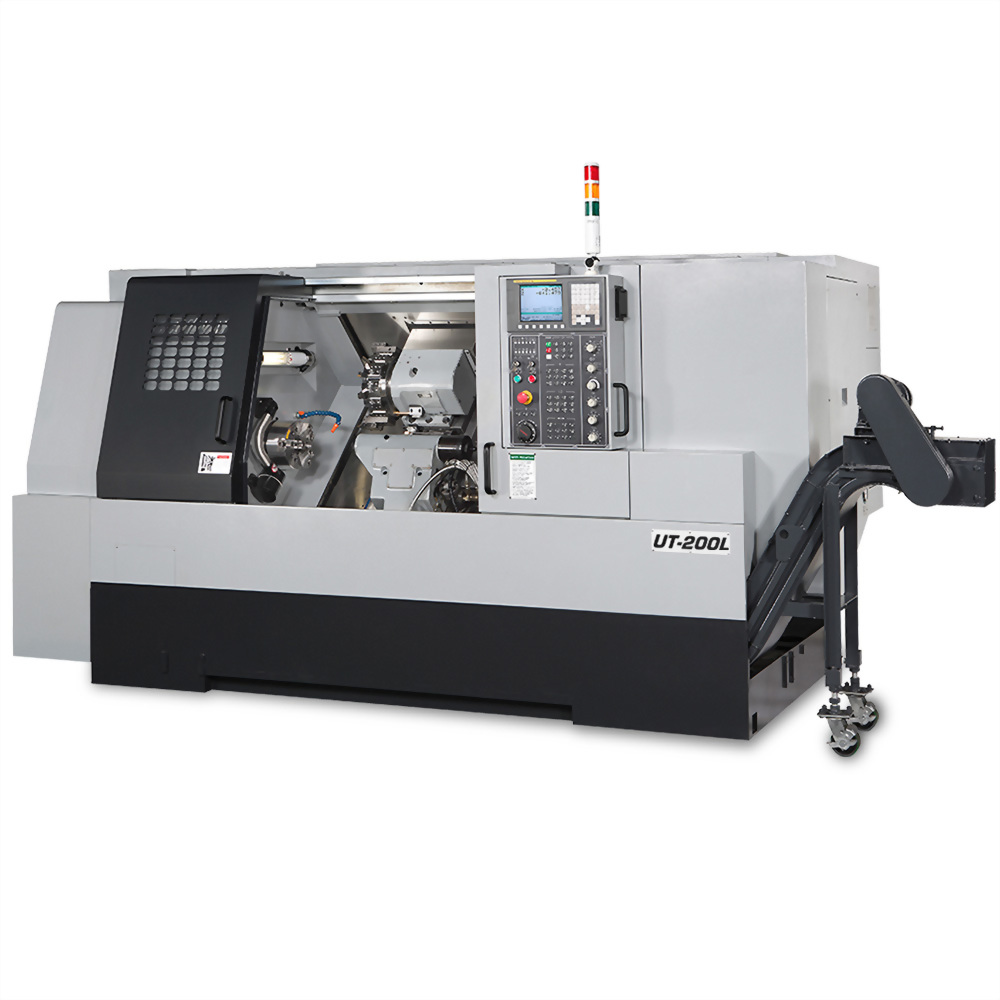

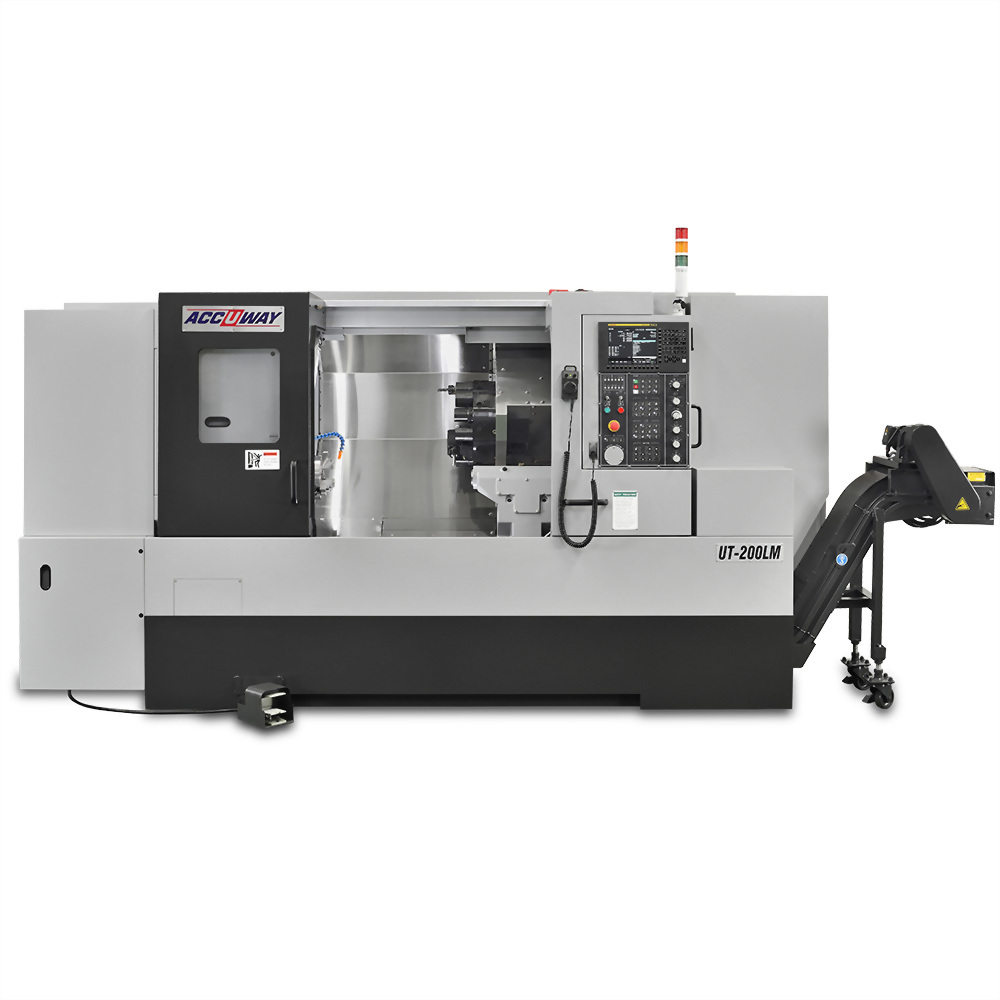

Slant Bed Turning Center
| ITEM/MODEL | UT-200L | UT-200LM | |||||||
| Controller | FANUC 0i-T | ||||||||
| CAPACITY | |||||||||
| Swing over bed | mm | 505 | 505 | ||||||
| Swing over saddle | mm | 318 | 318 | ||||||
| Max. turning diameter | mm | 300 | 260 | ||||||
| Max. turning length | mm | 1000 | 920 | 900 | 820 | ||||
| Guide way type | Box | ||||||||
| SPINDLE | |||||||||
| Spindle nose taper | ASA | A2-5 | A2-6 | A2-8 | A2-5 | A2-6 | A2-8 | ||
| Chuck diameter | inch | 6 | 8 | 10 | 6 | 8 | 10 | ||
| Bar capacity | mm | 44 | 52 | 65 | 75 | 44 | 52 | 65 | 75 |
| Spindle speed | rpm | 6000 | 4500 | 4000 | 3500 | 6000 | 4500 | 4000 | 3500 |
| Spindle motor power(Cont. / 30min) | kW | 11/15(15/18.5) | 11/15(15/18.5) | ||||||
| TRAVELS | |||||||||
| X-axis Travel | mm | 220 | 220 | ||||||
| Z-axis Travel | mm | 1050 | 1050 | ||||||
| Y-axis Travel | mm | - | - | ||||||
| FEED RATES | |||||||||
| X-axis Rapid Traverse Rate | m/min | 20 | 20 | ||||||
| Z-axis Rapid Traverse Rate | m/min | 20 | 20 | ||||||
| Y-axis Rapid Traverse Rate | m/min | - | - | ||||||
| TURRET | |||||||||
| Tooling system | BOT | BMT/VDI | |||||||
| Turret driven type | Hydraulic/Servo | Servo mechanical | |||||||
| Number of tools | station | 8 | 10 | 12 | 12 | ||||
| Square tool shank size | mm | 25 | 25 | 20 | 20 | ||||
| Round tool shank size | mm | 32 | 32 | ||||||
| Max. Rotary Tool Speed | rpm | - | 6000 | ||||||
| Rotary Tool power | kW | - | 3.7/5.5 | ||||||
| TAILSTOCK | |||||||||
| Tailstock body travel | mm | 1045 | 1045 | ||||||
| Quill travel | mm | 80 | 80 | ||||||
| Quill diameter | mm | 75 | 75 | ||||||
| Quill taper | MT# | 4 | 4 | ||||||
| DIMENSION | |||||||||
| Machine dimension L x W x H | m | 3.7 x 1.6 x 1.8 | 3.7 x 1.6 x 1.9 | ||||||
| Net weight | kg | 4700 | 4700 | ||||||
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | RJ-45 interface | 2 | Collet chuck |
| 3 | Rigid tapping | 3 | Tool setter |
| 4 | Heat exchanger for electric cabinet | 4 | Parts catcher and parts conveyor |
| 5 | 10.4" Colored LCD monitor | 5 | Bar feeder interface (7 or 24 pins) |
| 6 | Lubrication system | 6 | Bar feeder |
| 7 | 4-bar coolant system | 7 | Oil mist collector |
| 8 | Three-color warning light | 8 | Oil-coolant skimmer |
| 9 | Air cooler for electric cabinet | ||
| 10 | Transformer | ||
| 11 | CE version | ||
| 12 | Loader interface | ||
| 13 | Gantry loader system | ||
| 14 | Auto door | ||
| 15 | Linear scale | ||
| 16 | 0 degree rotary tool holder(UT-200LM) | ||
| 17 | 90 degree rotary tool holder(UT-200LM) |
