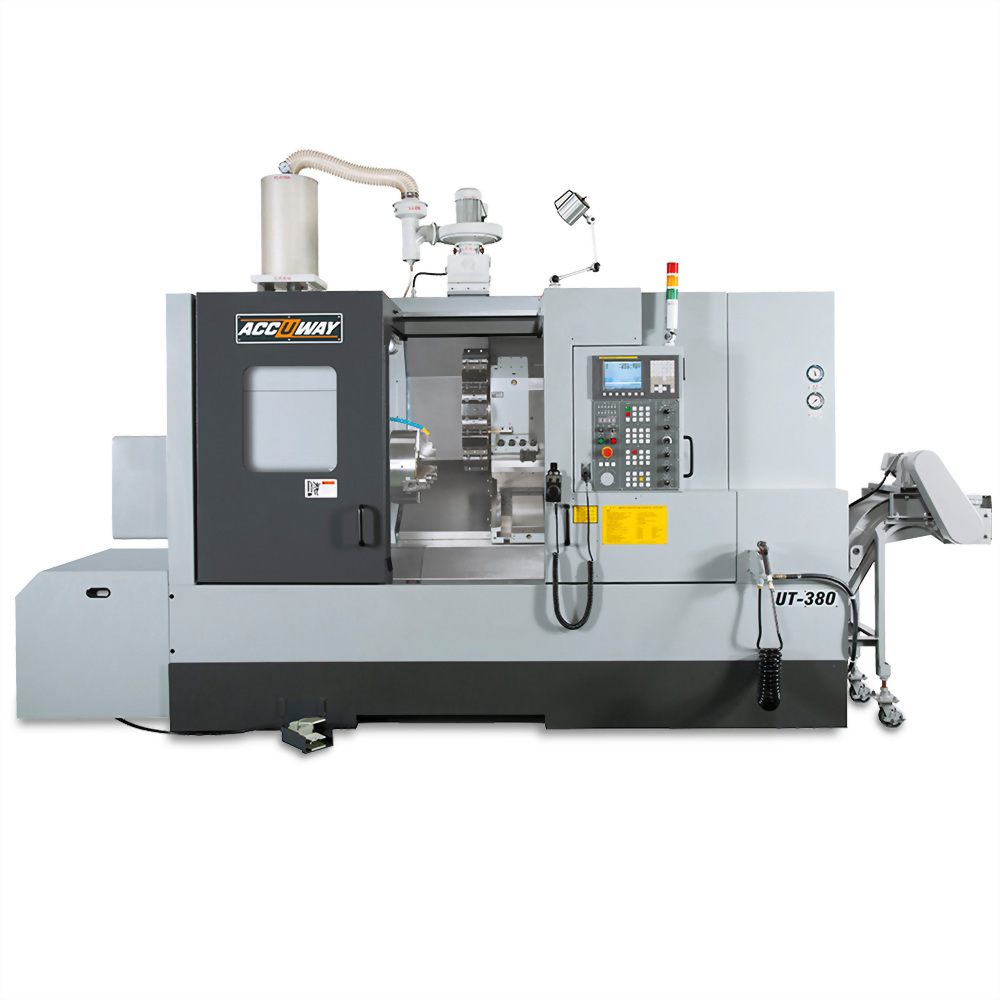

UT-380
High Performance Turning Center
| ITEM/MODEL | UT-380 | ||||
| Controller | FANUC 0i-T | ||||
| CAPACITY | |||||
| Swing over bed | mm | 850 | |||
| Swing over saddle | mm | 700 | |||
| Max. turning diameter | mm | 680 | |||
| Max. turning length | mm | 630 | 550 | 490 | |
| Guide way type | Box | ||||
| SPINDLE | |||||
| Spindle nose taper | ASA | A2-8 | A2-11 | A2-15 | |
| Chuck diameter | inch | 12 | 15 | 18 | |
| Bar capacity | mm | 90 | 105 | 116.5 | 166.5 |
| Spindle speed | rpm | 2700 | 2500 | 2000 | 1800 |
| Spindle motor power(Cont. / 30min) | kW | 18.5/22 (30/37) + 2-step gearbox | |||
| TRAVELS | |||||
| X-axis Travel | mm | 370 | |||
| Z-axis Travel | mm | 750 | |||
| Y-axis Travel | mm | - | |||
| FEED RATES | |||||
| X-axis Rapid Traverse Rate | m/min | 20 | |||
| Z-axis Rapid Traverse Rate | m/min | 20 | |||
| Y-axis Rapid Traverse Rate | m/min | - | |||

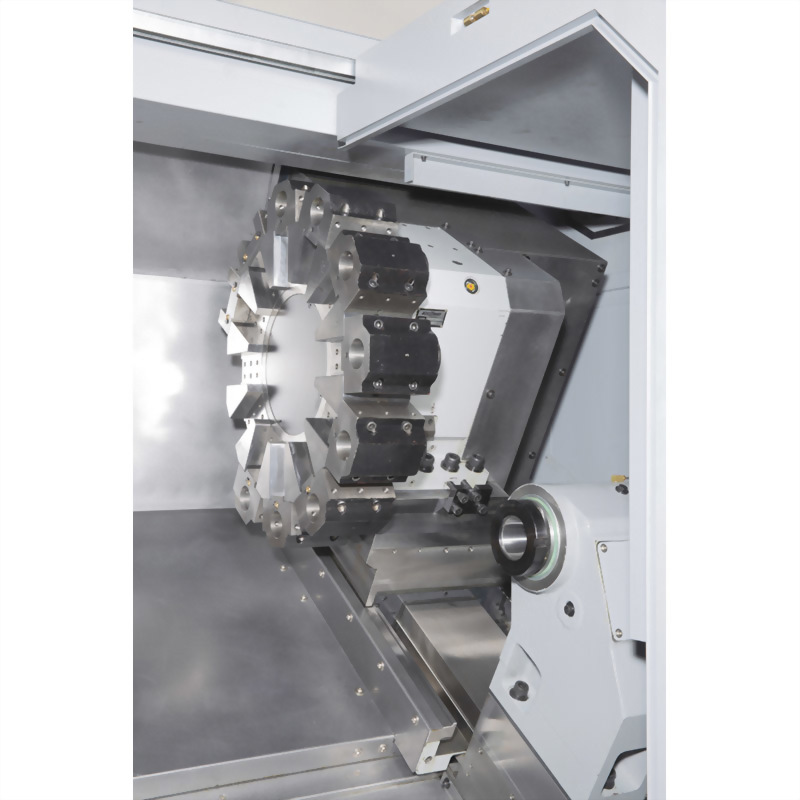

| TURRET | |||||
| Tooling system | BOT | ||||
| Turret driven type | Hydraulic/Servo | ||||
| Number of tools | station | 12 | |||
| Square tool shank size | mm | 32 | |||
| Round tool shank size | mm | 50 | |||
| Max. Rotary Tool Speed | rpm | - | |||
| Rotary Tool power | kW | - | |||
| TAILSTOCK | |||||
| Tailstock body travel | mm | 540 | |||
| Quill travel | mm | 120 | |||
| Quill diameter | mm | 120 | |||
| Quill taper | MT# | 6 | |||
| DIMENSION | |||||
| Machine dimension L x W x H | m | 3.6 x 2.3 x 2.2 | |||
| Net weight | kg | 6500 | |||
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | RJ-45 interface | 2 | Tool setter |
| 3 | Rigid tapping | 3 | Oil mist collector |
| 4 | Heat exchanger for electric cabinet | 4 | Oil-coolant skimmer |
| 5 | 10.4" Colored LCD monitor | 5 | Air cooler for electric cabinet |
| 6 | Lubrication system | 6 | A2-11 spindle headstock and 105 mm bar capacity |
| 7 | 4-bar coolant system | 7 | A2-11 spindle headstock and 116 mm bar capacity |
| 8 | Three-color warning light | 8 | A2-15 spindle headstock and 166 mm bar capacity |
| 9 | Gear box | 9 | 12-station servo turret |
| 10 | APT 50 power turret + CS contouring control | ||
| 11 | APT 50 power turret + CF Axis Control | ||
| 12 | Steady rest | ||
| 13 | Transformer | ||
| 14 | CE version | ||
| 15 | Linear scale | ||
| 16 | Auto door |
