UT-100E
CNC Lathe

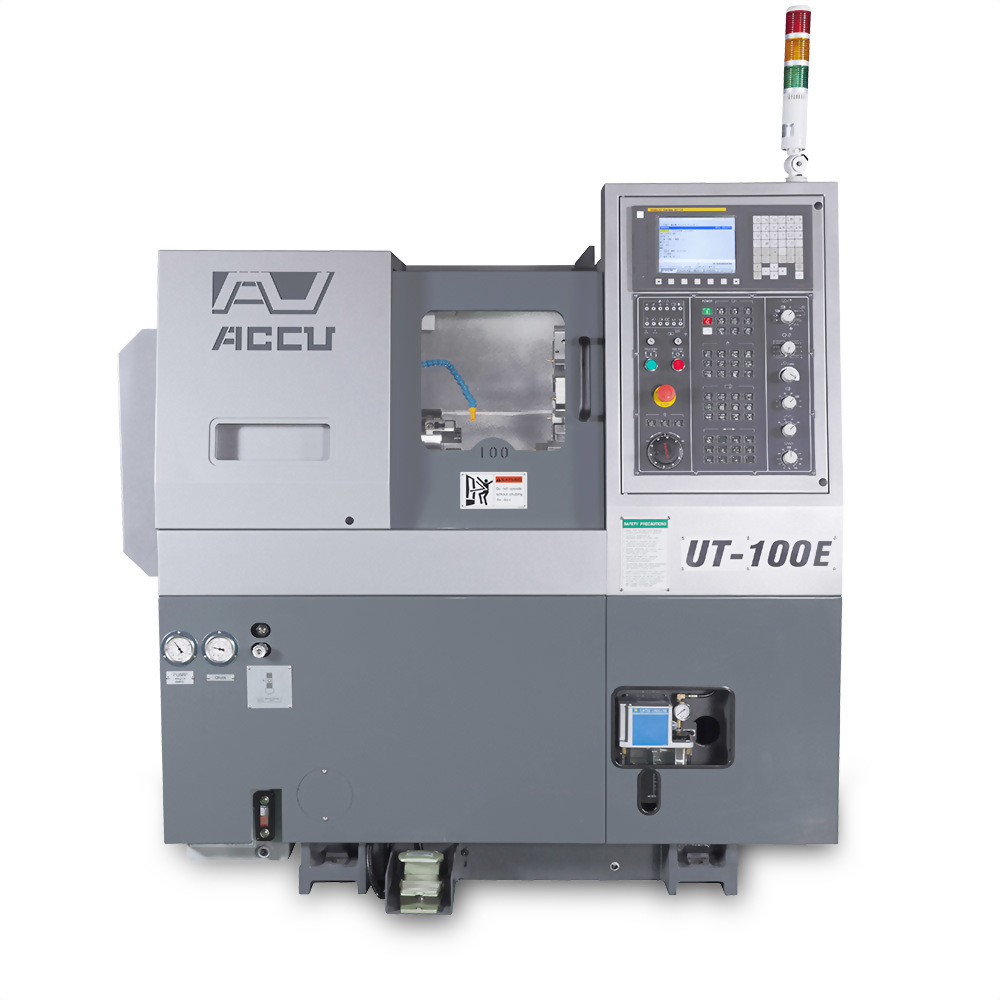

Compact CNC Lathe with High Precision and Rigid Structure
- Cam-driven hydraulic/servo turret with 12 station
- One-piece bed, 15° slant-bed structural design
- Max. Swing: 380 mm
- Max. Length: 175 mm
- Spindle: A2-5 in 6000 rpm
- Bar capacity: 30 mm
- 8.4"Fanuc 0i controller with color LCD monitor
|
|
ITEM/MODEL | UT-100E | |||
|---|---|---|---|---|---|
|
|
Controller | FANUC 0i-T | |||
|
|
CAPACITY | ||||
|
|
Swing over bed | mm | 380 | ||
|
|
Swing over saddle | mm | 320 | ||
|
|
Max. turning diameter | mm | 180 |
|
|
|
|
Max. turning length | mm | 175 |
|
|
|
|
SPINDLE | ||||
|
|
Spindle nose taper | ASA | A2-5 | ||
|
|
Chuck diameter | inch | 6 | ||
|
|
Spindle speed | rpm | 6000 | ||
|
|
Spindle motor power(Cont. / 30min) | kW | 5.5/7.5 | ||
|
|
Bar capacity | mm | 30 | ||
|
|
TRAVELS | ||||
|
|
X-axis Travel | mm | 120 | ||
|
|
Y-axis Travel | mm | - | ||
|
|
Z-axis Travel | mm | 230 | ||
|
|
FEED RATES | ||||
|
|
X-axis Rapid Traverse Rate | m/min | 12 | ||
|
|
Y-axis Rapid Traverse Rate | m/min | - | ||
|
|
Z-axis Rapid Traverse Rate | m/min | 18 | ||
|
|
TURRET | ||||
|
|
Turret driven type | Hydraulic/Servo | |||
|
|
Tooling system | BOT |
|
||
|
|
Number of tools | station | 12 | ||
|
|
Square tool shank size | mm | 20 | ||
|
|
Round tool shank size | mm | 32 | ||
|
|
Max. Rotary Tool Speed | rpm | - | ||
|
|
Rotary Tool driver power | kW | - |
|
|
|
|
DIMENSION | ||||
|
|
Machine dimension L x W x H | mm | 1.7 x 1.6 x 1.7 |
|
|
|
|
Net weight | kg | 1800 |
|
|
|
|
NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
|---|---|---|---|---|
|
|
1 | FANUC 0i-T controller | 1 | Collet chuck |
|
|
2 | RS-232 interface | 2 | Tool setter |
|
|
3 | Rigid tapping | 3 | Parts catcher and parts conveyor |
|
|
4 | Heat exchanger for electric cabinet | 4 | Bar feeder interface (7 or 24 pins) |
|
|
5 | 8.4" Colored LCD monitor | 5 | Bar feeder |
|
|
6 | Lubrication system | 6 | Oil mist collector |
|
|
7 | 4-bar coolant system | 7 | Oil-coolant skimmer |
|
|
8 | Three-color warning light | 8 | Air cooler for electric cabinet |
|
|
9 | Transformer | ||
|
|
10 | CE version | ||
|
|
11 | 15 bar high pressure coolant system | ||
|
|
12 | Linear scale |
