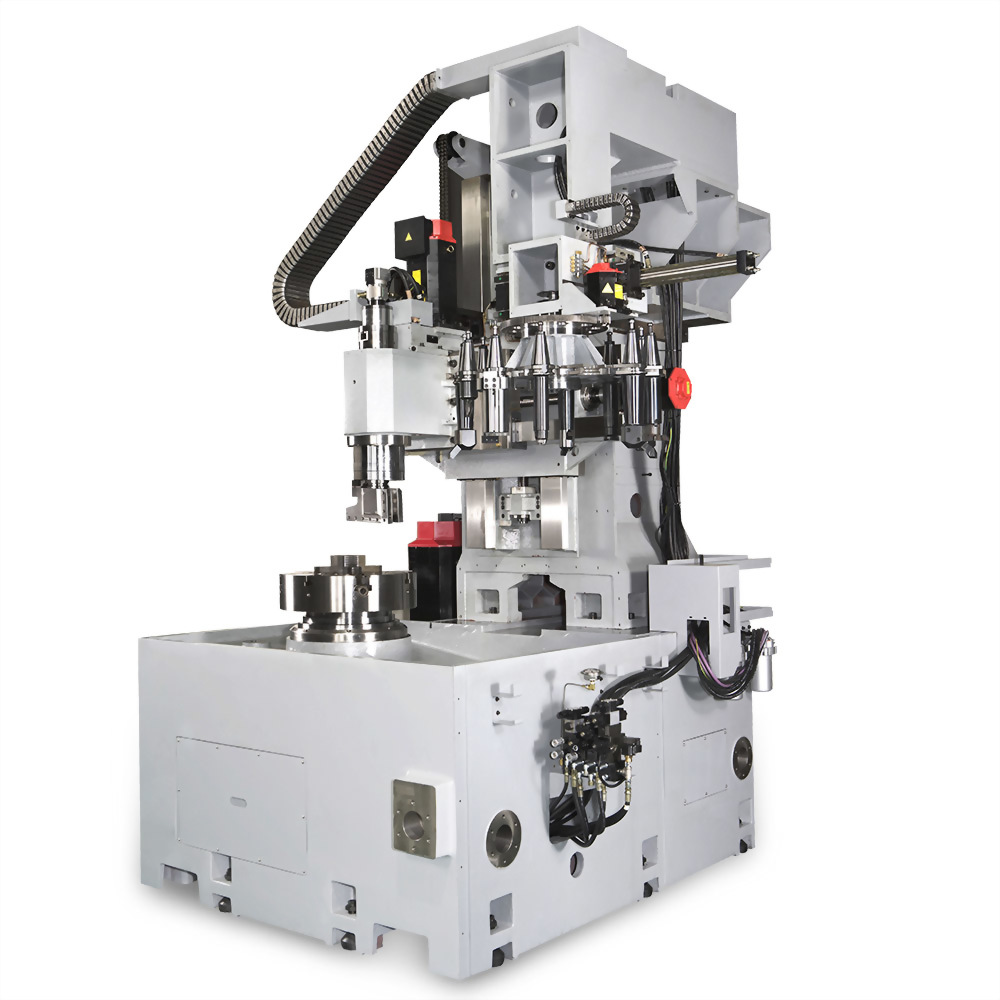

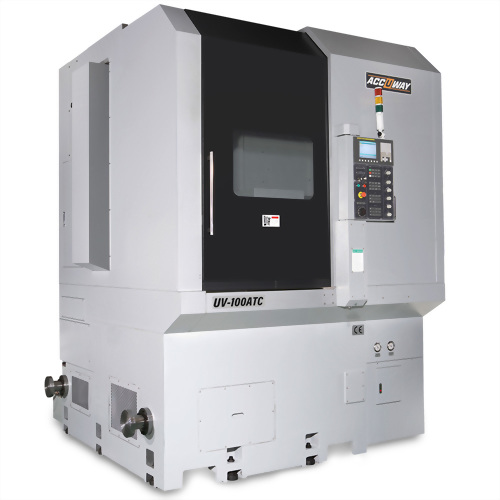

UV-100ATCC
Vertical Turning Center
| ITEM/MODEL | UV-100ATCC | |
| Controller | FANUC 0i-T | |
| CAPACITY | ||
| Swing over bed | mm | 1100 |
| Max. turning diameter | mm | 1000 |
| Max. turning length | mm | 800 |
| Guide way type | Box way | |
| SPINDLE | ||
| Spindle nose taper | ASA | A2-15 |
| Chuck diameter | inch | 24(32/40) |
| Spindle Speed | rpm | 1200 |
| Spindle drive system | 2-step gearbox + Belt | |
| Spindle Motor Power(Cont. /30min) | kW | 30/37 (37/45, 45/55) |
| TOOL SPINDLE | ||
| Spindle taper | BT50 | |
| Max. spindle speed | rpm | 3000 |
| Spindle drive system | Belt | |
| Spindle bearing diameter | mm | 100 |
| Spindle motor Power | kw | 7.5/11 |
| Max. spindle torque | N-m | 105 |
| TRAVELS | ||
| X-axis Travel | mm | 765 |
| Z-axis Travel | mm | 800 |
| FEEDS | ||
| X-axis Rapid Traverse Rate | m/min | 15 |
| Z-axis Rapid Traverse Rate | m/min | 7 |
| TOOL MAGAZINE | ||
| Indexing type | Servo gear | |
| Number of tools | station | 12 |
| Max. tool length | mm | 400 |
| Max. tool weight | kg | 50 |
| Max. magazine load | kg | 420 |
| DIMENSION | ||
| Machine dimension L x W x H | m | 3.1 x 3.7 x 4.6 |
| Net weight | kg | 17000 |
