UM-120W

Vertical Machining Center

Vertical Machining Center



· Increased capacity, improved capacity and better all around performance

· Heavy-duty linear guide ways in all three axes

· 24-station, swing-arm automatic tool changer

· Spindle speed 6000 rpm

· Belt driven spindle design

· Table dimension: 1500 x 650 mm

· FANUC 0i-M controller with LCD monitor
ITEM/MODEL UM-120W
Controller FANUC 0i-M
SPINDLE
Spindle speed rpm 6000
Spindle nose taper BT50
Bearing inner diameter mm 90
Drive system Belt
TRAVELS
X-axis travel mm 1200
Y-axis travel mm 650
Z-axis travel mm 600
Spindle nose to table mm 150~700
TABLE
Table dimension mm 1200 x 650
T-slot(No. of T-slot x width x pitch) mm 5 x 18 x 100
Max. weight on table kg 1200
FEED RATES
X-axis Rapid Traverse Rate m / min 30
Y-axis Rapid Traverse Rate m / min 30
Z-axis Rapid Traverse Rate m / min 30
Cutting feed rate m / min 12
Ball screw diameter (X/Y/Z) mm 45/45/45
Guideway type Roller
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity pcs 24(32)
Max. tool weight kg 15
Max. tool diameter mm 110
Max. tool diameter without adjacent tools mm 200
Method of tool exchange Arm type
Max. tool length mm 300
MOTOR
AI contour control AICC I
Spindle motor power(Cont. / 30min) kW 15 / 18.5
X/Y/Z feed motor kW 3/3/7
Coolant pump motor(50Hz/60Hz) kW 0.53+0.85/0.75+1.27
OTHER
Air supply kg/cm² 5.5
Machine dimension L x W x H m 3.3 x 2.7 x 3.0
Net weight kg 8000



NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-M controller +AICC I 1 Data server 2G
2 RS-232 interface 2 Linear scale (Heidenhain)
3 Rigid tapping 3 Contact tool setter
4 Heat exchanger for electric cabinet 4 Spindle speed upgrading
5 Spindle oil cooling system 5 Spindle air blow tube
6 8.4" Colored LCD monitor 6 Upgrade to 10.4" Colored LCD monitor
7 Lubrication system 7 20 bar coolant through spindle system
8 4-bar coolant system 8 Oil-coolant skimmer
9 Cutter air blast 9 Oil mist collector
10 Spray gun 10 4th axis interface + FANUC motor & driver
11 Three-color warning light 11 4th axis rotary table
12 Automatic door
13 Chain type chip conveyor + chip cart
14 Transformer
15 CE version
16 2-step gear box
17 Z-axis travel 740mm
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.
Super Rigid One-Piece Cast Bed
Accuway's UM line of Vertical Machining Centers are made of Meehanite castings with an upgraded tensile strength and dampening capacity.They are heat treated to eliminate internal stresses and resist creep or fatigue under various operating conditions and thereby maintain accuracy even under prolonged cutting of even the toughest production part materials and tolerances.

Exceptionally Heavy Ribbed Structure
The exceptionally heavy ribbing structure is geometrically symmetrical to balance the thermal and dynamic stresses ensuring the highest level of static and dynamic stability needed for constant precision cutting. This structure provides the optimal rigidity and torsional stiffness for high performance manufacturing.

Wide Guideway Span
The extra wide linear guide span minimizes the bending deflection of the structure and provides a massive monolith base and support for heavy loads while maintaining a high level of accuracy.This also provides a stable cutting platform.

Advanced Design FEA Analysis
With nearly 30 years of experience Accuway has amassed technical expertise and experienced engineers.   They have developed the optimal machine structure design to provide the perfect balance of brute power stability and precision to build a compact machining center delivering high performance.  With FEA analysis, years of client feedback and industry appraisal, Accuway has created the UM line with superb static and dynamic stability for constant precision cutting.

Precision Spindles
Our precision spindles come with P4 class super precision bearings for strong axial resistance to counter cutting forces.  They are permanently greased and lubricated for maximum lifetime and maintenance free requirements.   All machines come standard with belt driven or direct drive couplings.   Only high torque A.C. Spindle motors are used for supreme power, accuracy and reliability.

Spindle Coolant Chiller
The large capacity spindle coolant chiller re-circulates cooling oil through the spindle cartridge and machine headstock casting to maintain consistent positioning accuracy over a wide ambient temperature range.

Coolant Through Spindle
For drilling and tapping small diameter deep precise holes we offer a coolant through spindle option.   The coolant is dispersed directly at the machining point for eliminating ships that impact drill tip flutes and reduces broken tools.

Ball Screws on All Axes
Servo motors and ball screws are used on all axes and are direct coupled for virtually backlash free precise movement.   With a low inertia and high efficiency output this combination offers excellent dynamic precision during contour machining.

Precision Guideways
UM machines all have precision guideways coupled with ball screws for short machining times and longer tool life.   Also the heavy-duty precision linear guideways with extra wide rails and a larger contact surface for superior frame rigidity.

Automatic Tool Changer
This Machine comes standard with a 24 tool magazine with highly efficient and fast tool changes to keep your pace of production high.   An optional 32 tool magazine is also available.

2-axis Trunnion Rotary Table
An optional 2-axis trunion rotary table provides 5-axis machining capability for complex parts.   This capability reduces tolerance deterioration due to multiplw part transfer and jig change issues.

Tool Setter
This optional tool setting system can quickly check the tool length and diameter and gather compensation data for improving efficiency and reducing machine idle time.

Related Products

Vertical Machining Center

UM-210

Vertical Machining Center

UM-110W

Vertical Machining Center

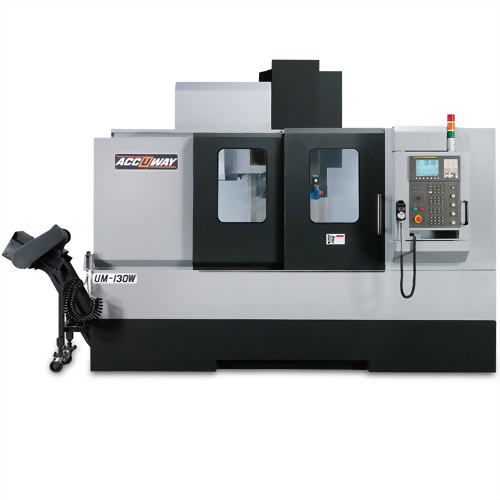

UM-130W

Vertical Machining Center

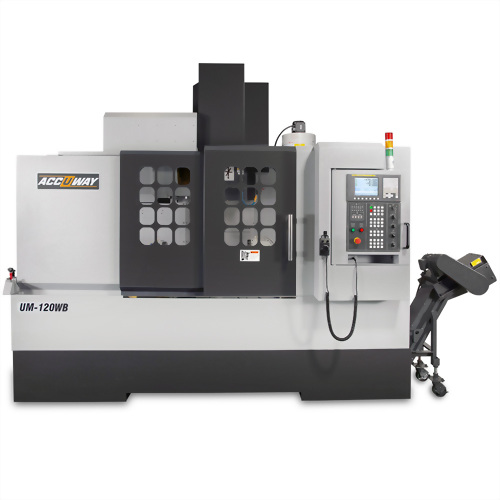

UM-120WB

Vertical Machining Center

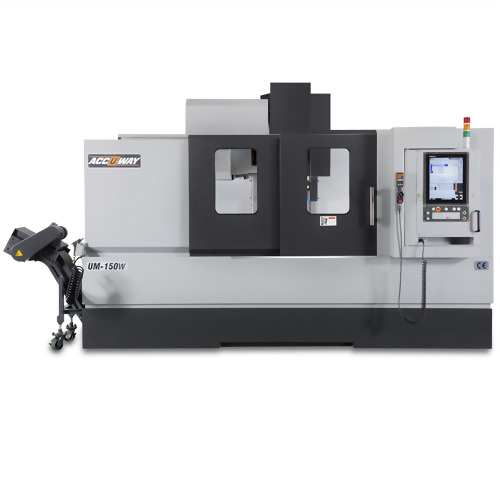

UM-150W

Vertical Machining Center

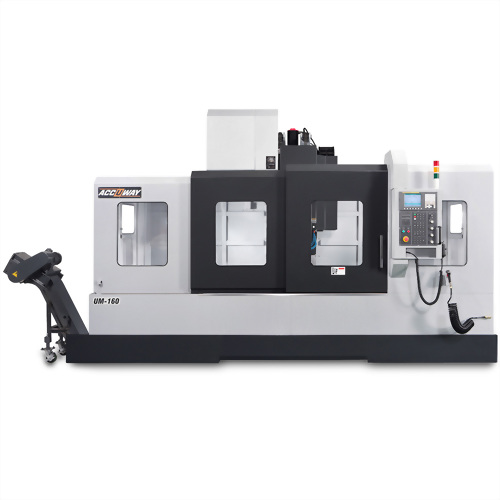

UM-160
