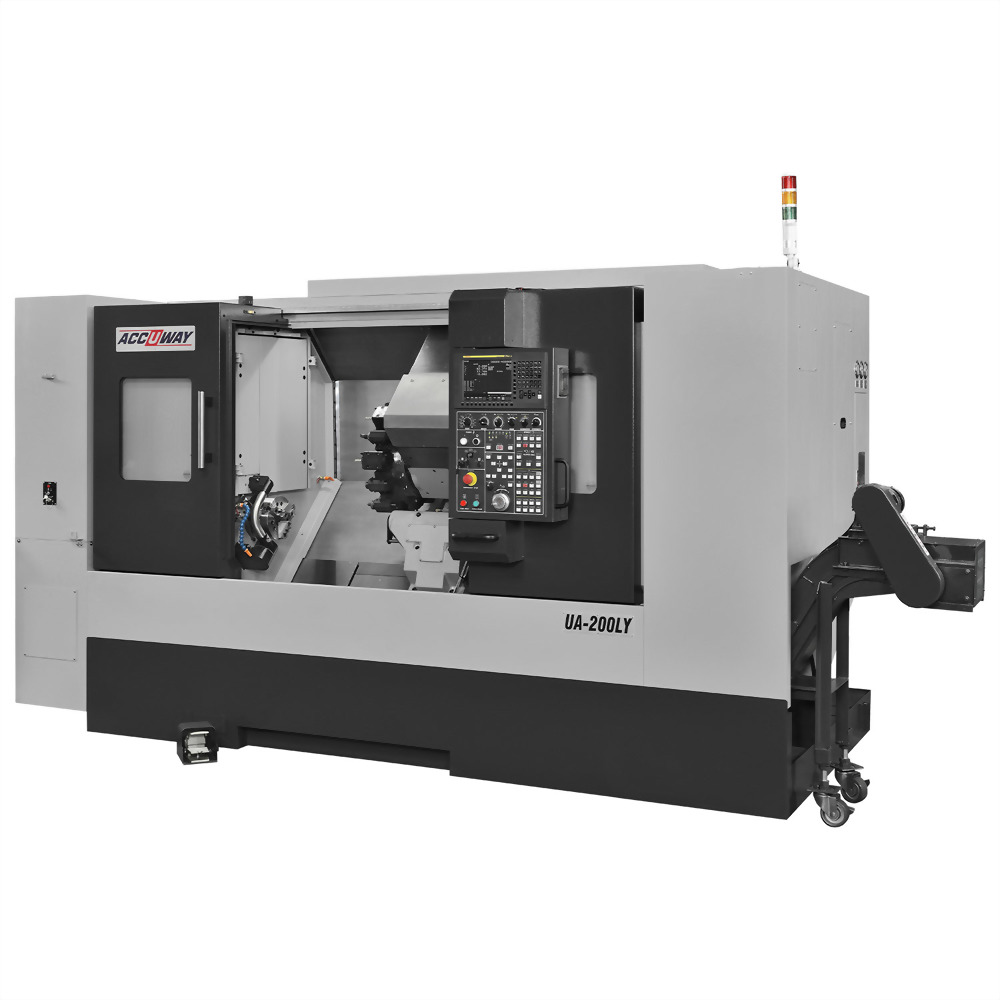

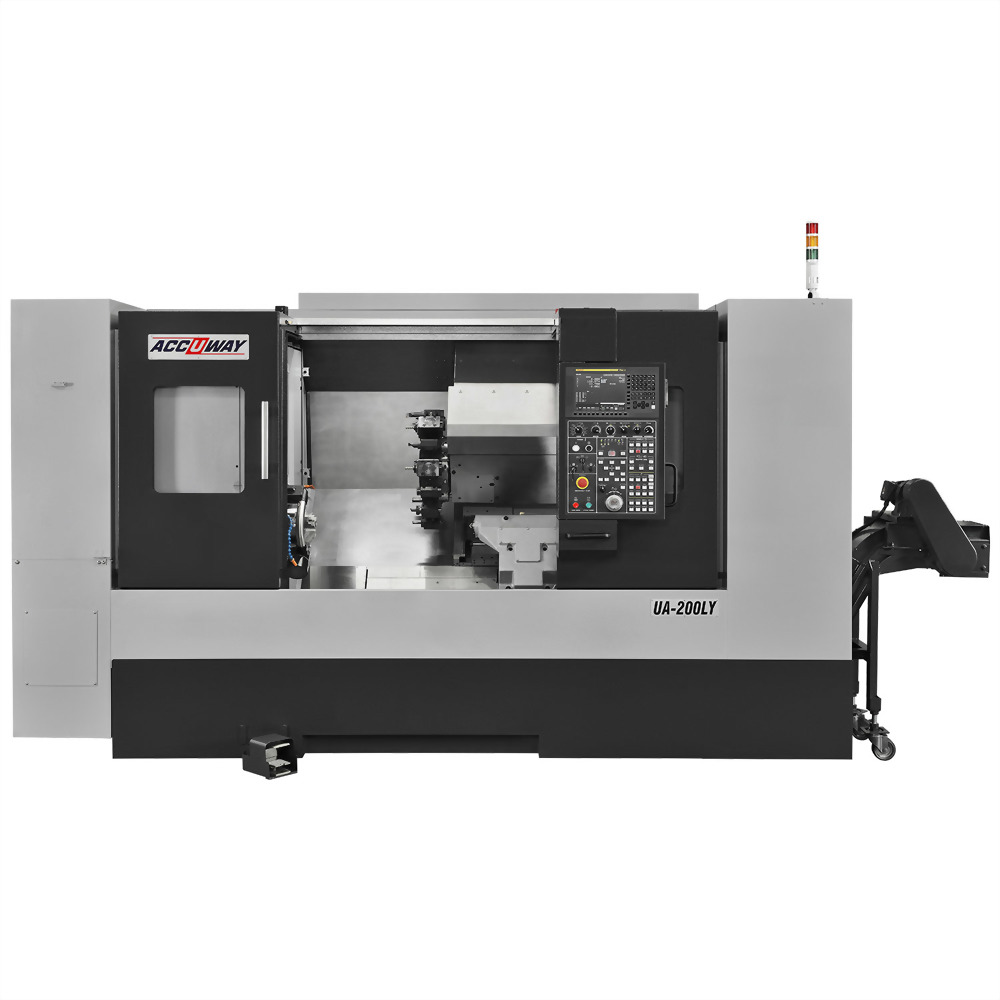

UA-200LY
Multi-axis Slant Bed Turning Center
| ITEM/MODEL | UA-200LY | |
| Controller | FANUC 0i-T | |
| CAPACITY | ||
| Swing over bed | mm | 680 |
| Swing over saddle | mm | 485 |
| Max. turning diameter | mm | 155 |
| Max. turning length | mm | 850 |
| Guide way type | Box | |
| SPINDLE | ||
| Spindle nose taper | ASA | A2-6 |
| Chuck diameter | inch | 8 |
| Bar capacity | mm | 52 |
| Spindle speed | rpm | 4500 |
| Spindle motor power(Cont. / 30min) | kW | 11/15 |
| TRAVELS | ||
| X-axis Travel | mm | 150 |
| Z-axis Travel | mm | 1000 |
| Y-axis Travel | mm | ±50 |
| FEED RATES | ||
| X-axis Rapid Traverse Rate | m/min | 20 |
| Z-axis Rapid Traverse Rate | m/min | 20 |
| Y-axis Rapid Traverse Rate | m/min | 10 |

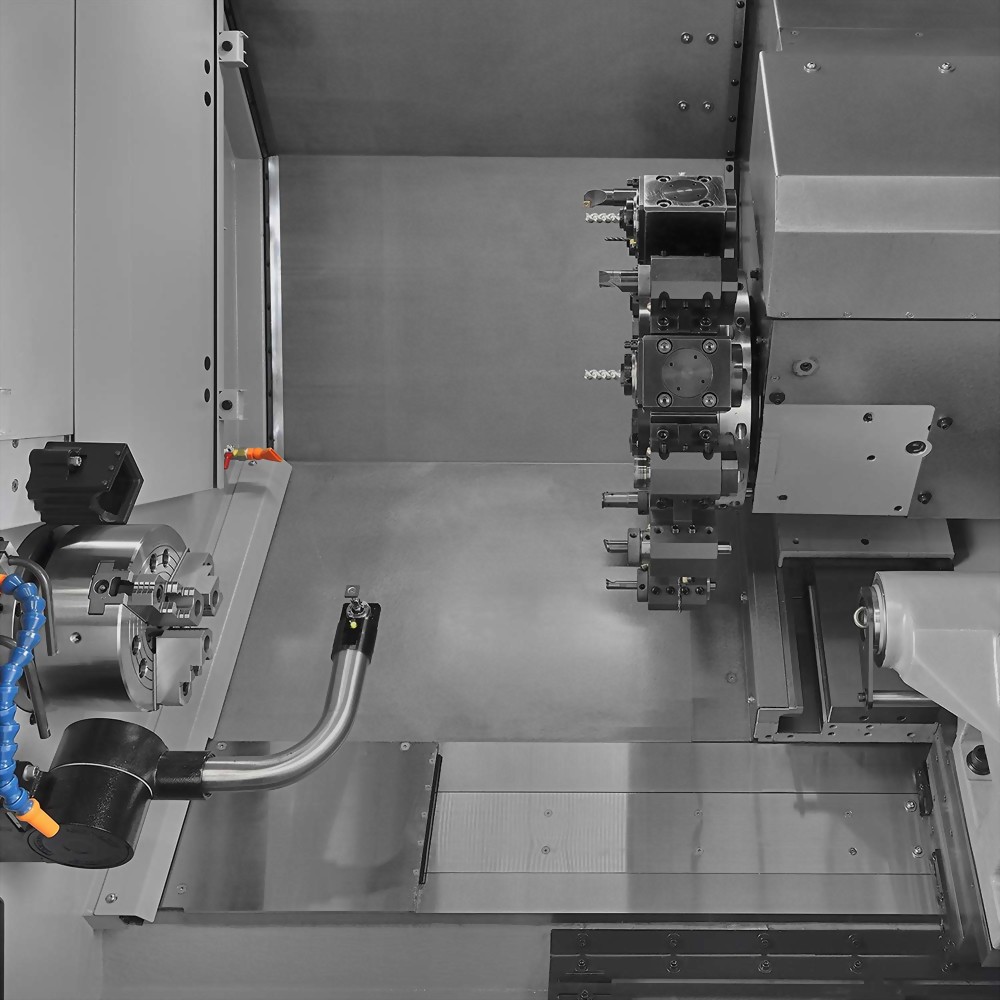

| TURRET | ||
| Turret driven type | BMT-55N | |
| Number of tools | station | 12 |
| Square tool shank size | mm | 20 |
| Round tool shank size | mm | 32 |
| Max. Rotary Tool Speed | rpm | 6000 |
| Rotary Tool power | kW | 3.7/5.5 |
| TAILSTOCK | ||
| Tailstock body travel | mm | 545 |
| Quill travel | mm | 80 |
| Quill diameter | mm | 75 |
| Quill taper | MT# | 4 |
| DIMENSION | ||
| Machine dimension L x W x H | m | 3.7 x 1.6 x 2.2 |
| Net weight | kg | 5500 |
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | FANUC 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | RJ-45 interface | 2 | Collect chuck |
| 3 | Rigid tapping | 3 | Tool setter |
| 4 | Heat exchanger for electric cabinet | 4 | Parts catcher and parts conveyor |
| 5 | 10.4" Colored LCD monitor | 5 | Bar feeder interface (7 or 24 pins) |
| 6 | Lubrication system | 6 | Bar feeder |
| 7 | 4-bar coolant system | 7 | Oil mist collector |
| 8 | Three-color warning light | 8 | Oil-coolant skimmer |
| 9 | Air cooler for electric cabinet | ||
| 10 | Transformer | ||
| 11 | CE version | ||
| 12 | Loader interface | ||
| 13 | Gantry loader system | ||
| 14 | 0 degree rotary tool holder | ||
| 15 | 90 degree rotary tool holder | ||
| 16 | Auto door | ||
| 17 | Linear scale |
