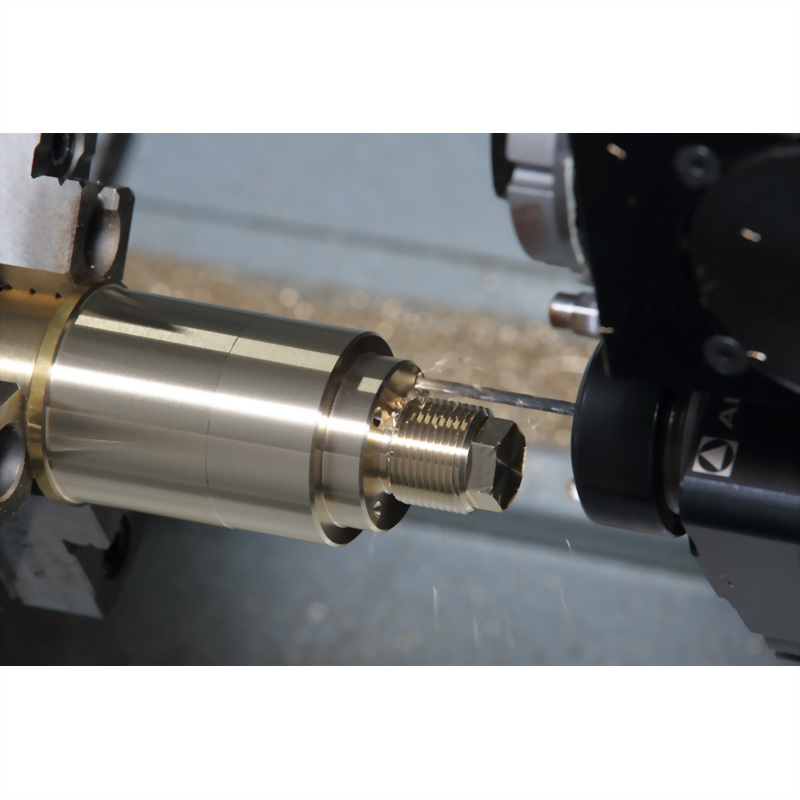

UT-100Y
Compact CNC Lathe for Automatic Machining
Compact CNC Lathe with High Precision and Rigid Structure for Automatic Machining
· Gear-driven BMT live tool turret with 12 station
· One-piece bed, 15° slant-bed structural design
· Max. Swing: 450 mm
· Max. Length: 170 mm
· Spindle: A2-5 in 6000 rpm
· Bar capacity: 30 mm
· 8.4"Fanuc 0i controller with color LCD monitor
· Gear-driven BMT live tool turret with 12 station
· One-piece bed, 15° slant-bed structural design
· Max. Swing: 450 mm
· Max. Length: 170 mm
· Spindle: A2-5 in 6000 rpm
· Bar capacity: 30 mm
· 8.4"Fanuc 0i controller with color LCD monitor
|
|
ITEM/MODEL | UT-100Y |
|
||
|---|---|---|---|---|---|
|
|
Controller | FANUC 0iT | |||
|
|
CAPACITY | ||||
|
|
Swing Over Bed | mm | 450 |
|
|
|
|
Swing Over Saddle | mm | 330 |
|
|
|
|
Max. Turning Diameter | mm | 110 | ||
|
|
Max. Turning Length | mm | 170 | ||
|
|
SPINDLE | ||||
|
|
Spindle Nose Taper | ASA | A2-5 | ||
|
|
Chuck Diameter | inch | 6 | ||
|
|
Spindle Speed | rpm | 6000 | ||
|
|
Spindle Motor Power(Cont. /30min) | kW | 5.5/7.5 | ||
|
|
Bar Capacity | mm | 30 | ||
|
|
TRAVELS | ||||
|
|
X-axis Travel | mm | 80 | ||
|
|
Y-axis Travel | mm |
±25 |
||
|
|
Z-axis Travel | mm | 220 |
|
|
|
|
FEEDS RATES | ||||
|
|
X-axis Rapid Traverse Rate | m/min | 12 | ||
|
|
Y-axis Rapid Traverse Rate | m/min | 10 | ||
|
|
Z-axis Rapid Traverse Rate | m/min | 18 |
|
|
|
|
TURRET | ||||
|
|
Turret Drive Type | Servo-mechanical | |||
|
|
Tooling system |
|
BMT-55 |
||
|
|
Number of Tool | station | 12 | ||
|
|
Square Tool Shank Size | mm | 25 | ||
|
|
Round Tool Shank Size | mm | 40 | ||
|
|
Max. Rotary Tool Speed | rpm | 6000 | ||
|
|
Rotary Tool Driver Power | kW | 4.5 | ||
|
|
DIMENSION | ||||
|
|
Machine dimension L x W x H | m | 1.9 x 1.5 x 2.5 |
|
|
|
|
Net weight | kg | 2300 | ||
|
|
LOADER |
||||
|
|
WORKPIECE DIMENSION |
|
|
|
|
|
|
Diameter |
mm |
φ10~60 |
|
|
|
|
Length |
mm | 20~100 |
|
|
|
|
Weight (One side) |
kg | 0.5/1 |
|
|
|
|
Shoulder (Traverse axis:Z) |
|
|
|
|
|
|
Stroke |
mm | 360 |
|
|
|
|
Rapid traverse rate |
m/min | 84 |
|
|
|
|
Arm (Vertical axis:Y) |
|
|
|
|
|
|
Stroke |
mm | 660 |
|
|
|
|
Rapid traverse rate |
m/min | 84 |
|
|
|
|
|
|
|
|
|
|
|
NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
|---|---|---|---|---|
|
|
1 | FANUC 0i-T controller | 1 | Collect chuck |
|
|
2 | RJ-45 interface | 2 | Finger |
|
|
3 | Rigid tapping | 3 | Oil-coolant skimmer |
|
|
4 | Heat exchanger for electric cabinet | 4 | Air cooler for electric cabinet |
|
|
5 | 8.4" Colored LCD monitor | 5 | Transformer |
|
|
6 | Lubrication system | 6 | CE version |
|
|
7 | 4-bar coolant system | 7 | Gripper blank |
|
|
8 | Three-color warning light | 8 | 15 bar high pressure coolant system |
|
|
|
9 |
Axial rotary tool holder |
|
|
|
10 |
Radial rotary tool holder |
||
|
|
11 |
Linear scale |
MINIMIZED FOOTPRINT
UT-100 is the perfect solution for limited working space, with its industrial aesthetic design having the width of only 1650 mm. Even with minimized machine width, sufficient door opening is provided for easy operation.
HIGH PRECISION AND RIGID STRUCTURE
Robust, solid, heat-treated, and hardened box-way on one-piece 15 degree slant bed structure provides stable high-speed axial movement.
HIGH-PRECISION HEADSTOCK
Symmetric heat-dissipated fin shaped ribbed headstock design eliminates thermal distortion effectively. It is precisely bored and ground to ensure excellent roundness and concentricity. Spindle and bearings are assembled with headstock by precision tools and fixtures. Standardized run-in test removes abnormal temperature arising from mismatched tolerance.
HIGH PRECISION SERVO MECHANICAL TURRET
Mounted with high precision and large size curve coupling, turret disc is driven by cam-follower with hydraulic motor or servo motor to obtain high repeated indexing accuracy under continuous tool change. The 12-position BMT or VDI live tool turret providing various profile milling and off-center drilling capabilities has trouble-free maintenance with less misalignment problem.
If equipped with special coolant nozzle, turret can support up to 70 Bar of high pressure.
ACCURATE LEAD PITCH BALLSCREW
Pre-tensioned, precise ballscrew with special cooling networks eliminate backlash and thermal elongation significantly. Direct-drive motor not only reduces energy loss during transmission, but also increases axial positioning accuracy.
FLEXIBLE AUTOMATION SYSTEM
UT-100 series offers optional built-in type and gantry type automatic loading/unloading system. The maximum diameter of raw material is 125 mm and weight limit is 2 kg respectively to satisfy various production requirement. Raw material is loaded, processed and unloaded with finished part automatically. It can optimized machine run time under minimized labor interference.
BUILT-IN TYPE LOADER STSTEM
Raw material and finished workpiece is transferred by conveyors. Compact built-in loader system save occupied space, lower operating cost and improve the machining efficiency.
UT-100 is the perfect solution for limited working space, with its industrial aesthetic design having the width of only 1650 mm. Even with minimized machine width, sufficient door opening is provided for easy operation.
HIGH PRECISION AND RIGID STRUCTURE
Robust, solid, heat-treated, and hardened box-way on one-piece 15 degree slant bed structure provides stable high-speed axial movement.
HIGH-PRECISION HEADSTOCK
Symmetric heat-dissipated fin shaped ribbed headstock design eliminates thermal distortion effectively. It is precisely bored and ground to ensure excellent roundness and concentricity. Spindle and bearings are assembled with headstock by precision tools and fixtures. Standardized run-in test removes abnormal temperature arising from mismatched tolerance.
HIGH PRECISION SERVO MECHANICAL TURRET
Mounted with high precision and large size curve coupling, turret disc is driven by cam-follower with hydraulic motor or servo motor to obtain high repeated indexing accuracy under continuous tool change. The 12-position BMT or VDI live tool turret providing various profile milling and off-center drilling capabilities has trouble-free maintenance with less misalignment problem.
If equipped with special coolant nozzle, turret can support up to 70 Bar of high pressure.
ACCURATE LEAD PITCH BALLSCREW
Pre-tensioned, precise ballscrew with special cooling networks eliminate backlash and thermal elongation significantly. Direct-drive motor not only reduces energy loss during transmission, but also increases axial positioning accuracy.
FLEXIBLE AUTOMATION SYSTEM
UT-100 series offers optional built-in type and gantry type automatic loading/unloading system. The maximum diameter of raw material is 125 mm and weight limit is 2 kg respectively to satisfy various production requirement. Raw material is loaded, processed and unloaded with finished part automatically. It can optimized machine run time under minimized labor interference.
BUILT-IN TYPE LOADER STSTEM
Raw material and finished workpiece is transferred by conveyors. Compact built-in loader system save occupied space, lower operating cost and improve the machining efficiency.
