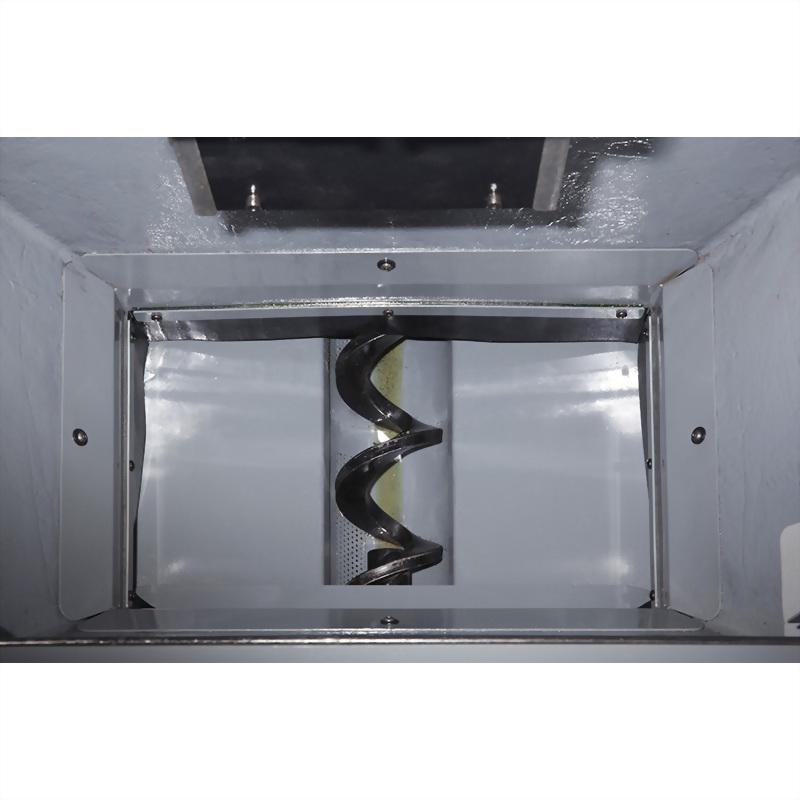

GX-100
Compact CNC Lathe for Automatic Machining
| ITEM/MODEL | GX-100 | |
| Controller | FANUC 0i-T | |
| CAPACITY | ||
| Max. Turning Diameter(SP1) | mm | 50 |
| Max. Turning Diameter(SP2) | mm | 50 |
| Max. Turning Length | mm | 60 |
| Guide way type | Linear | |
| SPINDLE 1 | ||
| Spindle Nose | ASA | A2-5 |
| Chuck Diameter | inch | 5 |
| Bar Capacity | mm | 30 |
| Spindle Speed | rpm | 6000 |
| Spindle Motor Power(Cont. /30min) | kW | 5.5/7.5 |
| SPINDLE 2 | ||
| Spindle Nose | ASA | A2-5 |
| Chuck Diameter | inch | 5 |
| Bar Capacity | mm | 30 |
| Spindle Speed | rpm | 6000 |
| Spindle Motor Power(Cont. /30min) | kW | 5.5/7.5 |
| TRAVELS | ||
| X-axis Travel | mm | 210 |
| Z-axis Travel | mm | 310(±155) |
| FEEDS | ||
| X-axis Rapid Traverse Rate | m/min | 18 |
| Z-axis Rapid Traverse Rate | m/min | 24 |
| TURRET | ||
| Tooling system | Gang | |
| Turret driven type | - | |
| Square Tool Shank Size | mm | 20 |
| Round Tool Shank Size | mm | 25 |
| Max. Rotary Tool Speed | rpm | - |
| Rotary Tool power | kW | - |
| DIMENSIONS | ||
| Machine dimension L x W x H | m | 2.7 x 2.0 x 2.4 |
| Machine Weight | kg | 3200 |
| Loader | ||
| Material dimension | ||
| Diameter | mm | 10~50 |
| Length | mm | 20~60 |
| Weight (One side) | kg | 0.5 |
| Traverse axis:Z | ||
| Stroke | mm | 400 |
| Rapid traverse rate | m/min | 84 |
| Vertical axis:Y | ||
| Stroke | mm | 500 |
| Rapid traverse rate | m/min | 84 |
| NO. | STANDARD ACCESSORIES | NO. | OPTIONAL ACCESSORIES |
| 1 | Fanuc 0i-T controller | 1 | Upgrade to 15" Colored LCD monitor |
| 2 | Integrated loader | 2 | Collect chuck |
| 3 | Spindle air blow | 3 | Oil mist collector |
| 4 | Rigid tapping | 4 | Oil-coolant skimmer |
| 5 | Heat exchanger for electric cabinet | 5 | Air cooler for electric cabinet |
| 6 | 10.4" Colored LCD monitor | 6 | Transformer |
| 7 | Lubrication system | 7 | CE version |
| 8 | 4-bar coolant system | 8 | CTS + Spindle air blow system |
| 9 | Three-color working light | 9 | Gripper blank |
