ITEM/MODEL
|

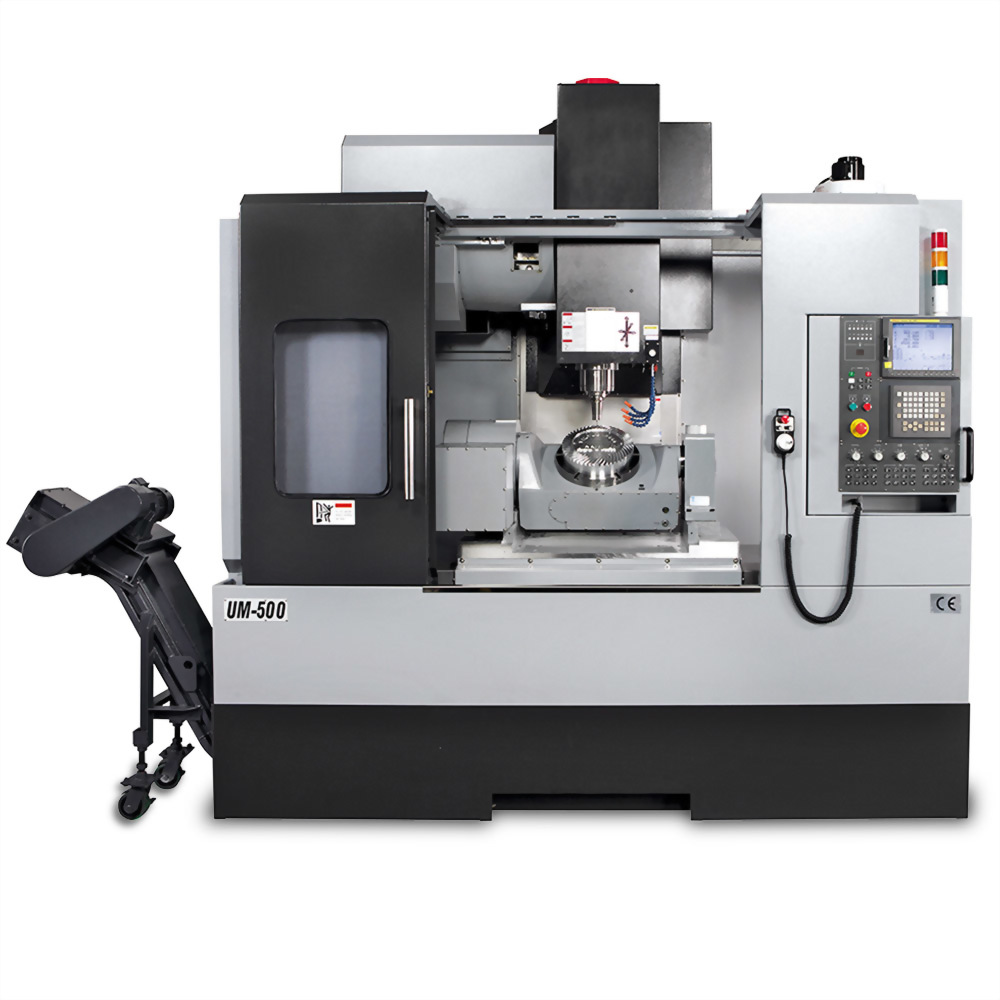

UM-500
|
|
Controller
|
FANUC 0i-M
|
|
SPINDLE
|
|
Spindle speed
|
rpm
|
12000 (15000)
|
|
Spindle nose taper
|
BT40
|
|
Bearing
inner diameter
|
mm
|
70
|
|
Drive system
|
Direct
|
|
TRAVELS
|
|
X-axis travel
|
mm
|
1000
|
|
Y-axis
travel
|
mm
|
650
|
|
Z-axis
travel
|
mm
|
550
|
|
A-axis
travel
|
degree
|
-120 / +30
|
|
C-axis
travel
|
degree
|
360
|
|
TABLE
|
|
Max. speed of rotary axis
(C-axis)
|
rpm
|
16.6
|
|
Max.
speed of tilting axis (A-axis)
|
rpm
|
11.1
|
|
Max.
table loading at 0°
|
kg
|
300
|
|
Max.
table loading at 90°
|
kg
|
250
|
|
Spindle
nose to table
|
mm
|
50~600
|
|
Table
dimension
|
mm
|
Ø500
|
|
Max.
workpiece size
|
mm
|
Ø500 x 300
|
|
T-slot
size
|
mm
|
14
|
|
FEED RATES
|
|
X-axis Rapid Traverse
Rate
|
m / min
|
30
|
|
Y-axis
Rapid Traverse Rate
|
m / min
|
30
|
|
Z-axis
Rapid Traverse Rate
|
m / min
|
30
|
|
Cutting
feed rate
|
m / min
|
12
|
|
Ball
screw diameter (X/Y/Z)
|
mm
|
45/45/45
|
|
Guideway bearing type
|
Roller
|
|
AUTOMATIC TOOL
CHANGE SYSTEM
|
|
Tool magazine capacity
|
pcs
|
24(32/40)
|
|
Max. tool
weight
|
kg
|
7
|
|
Max. tool
diameter
|
mm
|
75
|
|
Max. tool
diameter without adjacent tools
|
mm
|
150
|
|
Method of tool exchange
|
Arm type
|
|
Max. tool
length
|
mm
|
300
|
|
MOTORS
|
|
Spindle motor power(Cont.
/ 30min)
|
kW
|
7.5 / 11
|
|
X/Y/Z
feed motor
|
kW
|
4/4/7
|
|
Coolant
pump motor(50Hz/60Hz)
|
kW
|
0.53+0.85/0.75+1.27
|
|
OTHERS
|
|
Air supply
|
kg/cm²
|
5.5
|
|
Machine
dimension L x W x H
|
m
|
3 x 2.2 x 3.2
|
|
Net
weight
|
kg
|
9000
|
|
|
|
|
