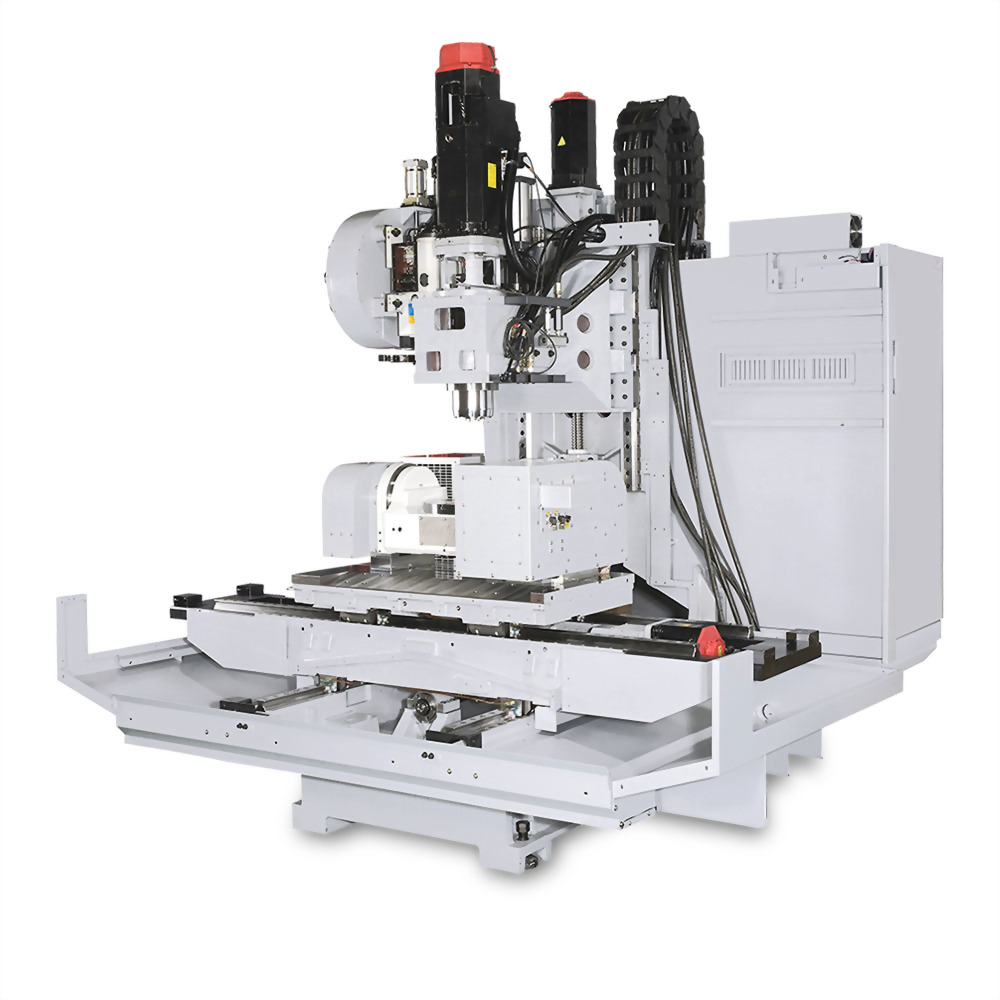

UM-350

5-Axis Vertical Machining Center

ITEM/MODEL UM-350
Controller FANUC 0i-M
SPINDLE
Spindle speed rpm 12000 (15000)
Spindle nose taper BT40
Bearing inner diameter mm 70
Drive system Direct
TRAVELS
X-axis travel mm 700
Y-axis travel mm 550
Z-axis travel mm 550
A-axis travel degree -120 / +30
C-axis travel degree 360
TABLE
Max. speed of rotary axis (C-axis) rpm 40
Max. speed of tilting axis (A-axis) rpm 33.3
Max. table loading at 0° kg 200
Max. table loading at 90° kg 200
Spindle nose to table mm 40~540
Table dimension mm Ø350
Max. workpiece size mm Ø350 x 280
T-slot size mm 12
FEED RATES
X-axis Rapid Traverse Rate m / min 42
Y-axis Rapid Traverse Rate m / min 42
Z-axis Rapid Traverse Rate m / min 30
Cutting feed rate m / min 12
Ball screw diameter (X/Y/Z) mm 45/45/45
Guideway bearing type Roller
AUTOMATIC TOOL CHANGE SYSTEM
Tool magazine capacity pcs 24(32/40)
Max. tool weight kg 7
Max. tool diameter mm 75
Max. tool diameter without adjacent tools mm 150
Method of tool exchange Arm type
Max. tool length mm 300
MOTORS
Spindle motor power(Cont. / 30min) kW 7.5 / 11
X/Y/Z feed motor kW 3/3/4
Coolant pump motor(50Hz/60Hz) kW 0.53+0.85/0.75+1.27
OTHERS
Air supply kg/cm² 5.5
Machine dimension L x W x H m 2.7 x 2.2 x 3.2
Net weight kg 7500




NO. STANDARD ACCESSORIES NO. OPTIONAL ACCESSORIES
1 FANUC 0i-M controller + AICC II 1 Data server 2G
2 RJ-45 interface 2 Linear scale (Heidenhain)
3 Rigid tapping 3 Contact tool setter
4 Heat exchanger for electric cabinet 4 Workpiece touch probe
5 10.4" Colored LCD monitor 5 Spindle speed upgrading
6 Lubrication system 6 Air cooler for electric cabinet
7 4-bar coolant system 7 Upgrade to 15" Colored LCD monitor
8 Cutter air blast 8 20 bar Coolant through spindle system
9 Spray gun 9 Oil-coolant skimmer
10 Three-color warning light 10 Oil mist collector
11 Spindle oil cooling system 11 Auto door
12 Chain type chip conveyor + chip cart
13 Transformer
14 CE version
