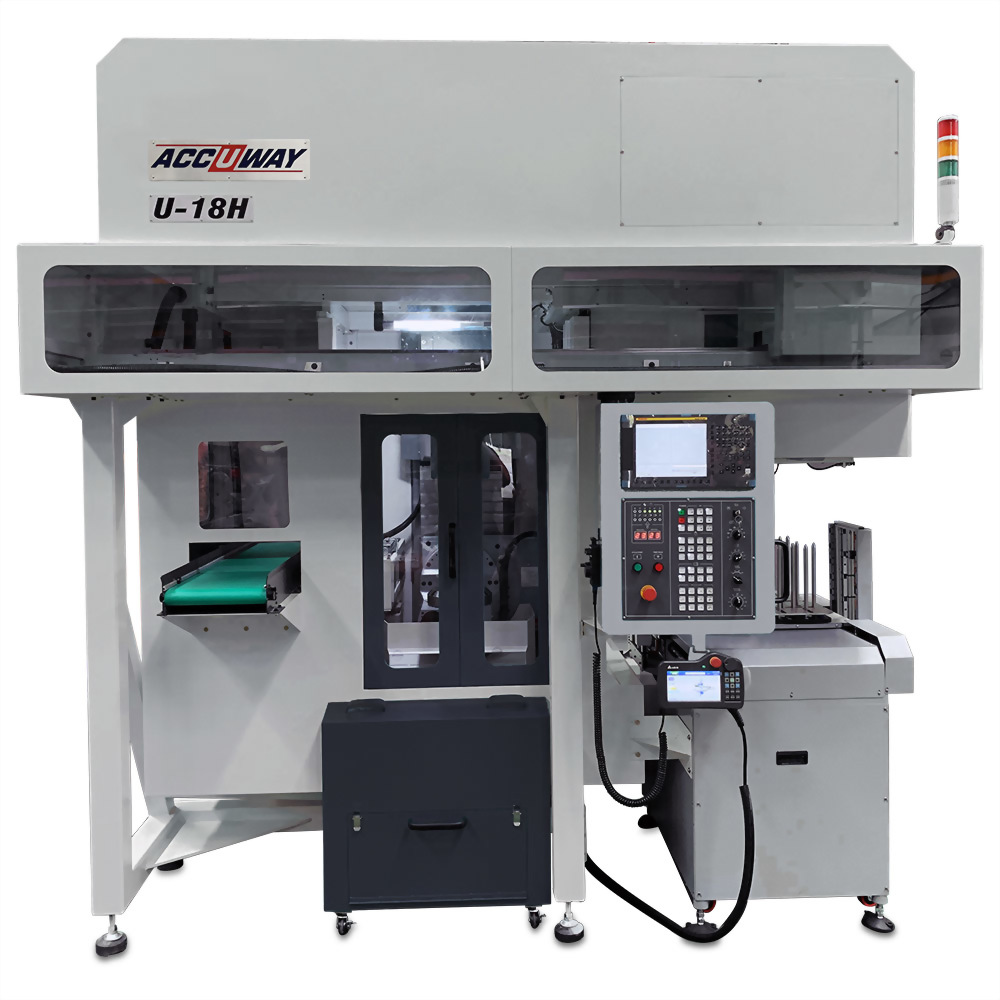

U-18H
5-Axis Vertical Machining Center
| ITEM/MODOL | U-18H | |
| Controller | FANUC 0i-M | |
| SPINDLE | ||
| Spindle speed | rpm | 60,000 |
| Spindle nose | φ6 | |
| Drive system | Direct | |
| TRAVELS | ||
| X-axis travel | mm | -5 ~ +50 |
| Y-axis travel | mm | -10 ~ +150 |
| Z-axis travel | mm | 300 |
| A-axis travel | degree | -30 / +120 |
| C-axis travel | degree | 360 |
| TABLE | ||
| Max. speed of rotary axis (C-axis) | rpm | 62.5 |
| Max. speed of tilting axis (A-axis) | rpm | 40 |
| Max. table loading at 0° | kg | 60 |
| Max. table loading at 90° | kg | 60 |
| Spindle nose to table | mm | 58~358 |
| Table dimension | mm | Ø200 |
| Max. workpiece size | mm | Ø200 x 200 |
| T-slot size | mm | 12 |
| FEED RATES | ||
| X-axis Rapid Traverse Rate | m / min | 48 |
| Y-axis Rapid Traverse Rate | m / min | 48 |
| Z-axis Rapid Traverse Rate | m / min | 48 |
| Cutting feed rate | m / min | 12 |
| Ball screw diameter (X/Y/Z) | mm | 32/32/32 |
| Guideway bearing type | Ball | |
| MOTOR | ||
| Spindle motor power(Cont. / 30min) | kW | 1.2 |
| X/Y/Z feed motor | kW | 3/3/4 |
| Coolant pump motor(50Hz/60Hz) | kW | 0.53+0.85/0.75+1.27 |
| OTHERS | ||
| Air supply | kg/cm² | 5.5 |
| Machine dimension L x W x H | m | 2.8 x 2.5 x 3 |
| Net weight | kg | 3500 |
