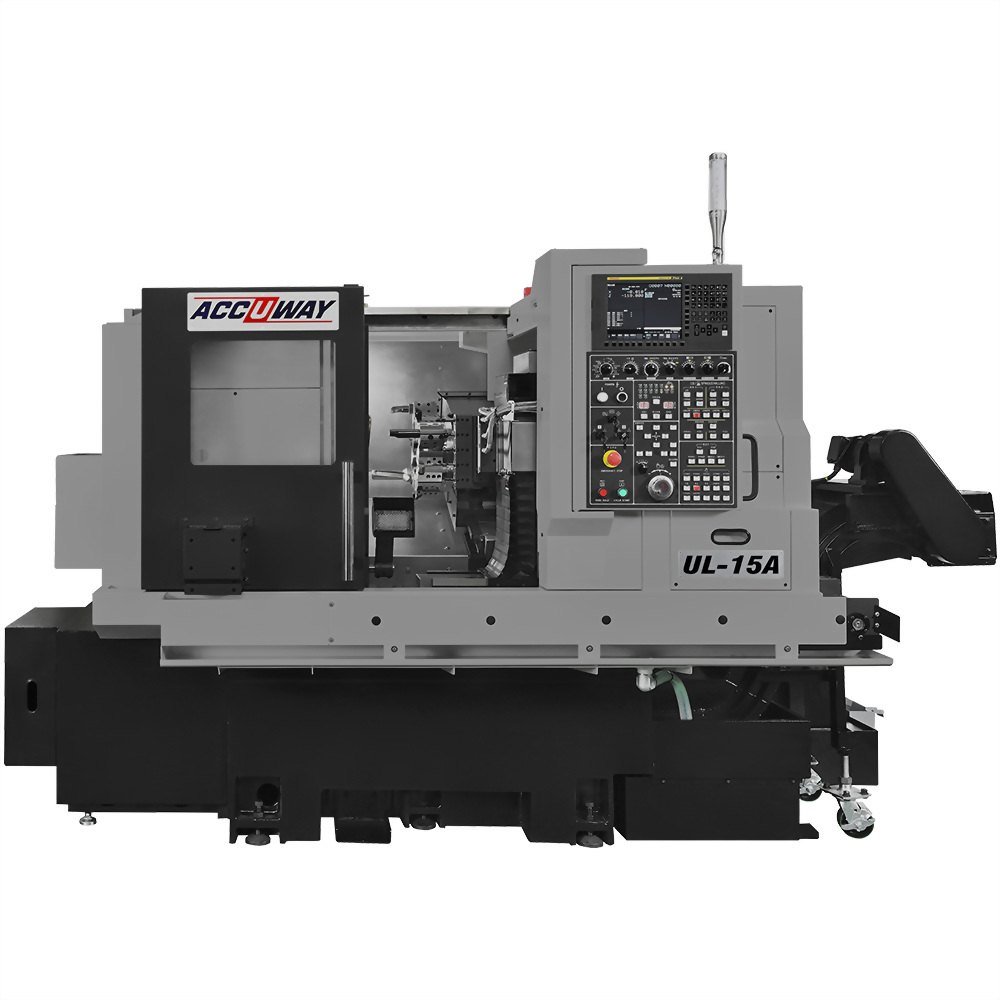

UL-15A
Two Turret Flat Bed CNC Turning Center
| ITEM/MODEL | UL-15A | |
| Controller | FANUC 0i-TF | |
| CAPACITY | ||
| Swing over bed | mm | 455 |
| Swing over saddle | mm | 260 |
| Max. turning diameter | mm | 260 |
| Max. turning length | mm | 250 |
| SPINDLE | ||
| Spindle nose taper | ASA | A2-5 |
| Chuck | CK42 Collet Chuck | |
| Bar capacity | mm | 44 |
| Spindle speed | rpm | 6000 |
| Spindle motor power(Cont. / 30min) | kW | 11/15 |
| TRAVELS | ||
| X1/X2-axis travel | mm | 175/260 |
| Z1/Z2-axis travel | mm | 350/260 |
| Y-axis travel | mm | - |
| FEED RATES | ||
| X1/X2-axis Rapid Traverse Rate | m/min | 20/12 |
| Z1/Z2-axis Rapid Traverse Rate | m/min | 20/12 |
| Y-axis Rapid Traverse Rate | m/min | - |
| TURRET | ||
| Tooling system | BOT+ Gang type | |
| Turret driven type | Hydraulic | |
| Number of tools | station | 8+5 |
| Square tool shank size(T1) | mm | 25 |
| Round tool shank size(T1/T2) | mm | 32/25 |
| Max. Rotary Tool Speed | rpm | - |
| Rotary Tool power | kW | - |
| DIMENSION | ||
| Machine dimension L x W x H | m | 3.1 x 1.75 x 1.85 |
| Net weight | kg | 3000 |
